Cisco 300-815 Practice Test - Questions Answers, Page 4

Add to Whishlist

List of questions

Question 31

Report Export Collapse

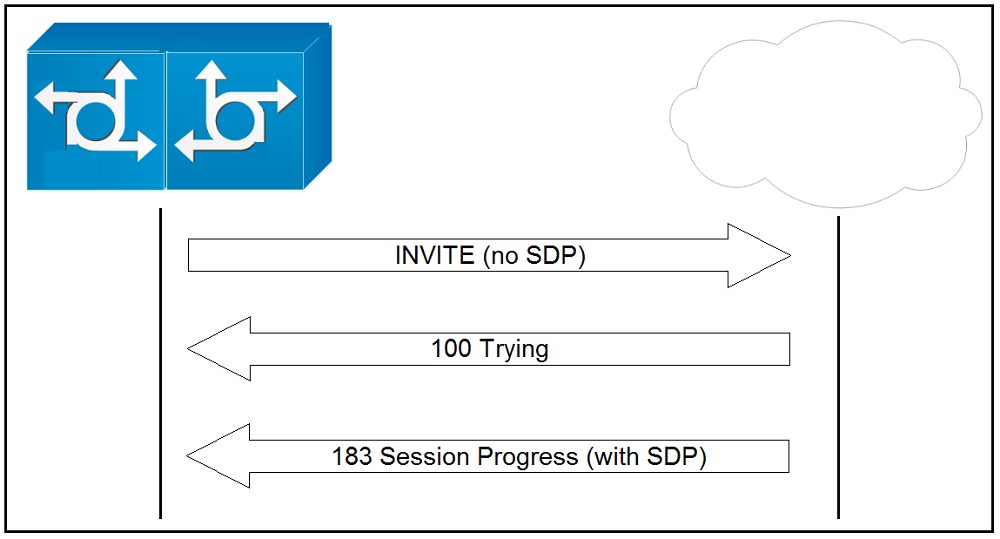

Refer to the exhibit.

Cisco 300-815 image Question 31 114935 10102024232831000000

An administrator is troubleshooting why users are not hearing audio when dialing long distance numbers across their Cisco Unified Border Element. The customer's carrier has a requirement that dialing long distance requires an access code to be entered. Looking at the exhibit, what two actions can be taken to correct signaling? (Choose two.)

Enable PRACK.

Enable PRACK.

Enable Early Offer on the Cisco Unified Border Element.

Enable Early Offer on the Cisco Unified Border Element.

Enable the supplementary-service media-renegotiate command.

Enable the supplementary-service media-renegotiate command.

Enable Media Flow Around

Enable Media Flow Around

Enable Mid-Call Signaling Consumption.

Enable Mid-Call Signaling Consumption.

Suggested answer: A, B
asked 10/10/2024
Marcos Losa Torviso
57 questions

Question 32

Report Export Collapse

Which IOS command creates a SIP-enabled dial peer?

voice dial-peer 20 sip

voice dial-peer 20 sip

dial-peer voice 20 voip

dial-peer voice 20 voip

dial-peer voice 20 pots

dial-peer voice 20 pots

dial peer voice 20 sip

dial peer voice 20 sip

Suggested answer: B
asked 10/10/2024
Alexandru Ouatu
50 questions

Question 33

Report Export Collapse

A user in location X dials an extension at location Y. The call travels through a QoS-enabled WAN network, but the user experiences choppy or clipped audio. What is the cause of this issue?

missing Call Admission Control

missing Call Admission Control

codec mismatch

codec mismatch

ptime mismatch

ptime mismatch

phone class of service issue

phone class of service issue

Suggested answer: A
asked 10/10/2024
Yosra Chabchoub
45 questions

Question 34

Report Export Collapse

An engineer must route all SIP calls in the form of <user>@example.com to the SIP trunk gateway corporate local. Which two SIP route patterns can be used to accomplish this task? (Choose two.)

*@example.com

*@example.com

gateway.corporate.local

gateway.corporate.local

example.com

example.com

*.*

*.*

Suggested answer: B, E
asked 10/10/2024
TAMPO DARKOI
47 questions

Question 35

Report Export Collapse

Which two statements are correct with respect to the Client Matter Code setting in the route pattern configuration? (Choose two.)

The Client Matter Code feature does not support overlap sending because the Cisco Unified CM cannot determine when to prompt the user for the code.

The Client Matter Code feature does not support overlap sending because the Cisco Unified CM cannot determine when to prompt the user for the code.

If you check the Allow Overlap Sending check box, the Require Client Matter Code check box becomes disabled.

If you check the Allow Overlap Sending check box, the Require Client Matter Code check box becomes disabled.

If you check the Allow Overlap Sending check box, you can also check the Require Client Matter Code check box.

If you check the Allow Overlap Sending check box, you can also check the Require Client Matter Code check box.

The Client Matter Code feature does support overlap sending because the Cisco Unified Communications Manager can determine when to prompt the user for the code.

The Client Matter Code feature does support overlap sending because the Cisco Unified Communications Manager can determine when to prompt the user for the code.

The Client Matter Code has the option to configure Authorization Level such as in the Forced Authorization Code.

The Client Matter Code has the option to configure Authorization Level such as in the Forced Authorization Code.

Suggested answer: A, B
asked 10/10/2024
Leon Duke
43 questions

Question 36

Report Export Collapse

A network engineer designs a new dial plan and wants to block a certain range of numbers (8135100 through 8135105). What is the most specific route pattern that can be configured to block only the numbers in this range?

813510[012345]

813510[012345]

813510[12345]

813510[12345]

813510[^0-5]

813510[^0-5]

81XXXXX

81XXXXX

Suggested answer: A
asked 10/10/2024
Blake Heffelfinger
43 questions

Question 37

Report Export Collapse

Which two descriptions of the Standard Local Route Group deployment are true? (Choose two.)

can be associated under the route group

can be associated under the route group

can be associated only under the route list

can be associated only under the route list

chooses the route group that is configured under the device pool of the calling-party device

chooses the route group that is configured under the device pool of the calling-party device

chooses the route group that is configured under the device pool of the called-party device

chooses the route group that is configured under the device pool of the called-party device

can be assigned directly to the route pattern

can be assigned directly to the route pattern

Suggested answer: B, C
asked 10/10/2024
Abigail Dodson
42 questions

Question 38

Report Export Collapse

Refer to the exhibit.

Cisco 300-815 image Question 38 114942 10102024232831000000

An engineer configures Cisco Unified Border Element to connect the enterprise VoIP network with a SIP telephony provider. Calls are not working in either direction. What must be configured in the dial peer 1 to fix the issue?

answer-address 555 ........

answer-address 555 ........

codec g729

codec g729

session-protocol sipv2

session-protocol sipv2

incoming called number 555.......

incoming called number 555.......

Suggested answer: C
asked 10/10/2024
Stefan Denić
32 questions

Question 39

Report Export Collapse

After configuring a Cisco CallManager Express with Cisco Unity Express, inbound calls from the PSTN SIP trunk receive a ring tone for 20 seconds and then a busy signal instead of voicemail. Which configuration fixes this problem?

Router(config)# voice service voip Router(conf-voi-serv)#allow-connections h323 to h323

Router(config)# voice service voip Router(conf-voi-serv)#allow-connections h323 to h323

Router(config)#dial-peer voice 2 voip Router(config-dial-peer)#no vad

Router(config)#dial-peer voice 2 voip Router(config-dial-peer)#no vad

Router(config)# voice service voip Router(conf-voi-serv)#allow-connections voice-mail mod

Router(config)# voice service voip Router(conf-voi-serv)#allow-connections voice-mail mod

Router(config)# voice service voip Router(conf-voi-serv)#no supplementary-service sip moved-temporarily

Router(config)# voice service voip Router(conf-voi-serv)#no supplementary-service sip moved-temporarily

Suggested answer: D
asked 10/10/2024
Michael Weaver
25 questions

Question 40

Report Export Collapse

An engineer must configure a secure SIP trunk with a remote provider, with a specific requirement to use port

5065 for inbound and otubound traffic. Which two items must be configured to complete this configuration? (Choose two.)

Incoming Port in SIP Information section of the SIP Trunk configuration.

Incoming Port in SIP Information section of the SIP Trunk configuration.

Incoming Port in Security Information of the SIP Profile configuration.

Incoming Port in Security Information of the SIP Profile configuration.

Destination Port in SIP Information section of the SIP Trunk configuration

Destination Port in SIP Information section of the SIP Trunk configuration

Incoming Port in SIP Trunk Security Profile configuration

Incoming Port in SIP Trunk Security Profile configuration

Destination Port in SIP Trunk Security Profile configuration

Destination Port in SIP Trunk Security Profile configuration

Suggested answer: C, D
asked 10/10/2024
Noor Amy
45 questions
Total 219 questions
