Refer to the exhibit.

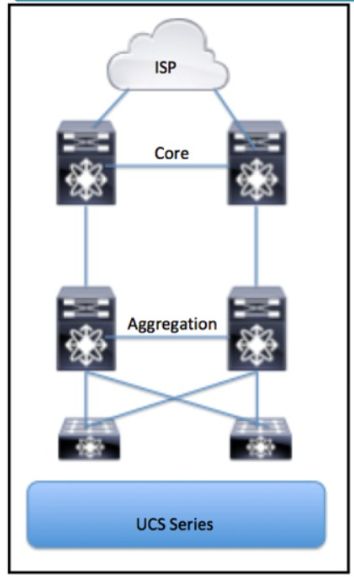

Refer to the exhibit. Which part of the diagram will host OpenStack components?
Aggregation
UCS Series
Access
Core
Refer to the exhibit.

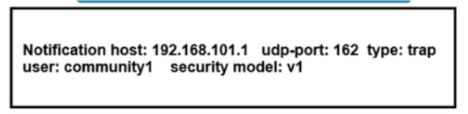

Refer to the exhibit. Over the last few months. ISP A has doubled Its user base. The IT Director asked the engineering team to monitor memory consumption and buffer statistics on all P and PE devices In the MPLS core. Most devices have CPU usage of 70% or more, so the solution must be targeted and secure. Which two commands must the engineering team implement on P and PE devices to meet these requirements? (Choose two.)
snmp-server host 192.168.101.1 version 3 auth community1 memory
snmp-server enable traps memory bufferpeak
snmp-server host 192.168.101.1 version 2c community1 memory
snmp-server host 192.168.101.1 version 1 community1 auth memory
snmp-server enable snmp-traps community1 bufferpeak
Refer to the exhibit.

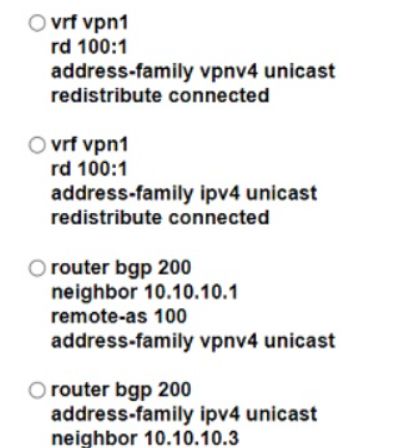

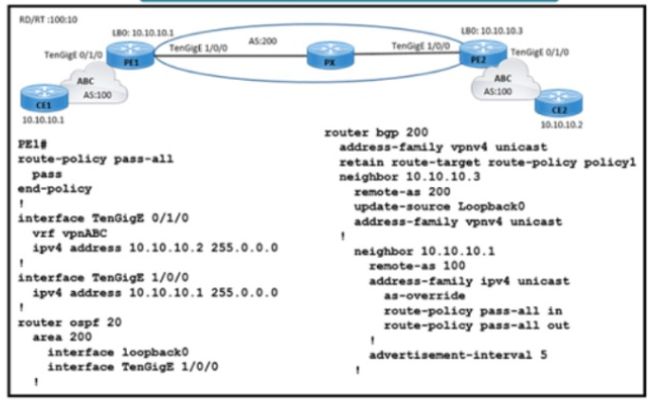

Refer to the exhibit. A service provider engineer Is configuring the connection between CE1 and CE2. AS 200 of the service provider and AS 100 of enterprise ABC should connect using BGP. The engineer already completed the configuration of VRF RT 100:10 of enterprise ABC. Which configuration must the engineer apply on PE1 to meet the requirement?
Option A
Option B
Option C
Option D
Refer to the exhibit.

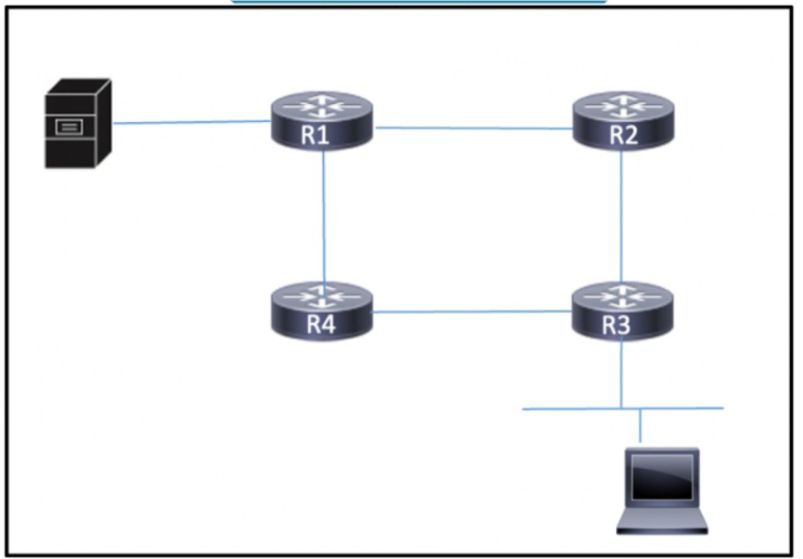

Refer to the exhibit. A host connected to R3 must connect with a server on R1 that provides critical, time-sensitive dat
a. Traffic between the host and server must always be given bandwidth to traverse the links when they are congested, with other traffic being dropped. How must the network engineer implement a QoS strategy with classification to ensure that the traffic is given the appropriate bandwidth?
Implement FIFO to guarantee that the server traffic is sent first while other traffic is queued.
Implement policing to rate-limit noncritical traffic that exceeds designated thresholds.
Implement traffic shaping to delay noncritical traffic when the link is congested.
Implement strict priority to guarantee bandwidth for the server traffic.
How is RSVP used with MPLS traffic engineering tunnels?
It assigns a tag to a packet as it travels through the tunnel.
It removes and reassigns an MPLS label when the packet enters the tunnel.
It reduces the CPU burden when a packet travels through the tunnel.
It reserves bandwidth along the path of the tunnel.
Refer to the exhibit.

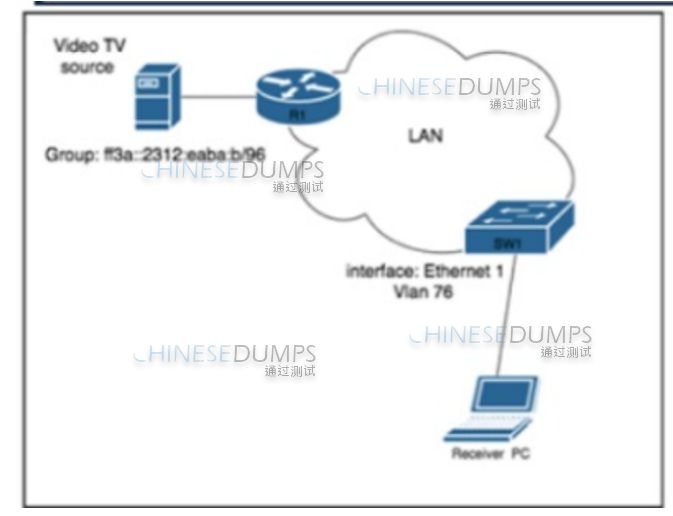

Refer to the exhibit. A network engineer working for a telecommunication company with an employee ID: 4602:62:646 is configuring security controls for the IPv6 multicast group, which is used for video TV. The solution from the engineer should reduce network usage and minimize the leave latency for the user that is connected to VLAN 76. Which two configurations meet this goal? (Choose two.)
A)
B)
C)
D)
E)
Option A
Option B
Option C
Option D
Option E
Which is the benefit of implementing model-driven telemetry in a service provider environment?
It reduces the number of network monitoring tools that are necessary to verify device statistics.
It increases the efficiency of SNMP by pulling system data to requesting servers.
It reduces or eliminates the need to monitor Layer 2 traffic between switches.
It uses reliable transport to push Information to network monitoring tools
Refer to the exhibit.

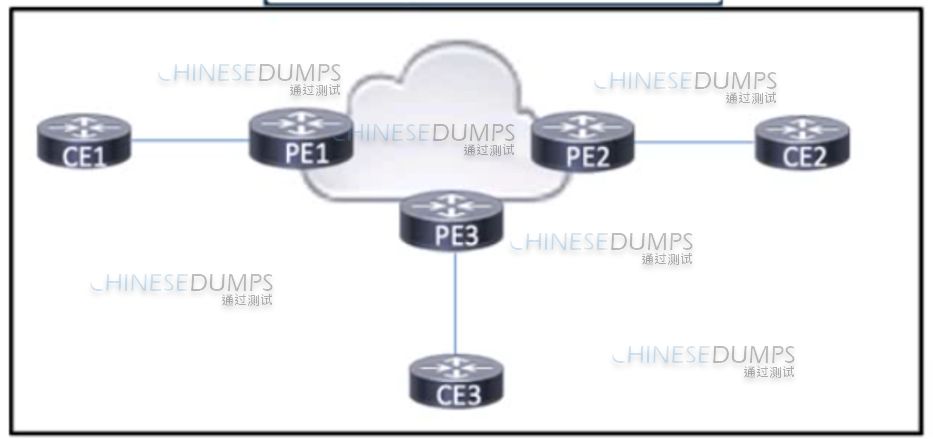

Refer to the exhibit. A large enterprise has multiple branch offices that span several geographic regions. The enterprise runs MPLS within the core to propagate VPNv4 routes using BGP. After a recent series of DDoS attacks disrupted the network, a network engineer has been asked to reconfigure BGP to help mitigate future attacks. Which configuration must the engineer apply?
A)
B)
C)
D)
Option A
Option B
Option C
Option D
