Which attribute contains an XMPP stanza?
iq
message
type
presence
A customer wants to deploy Cisco Jabber Phone Mode with contacts. Which two configurations are needed to accomplish this goal? (Choose two)
Add the Application Client Users role to the Cisco UCM end users.
Remove the IM and Presence servers from the Cisco UCM service profile.
Disable Instant Messaging on IM and Presence.
Import Contacts.xml into Jabber.
Enable Cisco UCM end-users for IM and Presence.
Refer to the Exhibit.
Which command is required to allow this media resource to handle Video Media streams?
maximum sessions hardware 50
video codec h264
codec pass-through
associate application Cisco Unified Border Element

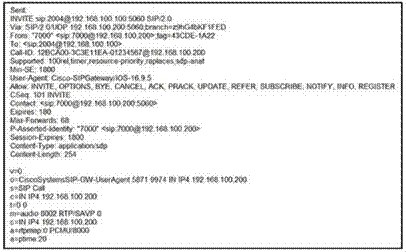

Refer to the exhibit.
Calls to Cisco Unity Connection are failing across Cisco Unified Border Element when callers try to select a menu prompt. Why is this happening and how is it fixed?
Cisco Unified Border Element is not sending any support for DTMF. DTMF configuration must be added to the appropriate dial peer.
The Cisco Unity Connection Call Handler is configured for a -Release to Switch" transfer type.
Transfers must be disabled for the Cisco Unity Connection Call Handler.
Cisco Unity Connection is configured on G.729 only. Cisco Unity Connection must be reconfigured to support iLBC.
Cisco Unified Border Element is sending the incorrect media IP address. The IP address of the loopback interface must be advertised in the SDP.
Which datastore and protocol is used for saving back-up files within the Disaster Recovery System of Cisco UCM?
remote disk on a CIFS share
remote disk on the SFTP server
local disk on the Cisco UCM server
remote disk on an NFS share
An engineer troubleshoots a Cisco Jabber login problem on a Windows PC in the corporate network.
The login fails with the error message "Cannot find your services automatically. Click advanced settings to set up manually.'' Which action should the engineer take first?
Verify the username and password and try again
Verify whether the cup-xmpp certificates are valid.
Perform a manual DNS lookup of SRV record _collab-edge._tls.domain.com.
Perform a manual DNS lookup of SRV record _cisco-uds.tcp.domain.com.

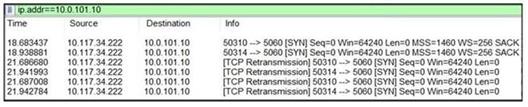

Refer to the exhibit.
An administrator is attempting to register a SIP phone to a Cisco UCM but the registration is failing.
The IP address of the SIP Phone is 10.117.34 222 and the IP 1 address of the Cisco UCM is 10.0.101.10. Pings from the SIP phone to the Cisco UCM are successful. What is the cause of this issue and how should it be resolved?
The certificates on the SIP phone are not trusted by the Cisco UCM. The SIP phone must generate new certificates.
DNS lookup for the Cisco UCM FQDN is failing. The SIP phone must be reconfigured with the proper DNS server.
An NTP mismatch is preventing connection of the TCP session between the SIP phone and the Cisco UCM. The SIP phone and Cisco UCM must be set with identical NTP sources.
An network device is blocking TCP port 5060 from the SIP phone to the Cisco UCM. This device must be reconfigured to allow traffic from the IP phone.
Which two approaches are taken to implement CAC within Cisco UCM in full-mesh topology?
(Choose two.)
Device Pool
RSVP-enabled locations
location-based CAC
Audio Codec Preference List
physical location
Which two steps should be taken to provision after the Self-Provisioning feature was configured for end users?
Dial the self-provisioning IVR extension and associate the phone to an end user.
Plug the phone into the network.
Ask the Cisco UCM administrator to associate the phone to an end user.
Enter settings menu on the phone and press *,*,# (star, star, pound).
Dial the hunt pilot extension and associate the phone to an end user.
On a cisco catalyst switch which command is required to send CDP packets on a switch port that configures a cisco IP phone to transmit voice traffic in 802.1q frames tagged with the voice VLAN ID 221?
Device(config-if)# switchport access vlan 221
Device(config-if)# switchport trunk allowed vlan 221
Device(config-if)# switchport vlan voice 221
Device(config-if)# switchport voice vlan 221
