What are two differences between media flow-around and media flow-through on cisco unified Border element? (Choose two.)
When using media flow-through, the call signaling and media are passed through the Cisco Unified Border Element
When using media flow-through, the call signaling goes through the Cisco Unified Border Element, but media is not passed through it.
When using media flow-around. the call signaling goes through the Cisco Unified Border Element, but media is not passed through it
When using media flow-around, both call signaling and media do not go through the Cisco Unified Border Element
When using media flow-through, call signaling goes through the Cisco Unified Border Element but media does not
An administrator must configure the local route group feature on cisco UCM. Which step will enable this feature?
For each route list configure a route group to use as a Local Route Group.
For each route pattern, select the Local Route Group as the destination.
For each route group, check the box for the Local Route Group feature.
For each device pool. configure a route group to use as a Local Route Group for that device pool
In the cisco expressway solution, which two features does mobile and Remote access provide?
(Choose two)
VPN-based enterprise access for a subset of Cisco Unified IP Phone models
Secure reverse proxy firewall travelsal connectivity
the ability to register third-party SIP or H.323 devices on Cisco UCM without requiring VPN
the ability of Cisco IP Phones to access the enterprise through VPN connection
the ability for remote users and their devices to access and consume enterprise collaboration applications and services
AN engineer is implementing toll fraud prevention for incoming calls cluster-wide on cisco UCM.
What is the first step to configure this feature?
Set service parameter 'Block OffNet to OffNet Transfer' to False
Configure blocking for inbound calls based on caller ID.
Set service parameter "System Remote Access Blocked Numbers' to True
Set service parameter 'Block OffNet To OffNet Transfer' to True
User A Calls user. The call gets connected, but the quality is bed. What are two reasons for this issue?
(Choose two)
Incorrect partition
No region relationship
Network congestion
Incorrect QoS
Incompatible codec

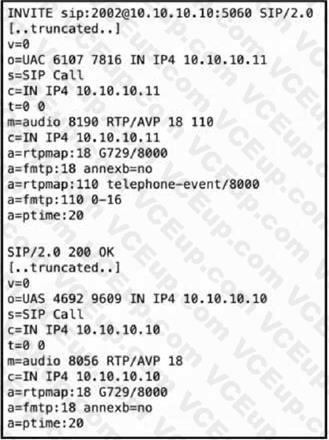

Refer to the exhibit.
The SOP offer/answer has been completed successfully but there is no DTMF when users press keys.
What is the cause of the issue?
DTMF was negotiated properly in these messages.
Payload type 110 was negotiated rather than type 101.
G.729 rather than G.711ulaw was negotiated.
DTMF was not negotiated on the call.
What dialled numbers match this Cisco UCM route pattern?
1[23]XX
1200 through 1300 on1ly
1200 through 1399 only
12300 through 12399 only
1230 through 1239 only
Refer to the exhibit. A customer wants the SIP 200 OK shown to advertise codecs in the following order:

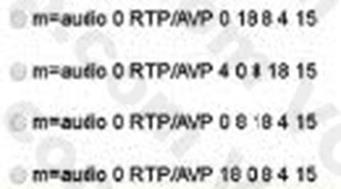

After correcting the codec preferences. What should the audio payload show in the SIP Traces?
Option A
Option B
Option C
Option D
Where is urgent priority enabled to bypass the T302 timer?
route partition
CTI port
directory number
transformation pattern
A collaboration engineer must optimize the dial plan within Cisco UCM. There are multiple remote sites. And each site has its own route patterns and local gateways. What should the engineer do on the cisco UCM to optimize the dial plan?
Configure a Standard Local Route Group to use a single route pattern for all calls within the cluster.
Create a centralized dial plan with a Cisco UCM Session Management Edition cluster or a Cisco gatekeeper.
Implement ILS with GDPR so the dial plan can dynamically replicate across clusters.
Leverage Cisco UCM Express as SRST so the phones can have more features of each remote site
