Refer to the exhibit.

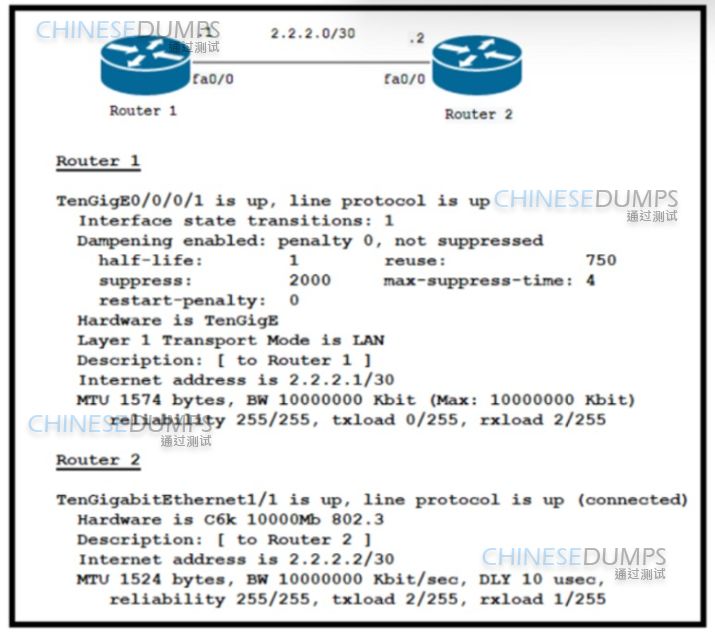

Refer to the exhibit. Router 1 and Router 2 were installed in the data center. Router 1 is the core router in the network, but it fails to establish an OSPF peering with Router 2. and customer traffic is unable to pass. Router 1 also reports an increase in CPU and memory usage. However, the CPU for R2 is stable. Which action resolves this issue?
Disable Cisco Express Forwarding on Router 2.
Change the transport mode to WAN on Router 1.
Change the MTU to 1524 on Router 1.
Enable MPLS on Router 2.
What is the primary role of a BR router in a 6rd environment?
It provides connectivity between end devices and the IPv4 network.
It embeds the IPv4 address in the 2002::/16 prefix.
It connects the CE routers with the IPv6 network.
It provides IPv4-in-IPv6 encapsulation
Refer to the exhibit.

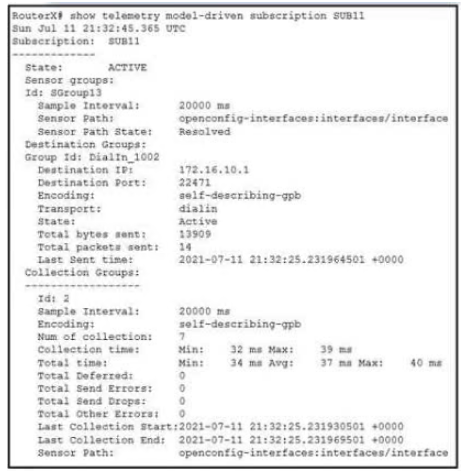

An engineer ran this show telemetry command to view subscription SUB11 on RouterX. The engineer then decided that RouterY should provide the same output lor sensor group SGroup13 as RouterX. The engineer cannot access RouterX to copy its configuration No access lists on the router block user access Which configuration must the engineer apply on RouterY to provide the same output from the show telemetry command?
RouterY(config)# telemetry model-driven
RouterY(config-model-driven)# subscription SGroup13
RouterY(config-model-driven-subs)# sensor-group-id SGroup13 sample-interval 20000
RouterY(config)# telemetry model-driven
RouterY(config-model-driven)# sensor-group SGroup13
RouterY(config-model-driven-snsr-grp)# sensor-path openconfig-interfaces:interfaces/interface
RouterY(config)# telemetry model-driven
RouterY(config-model-driven)# destination-group SUB11
RouterY(config-model-driven-dest)# address family ipv4 172.16.10.1 port 22471
RouterY(config-model-driven-dest-addr)# encoding self-describing-gpb
RouterY(config-model-driven-dest-addr)# protocol tcp
RouterY(config)# telemetry model-driven
RouterY(config-model-driven)# subscription SUB11
RouterY(config-model-driven-subs)# sensor-group-id SGroup13 sample-interval 20000
RouterY(config-model-driven-subs)# destination-id DGroup1
What are two features of stateful NAT64?
It provides 1: N translations, so it supports an unlimited number of endpoints
It provides 1:1 translation so it supports a limited number of end points
It requires the ipv6 hosts to use either DHCPv6 based address assignments or manual address assignments
It uses address overloading
It requires IPv4 translatable IPv6 address assignments
An engineer is configuring IEEE 802.1 ad on the access port on a new Cisco router. The access port handles traffic from multiple customer VLANs, and it is expected to mark all customer traffic to the same VLAN without dropping any traffic. Which configuration must the engineer apply?
A)
B)
C)
D)
Option A
Option B
Option C
Option D
Refer to the exhibit.

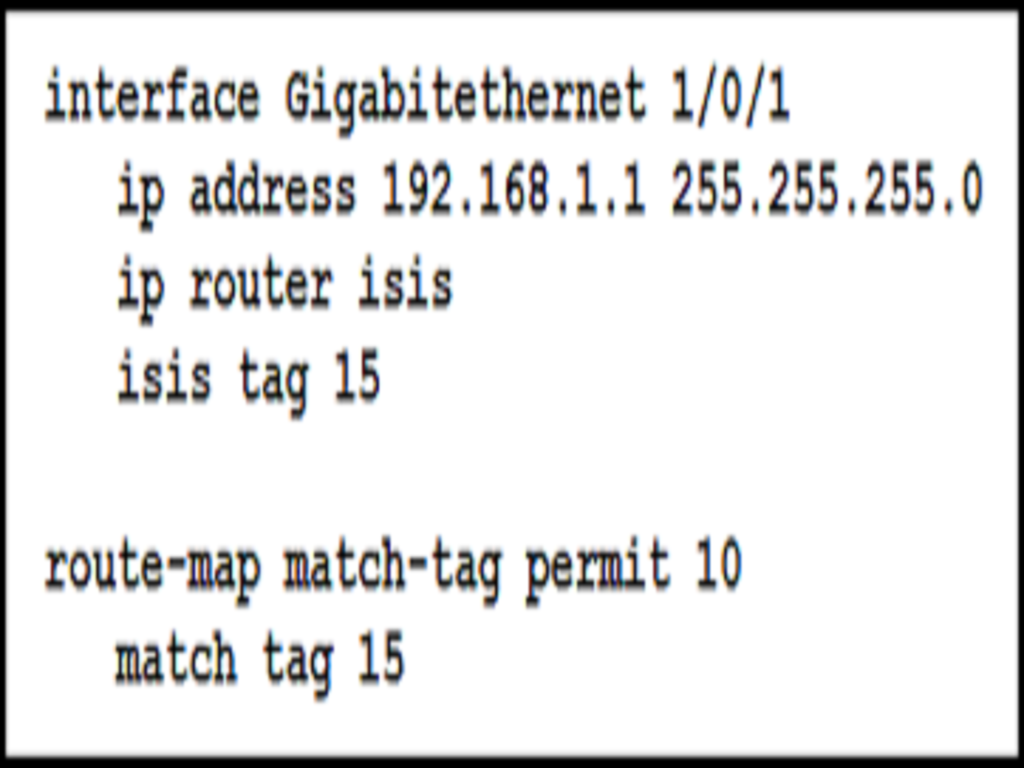

Refer to the exhibit. A large organization is merging the network assets of a recently acquired competitor with one of its own satellite offices in the same geographic area. The newly acquired network is running different routing protocol than the company's primary network. As part of the merger a network engineer implemented this route map Which task must the engineer perform to complete the Implementation?
Attach the route map to an IS-IS network statement to advertise the routes learned on this interface to IS-IS
Enable metric style wide to allow the use of extended metrics from the protocols
Attach the route map to the redistribution command to manipulate the routes as they are shared
Configure an additional route map sequence to override the implicit deny at the end of the route map
DRAG DROP
Drag and drop the characteristics from the left onto the corresponding radio splitting approaches on the right
Refer to the exhibit.

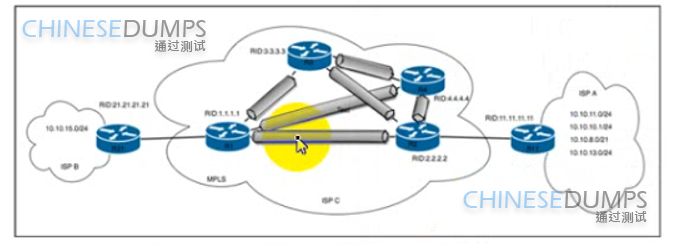

Refer to the exhibit An engineer at ISP C is configuring a new interconnection with ISPs A and B using the BGP protocol After the initial configuration the engineer noticed high memory usage and an abnormally large LIB table on router R2 Which two actions must the engineer take on R2 to minimize memory usage? (Choose two.)
Configure Extended ACL 101 with accepted prefixes.
Confiure the mpls idp neighbor 11.11.11.11 labels accept1 command.
Configure Standard ACL 1 with accepted prefixes.
Configure the mpls idp neighbor 1.1.1.1 labels accept 101 command.
Configure the mpls idp neighbor 21.21.21.21 labels accept 101 command.
Refer to the exhibit.

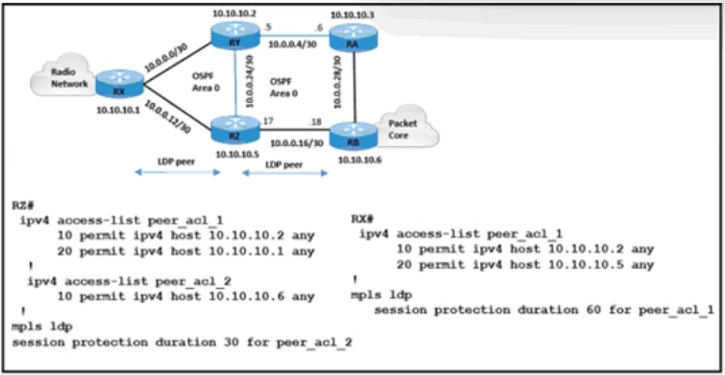

Refer to the exhibit. The radio network and packet core are using the route RX-RZ-RB to establish communication. The LDP session between 10.10.10.5 and 10.10.10.1 is experiencing link flapping at random intervals for 30-45 seconds each time. A network engineer must protect the LDP session and improve MPLS traffic convergence. Which action meets these requirements?
Enable IGP_LDP sysnc on RZ and RX
Add session protection duration 60 for peer_acl_1 under the MPLS LDP instance on RZ.
Attach peer_acl_1 in for session protection duration 1 on RX.
Configure Peer_acl_2 on RX and allow IP address 10.10.10.6 in LDP
In an EVPN operation, how does the PE determine and advertise Ethernet segment reachability?
The PE discovers the remote PEs in the EVI and builds a flood list linked with the EVI.
The PE discovers and shared routing information for the B-MAC addresses associated with local Ethernet segments.
The PE discovers other PEs in the same Ethernet segment and elects a DF.
The PE discovers remote ESIs and determines their redundancy mode.
