A user reports transfer failures from an IP phone for calls received from a PSTN to another PSTN number. What is a reason for these failures?
The incoming calling search space of the SIP trunk does not include the partition of the line in the IP phone.
The service parameter related to Offnet to Offnet call Transfer is set to TRUE.
The IP phone is configured with the Wrong region.
The gateway is configured with the wrong device pool.
A customer is deploying a SIP IOS gateway for a customer who requires that in-band DTMF relay is first priority and out-of-band DTMF relay is second priority. Which IOS entry sets the required priority?
dtmf-relay cisco-rtp
sip-notify dtmf-relay rtp-nte
dtmf-relay rtp-nte sip-notify
dtmf-relay sip-kmpl cisco-rtp
Refer to the exhibit.
This INVITE is sent to an endpoint that only supports G.729. what must be done for this call to succeed?
Noting; both sides support G.729.
Add a transcoder that supports G.711ualw and G.729.
ADD a media termination point that supports G.711ulaw and G.729.
Nothing; both sides support payload type.101.

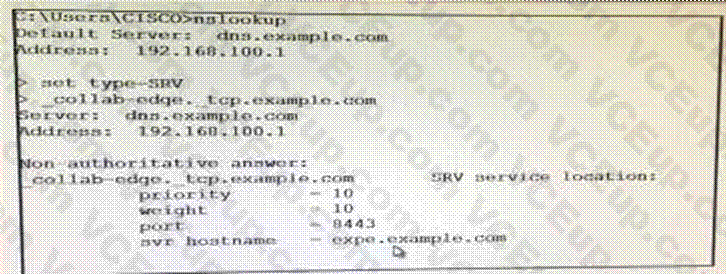

Refer to the exhibit.
You deploy Mobile and Remote Access for Jabber and discover that Jabber for Windows does not register to cisco Unified Communications Manager while outside of the office. What is a cause of this issue?
The DNS record should be created for _ cisco-uds._tcp example.com.
The DNS record should be changed from _collab-edge._tls example.com.
The DNS record type should be changed from SRV to A.
Server 4.2.2.2 is not a valid DNS server.
A customer has Cisco Unity Connection that is integrated with LDAP. As a unity connection administrator, you have received a request to change the first name for VM user. Where must the change be performed?
Cisco unity connection
Cisco IM and presence
Cisco Unified Communications Manager end user
Active directory
An engineer is configuring a BOT device for a Jabber user is Cisco Unified Communication Manager.
Which phone type must be selected?
Cisco Dual mode for Android
Cisco Unified Client services Framework
third-party SIP device
Cisco Dual Mode for iPhone
Which command in the MGCP gateway configuration defines the secondary Cisco Unified Communications Manager server?
ccm-manager redundant-host
Mgcp call-agent
Mgcpapp
ccm-manager fallback-mgcp
Which access control group is required on an end user to allow Jabber to do deskphone mode?
Standard CTI Enabled
Standard CTI Allow Reception of SRTP key Material
Allow control of device from CTI
Standard CTI Secure Connection
Refer to the exhibit.
A call is failing to establish between two SIP Devices. The Called device answer with this SDP. Which SDP parameter causes this issue?
The RTP port is set to 0.
The payload for G.711ulaw must be 18.
The media stream is set to sendonly.
The calling device did not offer a ptime value.
An engineer is designing a high availability and failover solution for two Cisco Unified Border Element routers. The first router (cube 1.abc.com) takes 60% of the calls and the second router (cube2 abc.com) takes 40% of the calls. Assume all DNS A records have been created. Which two SRV records are needed for a load balanced solution? (Choose two.)
_sip_udp.abc.com 60 IN SRV 1 60 cube1.abc.com
_sip_udp.abc.com 60 IN SRV 1 40 cube2.abc.com
_sip_udp.abc.com 60 IN SRV 60 1 cube1abc.com
_sip_udp.abc.com 60 IN SRV 2 60 cube1.abc.com
_sip_udp.abc.com 60 IN SRV 3 60 cube2.abc.com
