DRAG DROP
According to the QoS Baseline Model, drag and drop the applications from the left onto the correct Per-Hop Behavior values on the right.
DRAG DROP
Drag and drop the SNMPv3 message types from the left onto the corresponding definitions on the right.
Which configuration concept allows for high-availability on IM and Presence services in a UC environment?
IM and Presence subclusters (configured on Cisco UCM)
Presence Redundancy Groups (configured on Cisco Unified IM and Presence)
IM and Presence subclusters (configured on Cisco Unified IM and Presence)
Presence Redundancy Groups (configured on Cisco UCM)

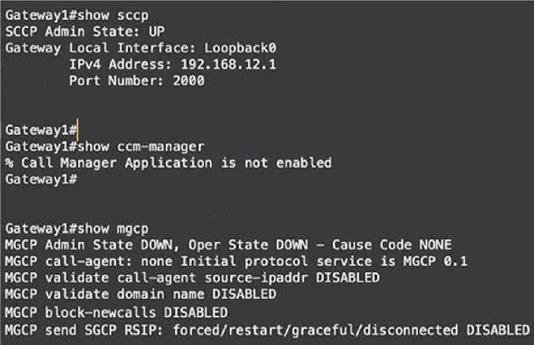

Refer to the exhibit.
Refer to the exhibit. A collaboration engineer adds an analog gateway to a Cisco UCM cluster. The engineer chooses MGCP over SCCP as the gateway protocol. Which two actions ensure that the gateway registers? (Choose two.)
Enter "no seep" on the gateway in configuration mode.
Enter "ccm-manager mgcp" on the gateway in configuration mode.
Enter "mgcp" on the gateway in configuration mode.
Enter "ccm-manager config" on the gateway in configuration mode.
Delete and re-add the gateway configuration in Cisco UCM.
An engineer must configure switch port 5/1 to send CDP packets to configure an attached Cisco IP phone to trust tagged traffic on it’s access port. Which command is required to complete the configuration?
platform qos trust extend cos 3
platform qos trust extend
platform qos extend trust
platform qos trust extend cos 5
Which location must be assigned to the SIP trunk to replicate enhanced location information via a SIP trunk?
phantom
replica
hub_none
shadow
An administrator uses the Cisco Unified Real-Time Monitoring Tool to investigate recent calls on a Cisco UCM cluster. The SIP trace for an on-net. direct-media call shows two 180 Ringing and two 11 BYE messages. Why are there multiples of each message type in the trace?
The source phone sends a 180 Ringing signal to the Cisco UCM. which sends a 180 Ringing signal to the destination phone. The same process applies to 11 BYE messages.
The source phone must signal to the destination phone that it is ringing, and the destination phone signals back with a 180 Ringing message. The same process applies to 11 BYE messages.
The calls have an MTP in the call path due to different codec support. The calls are subsequently split into two call legs.
The destination phone signals back to the Cisco UCM that it is ringing, and the Cisco UCM signals back to the source phone.
An engineer configures Cisco UCM to prevent toll fraud. At which two points does the engineer block the pattern in Cisco UCM to complete this task? (Choose two.)
partition
route partem
translation pattern
CSS
route group
Which dial plan function restricts calls that are made by a lobby phone to internal extensions only?
manipulation of dialed destination
path selection
calling privileges
endpoint addressing

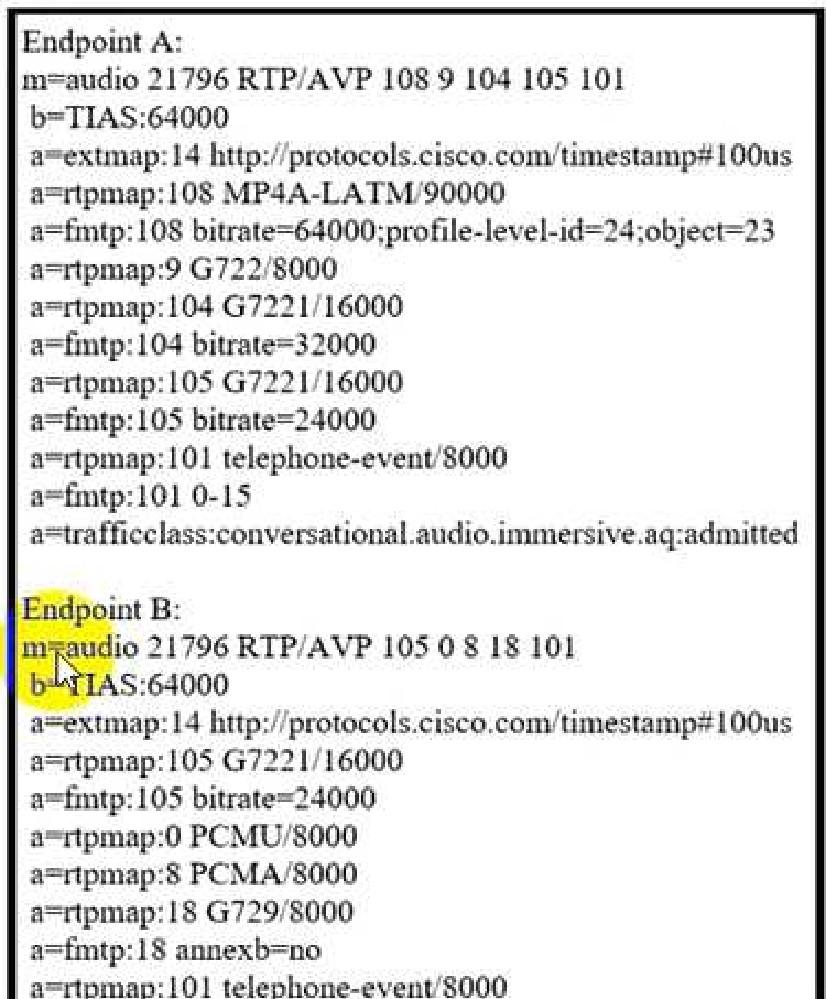

Refer to the exhibit.
Refer to the exhibit. Endpoint A calls endpoint B. What is the only audio codec that is used for the call?
G722/8000
Telephone-event/8000
G7221/16000
PCMA/8000
