Refer to the exhibit.
Refer to the exhibit. A functioning trunk port Ethernet1/48 exists between two identical Cisco Nexus 5000 Series Switches. The interfaces on the switches support the MACsec feature and are configured identically. To enable manual
MACsec, an engineer adds the configuration shown in the exhibit to both sides of the trunk. The trunk port stops functioning. Which action should be taken to resolve the issue?
Disable and then enable the port
Enable the license for the trunk ports to support MACsec
Lower the MTU value to less than 9216 bytes
Configure the PMK with a length of 2048 bytes
Refer to the exhibit.

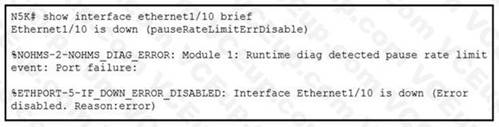

Refer to the exhibit. A network engineer is troubleshooting a Cisco Nexus 5000 Series Switch. The interface between the server and the switch is nonoperational and is expected to operate at 10 Gbps. The drain rate of the interface is 3 Mbps. Which action resolves the issue?
Configure pause error-disable recovery
Enable link level pause on the interface
Reset priority flow counters
Set priority flow control pause
Refer to the exhibit.
A customer network uses OSPFv2 and MP-BGP protocols A network administrator installs a new Cisco Nexus Switch in the data center but experiences a BGP RIB failure Which action solves the issue?
Change the administrative distance of OSPF to 220
Configure the route as a BGP backdoor
Use a filter list for OSPF to filter both routes
Implement next-hop-self
An engineer is implementing a new BGP peering in their new data center. The engineer set up the BGP session that peers with the remote end. As soon as the BGP peers attempt to exchange routing prefixes, one of the BGP peers drops the connection. After reviewing the configuration, the engineer reviews the logging messages. The engineer discovers that the router is missing keepalives from the remote end and terminates the session. Which action resolves the issue?
Set the bgp transport path-mtu-discovery attribute on both peers
Set the higher values for the BGP keepalive and hold-down timers on both peers
Configure the matching BGP AS numbers between the peers
Configure the matching BGP passwords between the peers
Refer to the exhibit.

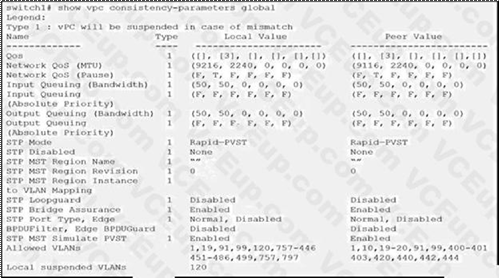

The vPC neighborship between two switches is in suspended state. Which configuration change resolves the issue and brings up the vPC neighborship?
Change STP Port Type to Network on the peer switch
Enable Bridge Assurance on the local switches
Configure QoS MTU value of 9216 on the peer switch
Add VLAN 400-401 to the configuration on the local switch
Refer to the exhibit.

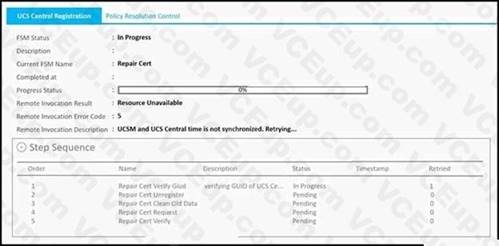

The integration between Cisco UCS Manager and Cisco UCS Central failed. Which action resolves the issue?
Implement the consistent NTP source between the appliances
Implement the connectivity between the appliances through a firewall
Configure the certificate between the appliances
Configure the shared secret key between the appliances
Refer to the exhibit.

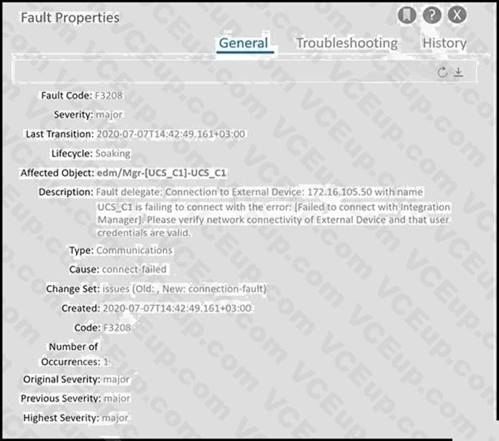

An engineer fails to implement a Cisco UCS Manager integration manager. The credentials and IP connectivity between Cisco APIC and UCS Manager are configured as expected. Which action resolves the issue?
Disable HTTP to HTTPS redirection in Cisco UCS Manager
Enable JSON API on the Cisco UCS Manager
Change the Integration Manager name to FQDN of the Cisco UCS Manager
Install ExternalSwitch app in the APIC controller
A network engineer experiences the error “DDR3_P1_B1_ECC” when upgrading Cisco UCS firmware.
Which action resolves the issue?
Reset the DIMM
Reset the BMC firmware
Reflash the controller firmware
Reflash the DIMM
Refer to the exhibit.

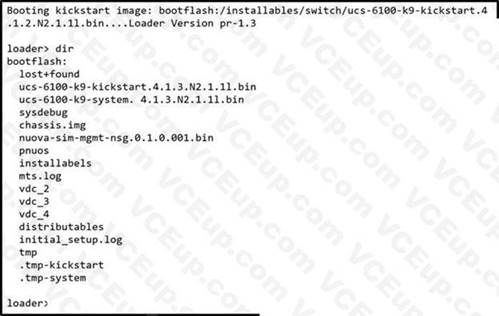

A Cisco UCS Fabric Interconnect fails during the upgrade process. The working images of the fabric interconnect are stored on the bootflash. Which set of commands recovers the fabric interconnect?
A. loader> dir
loader> boot ucs-6300-k9-kickstart.5.0.2.N1.3.02d56.bin
switch(boot)# init system
switch(boot)# reload
switch(boot)# load ucs-6300-k9-system.5.0.2.N1.3.02d56.bin
loader> dir
loader> boot ucs-6300-k9-kickstart.5.0.2.N1.3.02d56.bin
switch(boot)# copy ics-manager-k9.1.4.1k.bin nuova-sim-mgmt-nsg.0.1.001.bin
switch(boot)# boot ucs-6300-k9-system.5.0.2.N1.3.02d56.bin
loader> dir
loader> boot ucs-6300-k9-kickstart.5.0.2.N1.3.02d56.bin
switch(boot)# init system
switch(boot)# reload
switch(boot)# boot ucs-6300-k9-system.5.0.2.N1.3.02d56.bin
loader> dir
loader> boot ucs-6300-k9-kickstart.5.0.2.N1.3.02d56.bin
switch(boot)# copy ics-manager-k9.1.4.1k.bin nuova-sim-mgmt-nsg.0.1.001.bin
switch(boot)# load ucs-6300-k9-system.5.0.2.N1.3.02d56.bin
Refer to the exhibit.

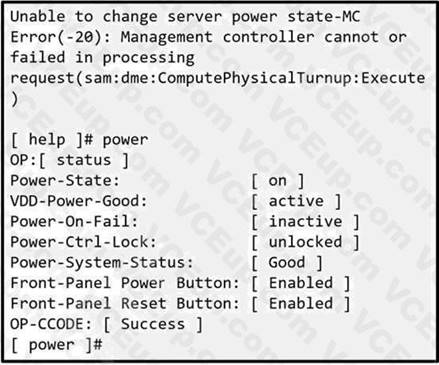

An engineer monitors a Cisco UCS server logs and discovers a blade discovery issue. Which procedure resolves the issue?
A. 1. Verify the server power module.
Decommission the faulty module.
Insert a new power module.
Recommission the new module.
1. Verify that server platform power is failed
Resolve the platform power issue.
Reboot the server.
Recommission the server.
1. Verify the FSM status on the server.
Decommission the impacted server.
Reset the slot where the server is located.
Recommission the server.
1. Verify that the power on self-test operation is failed.
Verify that the server firmware is corrupted.
Decommission the server firmware
4. Recommission the server with new firmware.
