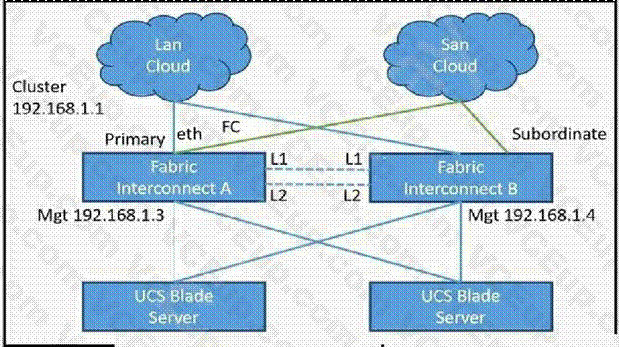

Refer to the exhibit.
A network engineer finds one of the fabric interconnects offline when connecting L1 and L2 ports on both fabric interconnects. Which action resolves the issue?
A. 1. Connect to Fabric Interconnect B.
Verify the cluster status and HA election.
Validate Fabric Interconnect B hardware issues.
1. Connect to Fabric Interconnect A.
Verify the cluster status and HA election.
Validate Fabric Interconnect A hardware issues.
1. Connect Fabric Interconnect B and change the role to primary.
Reboot Fabric Interconnect B.
Add the Fabric Interconnect A as subordinate fabric to the cluster.
1. Connect Fabric Interconnect B and execute “Erase configuration”
Reboot Fabric Interconnect B.
3. Add the subordinate Fabric Interconnect to the cluster.

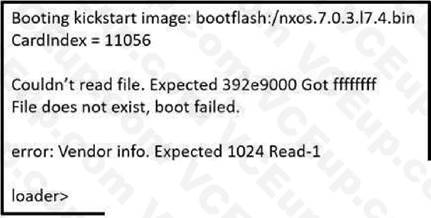

Refer to the exhibit.
A network engineer upgrades the firmware of a Cisco Fabric Interconnect from boot flash. During the process, the fabric interconnect reboots and displays the message shown in the exhibit. Which action resolves the issue?
Remove the service pack and upgrade through the auto-install procedure
Reset the I/O module and install the firmware image from the boot flash
Boot the kickstart image from boot flash and load the system image
Reload the switch and boot the kickstart image from the TFTP server

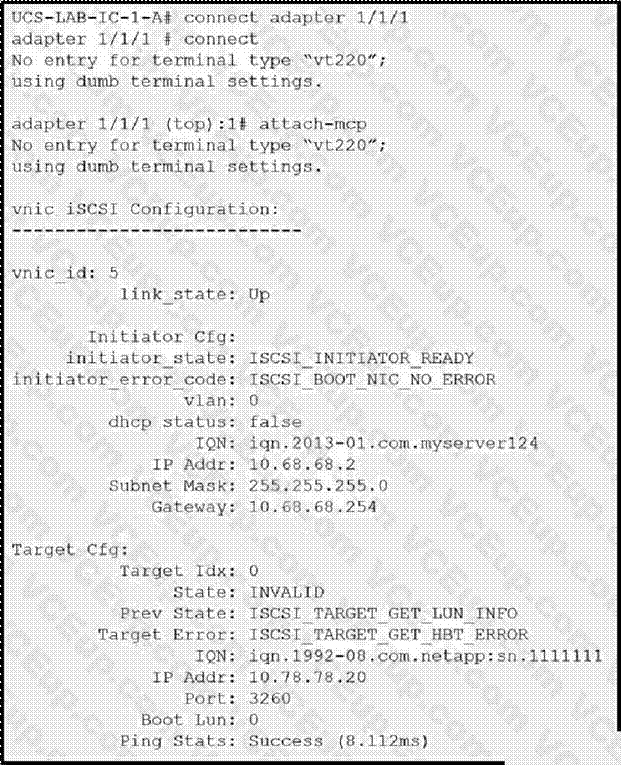

Refer to the exhibit.
A Cisco UCS B-Series Blade Server is configured to boot from a shared storage via an iSCSI network.
When a service profile is associated with the blade, the blade fails to attach the LUN. Which action resolves the issue?
Place VLAN 0 on the interface that connects to the storage
Register the blade as an initiator on the storage array
Implement a Layer 3 connection between the blade and the storage
Establish a Layer 2 connection between the blade and the storage

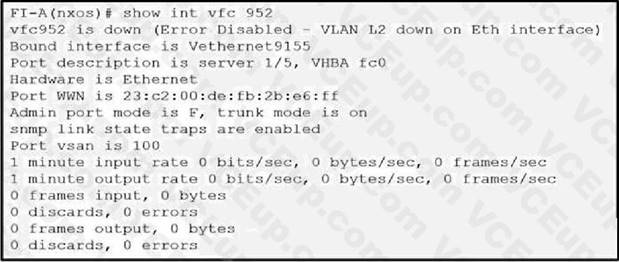

Refer to the exhibit.
A network engineer is implementing a Cisco UCS environment. The environment consists of eight servers configured with the same service profile template and Windows 2012 installed. The VFC interfaces of five of these servers are showing the error shown in the exhibit. Which action resolves the issue?
Modify the vHBAs name in the storage connectivity policy
Configure upstream zoning
Decommission and recommission the servers
Modify the boot order in the boot policy
Refer to the exhibit.
A client configures an upgrade of its Cisco Nexus switches that are connected to the Cisco ACI controller, such that the switches are upgraded one at a time. After the upgrade is run, it is discovered that both Cisco Nexus switches were upgraded simultaneously. Which two actions ensure that the switches upgrade one at a time? (Choose two.)
Configure the *Do not pause on failure and do not wait on cluster health" Run Mode
Choose the 'Pause upon upgrade failure" Run Mode
Select the "Graceful Maintenance" checkbox
Place each leaf switch in a different upgrade group
Check the Ignore Compatibility" checkbox

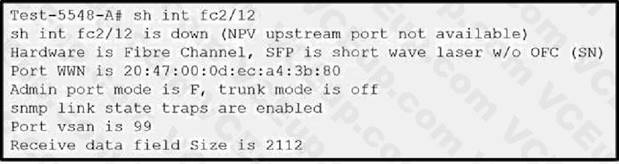

Refer to the exhibit.
An engineer configures the server port on a Cisco Nexus 5000 Series Switch. The switch connects to an NPV edge switch port. The server fails to send the FC traffic to the fabric. Which action resolves the issue?
Enable the NPIV mode on the Cisco Nexus 5000 switch.
Match the VSAN membership on both ends of the connection.
Configure the BB_credit buffer on the uplink port.
Replace the SFP in slot fc2/12.
An engineer configures FCoE between a set of ESXi hosts and a Cisco Nexus 5000 Series Switch. The Converged Network Adapter of the host fails to receive the response from the Cisco Nexus device.
Also, the VFC interface is in a down state and the FIP adapter fails to receive 802.1q tagged frames.
The host interface is configured for VLAN trunking. Which action resolves the issue?
Activate the reception of Xoff pause frames from the server
Configure the UF link as a spanning-tree edge port
Enable the active STP port state on the bound Ethernet interface
Set the bound Ethernet trunk interface to non-FCoE native VLAN

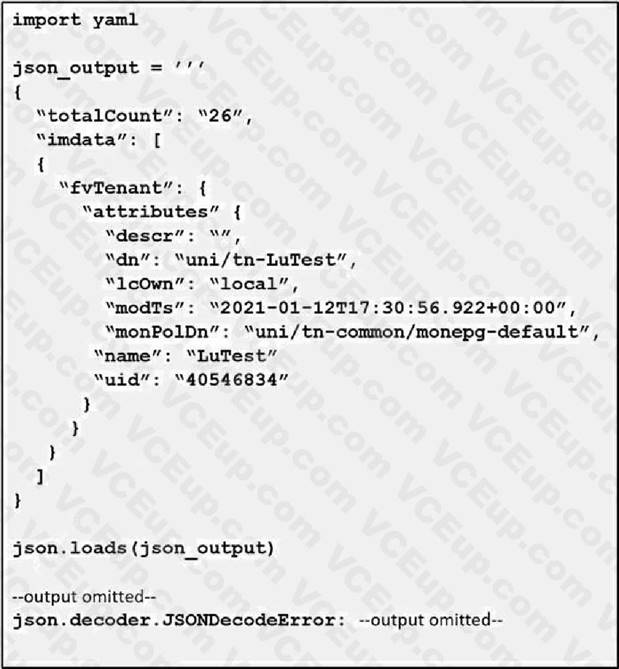

The script fails to convert a JSON variable into a Python dictionary. Which action resolves the issue?
Use a json.dumps(json_output) function
Define a json_output as a YAML object, yaml json_output
Fix the JSON syntax by modifying “attribures” to “attribures”:
Invoke a function yaml.loads(json._output ,decoder_”json”)

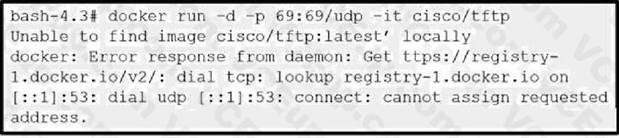

Refer to the exhibit.
An engineer is experiencing a problem when running a Docker container inside the Cisco Nexus 9000 bash shell. Which action resolves the issue?
Add a new nameserver
Connect to bash as a different user
Change VRF to management
Configure the mgmt0 interface

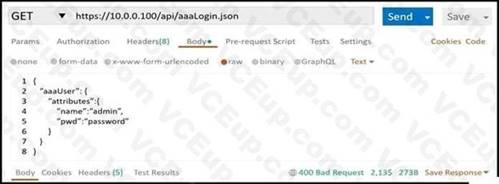

Refer to the exhibit.
A Postman call to a Cisco APIC fails. The access credentials were confirmed to be configured as expected. Which action resolves the issue?
Change operation type to POST
Modify the protocol to HTTP
Change the IP address to a domain name
Modify the target protocol type to XML
