Question 71
A Cisco UCSB-Series Blade Server is configured to boot a VMwareESXi host from an EMC VNX storage array by using a Fibre Channel SAN. The boot order is confirmed to be configured as expected but the server fails to boot from the SAN. Which action reserves the problem?
Set the same WWPN pools for vHBA adapters
Set the boot LUN to the highest LUN ID in the storage array
Set the boot LUN to the lowest LUN ID in the storage array
Set the same WWNN pools for vHBA adaptor
Question 72
The external routes fail to propagate to leaf switches in Cisco ACI fabric Which two actions resolve the issue? (Choose two.)
Enable the VTEP pool in the fabric
Assign an MP-BGP AS number to the fabric.
Specify the spine nodes as route reflectors
Associate the correct contract to the L30ut.
Configure an MP-BGP area.
Question 73

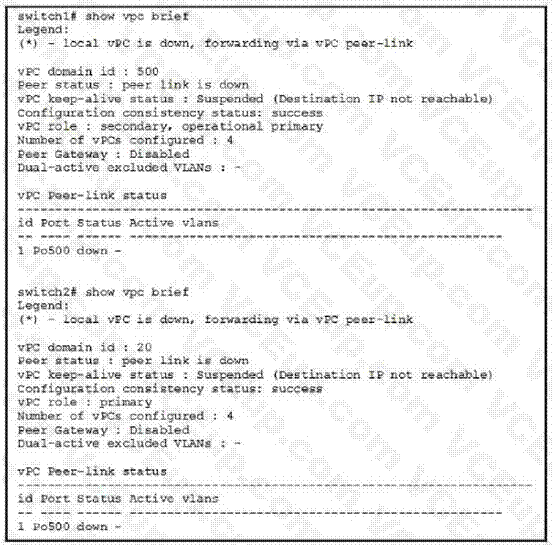

Refer to the exhibit.
The vPC between switch1 and switch2 does not work. Which two actions resolve the problem?
(Choose two.)
Configure the IP address on the interface.
Activate VLANs on the vPC.
Configure one of the switches as primary for the vPC.
Correct the configuration of the vPC peer link and the vPC peer keepalive.
Match the vPC domain ID between the two devices.
Both “vPC peer link” and “Peer keepalive link” are down. So, D is correct.
SW1 is using vPC domain ID 500, which SW2 is using 20. They must match. So, E is correct.
Question 74

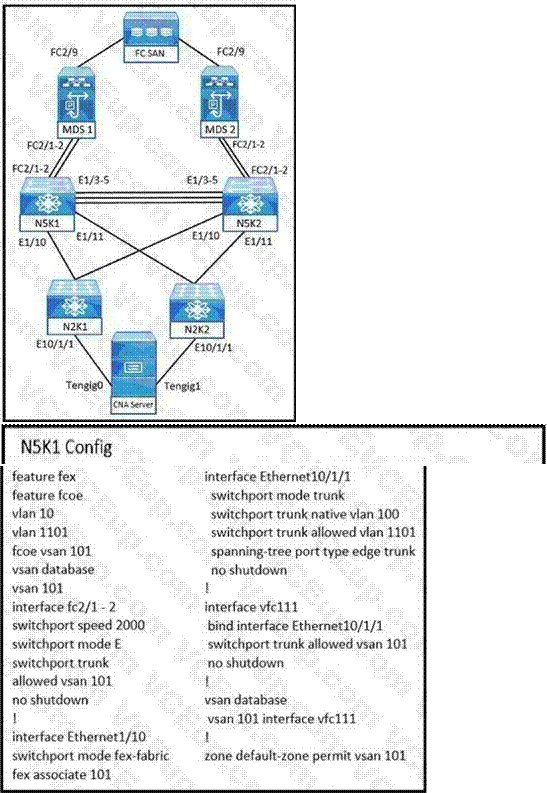

Refer to the exhibits.
An engineer troubleshoots switch N5K1, which fails to receive traffic from the file server Which set of actions resolves this problem?
Bind native VLAN 10 with Ethemet1/10 and allow VSAN 101 in trunk configuration.
Assign native VLAN 10 with vfc111 and allow VLAN 1101 in trunk configuration.
Bind native VLAN 10 with Ethemet10/1/1 and allow VLAN 10 in trunk configuration
Assign native VLAN 10 with fc2.'l - 2 and allow VLAN 10 in trunk configuration.
Question 75

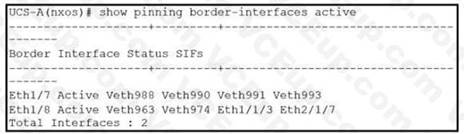

Refer to the exhibit.
A network engineer traces the packet flow from the Veth991 of a blade server toward the core switch. The switch reports performance issues. What is the role of the interface Eth1/7?
IOM network interface
fabric interconnect uplink interface
IOM host interface
server interface
E1/7 is border interface, which is used as uplink. All other veth interfaces are SIF, which stands for Server Interface.
Question 76
A customer reports that the Chassis Management Controller fails to receive chassis information from Cisco UCS Manager. Which set of steps resolves the issue?
A. 1) Verify that the IOM firmware and Cisco UCS Manager are at different software levels 2) Verify that at least two physical cables between the IOM and fabric interconnect function properly.
3) Check for runtime link down status
4) Reseat the affected IOM.
1) Verify that the IOM firmware and Cisco UCS Manager are at the same software level.
2) Verify that at least one physical cable between the IOM and fabric interconnect functions properly.
3) Check for runtime link down status
4) Reseat the affected IOM.
1) Verify that the IOM firmware and Cisco UCS Manager are at the same software level.
2) Verify that at least two physical cables between the IOM and fabric interconnect function properly.
3) Check for runtime link down status.
4) Reseat the affected IOM.
1) Verify that the IOM firmware and Cisco UCS Manager are at different software levels.
2) Verify that at least one physical cable between the IOM and fabric interconnect functions properly.
3) Check for runtime link down status.
4) Reseat the affected IOM.
https://www.cisco.com/c/en/us/td/docs/unified_computing/ucs/ts/guide/UCSTroubleshooting/UCSTroubleshooting_chapter_01001.html
Question 77

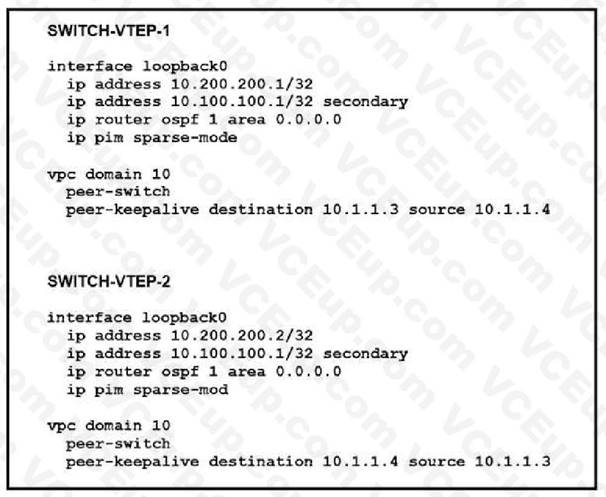

Refer to the exhibit.
Refer to the exhibit. One of the vPC VTEPs fails to route VXLAN traffic to vPC connected hosts. When the issue was being diagnosed, it was discovered that the packets that were expected to be forwarded to the MAC address on the SWITCH-VTEP-1 are instead forwarded to the MAC address onSWITCH-VTEP-2 and then dropped. Which action resolves the issue?
Configure a distributed anycast gateway on both peers
Configure ip arp synchronize under the VPC domain on both peers
Configure peer-gateway under the VPC domain on both peers
Configure a different secondary IP address for one of the vPC peers
Reference:
https://www.cisco.com/c/en/us/td/docs/switches/datacenter/nexus5000/sw/command/reference/vpc/n5k-vpc-cr/n5k-vpc_cmds_i.html#:~:text=a%20port%20profile.-,ip%20arp%20synchronize,no%20form%20of%20this%20command.
Question 78

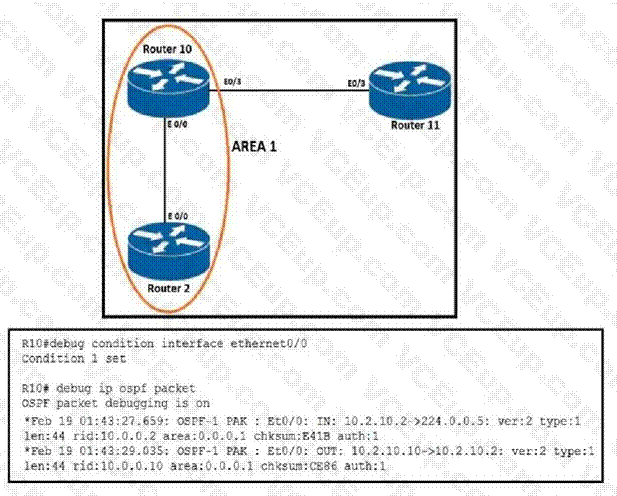

Refer to the exhibit.
Refer to the exhibit. An engineer troubleshoots an OSPF neighborship problem between Router R2 and Router R10. Which action resolves the problem?
Change area ID on Router R10
Resolve unicast reply from Router R2
Resolve authentication type on Router R10
Change router ID on Router R10
Question 79

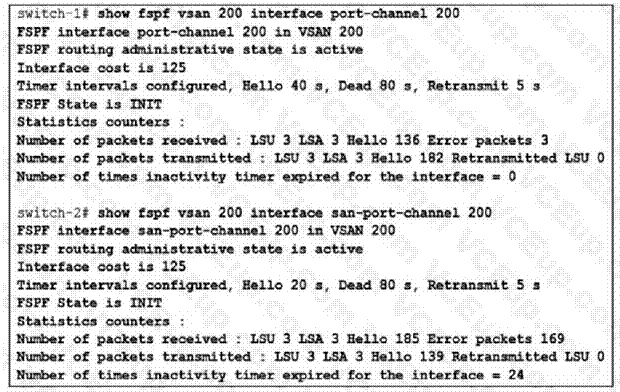

Refer to the exhibit.
Refer to the exhibit. VSAN traffic is not routed as expected. Which action should be taken to resolve the issue?
Reset the error packet counter
Configure the hello timer to match the neighbor
Configure the FSPF dead interval with a value higher than 80 seconds
Reset the inactivity timer on switch-2
Reference:
https://www.cisco.com/en/US/docs/switches/datacenter/nexus5500/sw/troubleshooting/guide/n5500_ts_sans.html
Question 80

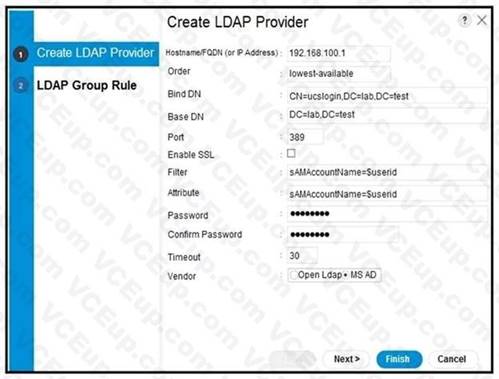

Refer to the exhibit.
Refer to the exhibit. A network engineer configures an authentication domain through an LDAP provider on the Cisco UCS Manager for users from different companies to log into their respective organizations created in the UCS Manager.
The engineer tests the configuration and notices that any user has login access to any organization in the UCS Manager. Which action should be taken to resolve the issue?
Configure the Filter field with sAMAccountName=$company
Configure the Attribute field with the company
Configure the Attribute field with sAMAccountName=$company
Configure the Filter field with the company
