Cisco 300-615 Practice Test - Questions Answers, Page 7
Add to Whishlist
List of questions
Question 61

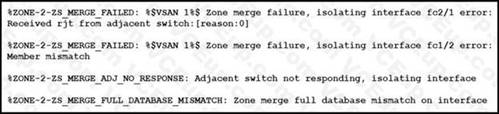

Refer to the exhibit.
An engineer deploys SAN environment with two interconnected Cisco MDS 9000 Series switches.
When the engineer attempts a zone merge, it fails with the error that is presented in the exhibit.
Which action resolves the issue?
Import or export a zone set between the switches to synchronize the switches.
Change the name of one of the zones to match the other zone set.
Set the distribute policy of the zone to full.
Ensure that the zone members have different names.
https://www.cisco.com/en/US/docs/storage/san_switches/mds9000/sw/rel_3_x/troubleshooting/guide/ts_guide.pdf
Question 62
Refer to the exhibit.
During implementation of a Cisco UCS C-Series Server, an engineer receives the status that is shown in the exhibit. Which action resolves the issue.
Reconfigure the Drive Type from "Removable" to "Non-Removable"
Insert an SD card into SLOT-2
Configure the RAID that is associated with the card.
Set SLOT-1 Sync Mode to "Auto"
Question 63

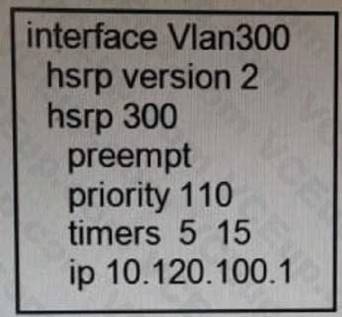

Refer to the exhibit.
An engineer troubleshoots the HSRP configuration and notes that the remote end uses HSRP version 1. The engineer sets the local HSRP to version 1, but the problem continues. Which action resolves the issue?
Change the local group number to 255 or less and request that the remote data center matches the group member in its configuration.
Set the local group number as 300 in the remote data center configuration
Run version 1 and version 2 HSRP on VLAN300 in the local data center.
Reduce the priority of the local HSRP to below 100 to force the local HSRP to standby and then change the version to version 1.
https://www.cisco.com/c/en/us/td/docs/ios-xml/ios/ipapp_fhrp/configuration/xe-16/fhp-xe-16-book/fhp-hsrp-v2.pdf
Question 64
During a boot process of a Cisco UCS C-Series Rack Server, an engineer receives a "No Signal" message from the vKVM and physical connection. Which set of steps resolves the issue?
A. 1- Disconnect the power cord
2- Confirm that all cards are property seated
3- Connect the power cord and power on the server
1- Power off the server and disconnect the power cord
2- Confirm that all cards are property seated
3- Connect the power cord and power on the server
1- Power off the server and disconnect the power cord
2- Confirm that all cards are available
3- Connect the power cord and power on the server
1- Disconnect the power cord
2- Confirm that all cards are properly seated
3- Connect the power cord
https://www.cisco.com/c/en/us/td/docs/unified_computing/ucs/c/ts/guide/b_CSeries_Troubleshooting_Guide.pdf
Question 65
An engineer must configure Linux hosts that are deployed on Cisco UCS B-Series Servers to boot from SAN. The SAN boot policy is configured in Cisco UCS Manager, and the boot order is verified to be set as expected However, the Linux hosts fail to boot. Which action resolves the issue?
Remove all of the local storage that is installed
Delete and reconfigure the pWWN of the SAN boot target
Remove all of the ISO images that are mounted as a virtual CD-ROM
Delete and reconfigure the boot LUN
Reference: https://www.cisco.com/c/en/us/td/docs/unified_computing/ucs/sw/cli/config/guide/2-2/b_UCSM_CLI_Configuration_Guide_2_2/configuring_server_boot.pdf page 5
Question 66
Refer to the Exhibit.
An Engineer cannot log in to the Cisco IMC page of the Cisco UCS C220 server. Which action resolve the issue?
Se the FQDN of the Cisco IMC webpage login page instead of the IP address for the connection to be secure.
Use the DNS of the Cisco IMC webpage login page instead of the IP address for the connection to be secure.
Replace the self-signed certificate that is installed on the Cisco IMC with a server certificate that is signed from the client corporate certificate.
Replace the self-signed certificate that is installed on the Cisco IMC with a user certificate that is signed from the client corporate certificate.
Question 67
An engineer troubleshoots a VXLAN EVPN data center. The applications in the data center fail to reach the DNS server that is located at IP 10.10.10.10. The engineer examines the BGP EVPN routing table and notes that the IP prefix route covers the DNS server is missing. Which action resolve the issue?
Set the IP prefix route to represent [5]:[0]:[0]:[32]:[10.10.10.10]/224 in the routing table.
Configure an IP ARP entry to represent [2]:[0]:[0]:[48]:[0050.569f.1285]:[32]:[10.10.10.10]/272 in the routing table
Set the IP prefix route to represent [2]:[0]:[0]:[48]:[0050.569f.1285]:[0]:[0.0.0.0]/216 in the routing table
Configure an IP ARP entry to represent [4]:[0300.0000.00fc.bd00.0309l[32]:[10.10.10.10]/136,n the routing table
Question 68
Refer to the exhibit.
An engineer must connect N2K-Fex-1 and N5K-Core-1 so that the traffic flow between the two devices uses load balancing. After inspecting the statistics of the interconnecting interfaces, the engineer concludes that only one link is used.
Which action resolves the problem?
Configure source-destination load balancing on N5K-Core-1.
Configure each uplink to be a member of a separate LACP port channel.
Configure the pinning max-link as 2.
Configure destination-mac load balancing on N5K-Core-1
https://www.cisco.com/c/m/en_us/techdoc/dc/reference/cli/n5k/commands/pinning-maxlinks.html
Question 69
A system administrator adds two vNICs to an existing service profile that is used to run a vSphere environment to support disjoint Layer 2 network connectivity. However, after the server is rebooted, the host is not accessible on the network
Which action resolves the issue?
Remove all existing vNICs and add them in the desired order.
Build a new service profile with the desired network configuration
Add the disjoint Layer 2 VLANs to an existing vNIC rather than adding new vNICs
Create a vNIC placement policy to avoid adapter renumbering
Reference: https://www.cisco.com/c/en/us/support/docs/hyperconverged-infrastructure/hyperflexhx-data-platform/213665-troubleshoot-hx-nodes-pci-address-reorde.html
Question 70
An engineer enables the packet postcards feature on a Cisco Nexus 9000 Series Switch but receives the error message "Error: Cannot configure postcard when inband-telemetry is configured." Which action resolves the issue?
Disable the telemetry feature
Disable the software-telemetry feature
Disable the hardware-telemetry feature
Disable the inband-telemetry feature
https://www.cisco.com/c/en/us/td/docs/switches/datacenter/nexus9000/sw/93x/progammability/guide/b-cisco-nexus-9000-series-nx-os-programmability-guide-93x/b-cisco-nexus-9000-series-nx-osprogrammability-guide-93x_chapter_0101011.html
