An FSM failed during an uparade with the auto-install feature enabled. The engineer must remove the service pack from the subordinate fabric interconnect (FI) to recover the Fls. Which set of commands resolves the issue?
A. UCS-A# scope org
UCS-A/org # scope fw-infra-pack default
UCS-A /org/fw-infra-pack # set infra-bundle-version ""
UCS-A/org/fw-infra-pack* # commit-buffer
UCS-A# scope fabric-interconnect b
UCS-A# /fabric-interconnect # remove service-pack
UCS-A# /fabric-interconnect* # commit-buffer
UCS-A# scope org
UCS-A/org # scope fw-infra-pack default
UCS-A /org/fw-infra-pack # set infra-bundle-version
UCS-A# /fabric-interconnect # remove service-pack security
UCS-A# /fabric-interconnect* # commit-buffer
UCS-A# scope fabric-interconnect b
UCS-A# /fabric-interconnect # remove service-pack security
UCS-A# /fabric-interconnect* # commit-buffer

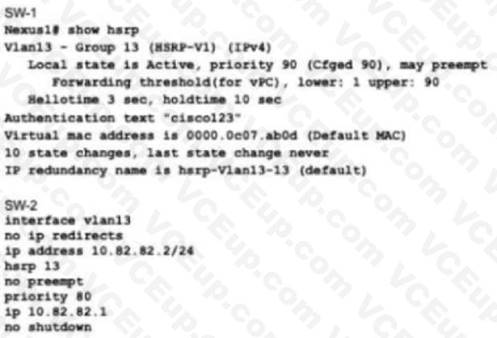

Refer to the exhibit.
A recent configuration change removes the HSRP adjacency between the SW-1 and SW-2 Cisco Nexus switches. The change causes the servers on this subnet to lose Internet access. Which action restores the connectivity of all servers on VLAN 13?
Disable HSRP IP redirects on SW-1.
Set the HSRP priority to 70 on SW-1.
Activate HSRP preempt on SW-2.
Set the HSRP password on SW-2.
"A network engineer troubleshoots an issue at a Cisco data center environment with these conditions:
• The data center has Cisco Nexus 9000 Series Switches running the vPC setup.
• The gateway of the servers is an HSRP IP address between the VLAN interfaces configured on both Cisco Nexus switches.
• Some of the client application servers are implementing fast-path forwarding for the return traffic.
• Those servers are sending the return traffic to the VLAN interface MAC address instead of the HSRP MAC address.
The network engineer discovers that some traffic is dropped because it passes the vPC peer link to be forwarded out the vPC interface. What must be configured on the vPC switches to resolve the issue?
peer-switch
peer-gateway
arp synchronize
spanning-tree

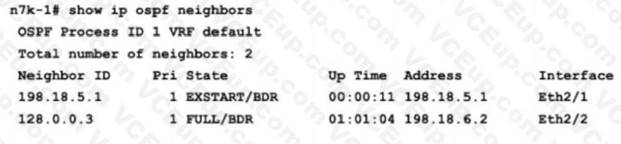

Refer to the exhibit.
A network engineer configures OSPF protocol between two Cisco Nexus 7000 Series Switches. The OSPF neighbors fail to synchronize OSPF databases. Which action resolves the issue?
Match the OSPF area between the two devices.
Configure the IP addresses of the interface in the same subnet.
Change the OSPF area type to 2 on n7k-1.
Set the same MTU values on both sides of the link.

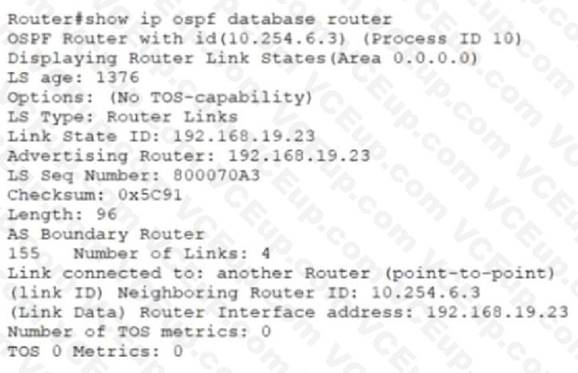

Refer to the exhibit.
A network engineer is implementing a pair of Cisco Nexus 9000 Series Switches. During the OSPF configuration, the engineer discovers unstable routing in the network. The investigation shows flapping routes after the new switches were introduced. Which set of actions resolves the issue?
Configure a new IP address on the Ethernet interface toward the OSPF neighbor. Clear the OSPF neighbor.
Configure a new IP address on the Ethernet interface toward the OSPF neighbor. Clear the OSPF process.
Configure a new OSPF priority on the Ethernet interface toward the OSPF neighbor. Clear the OSPF neighbor.
Configure a new IP address on the Loopback interface for the OSPF process. Clear the OSPF process

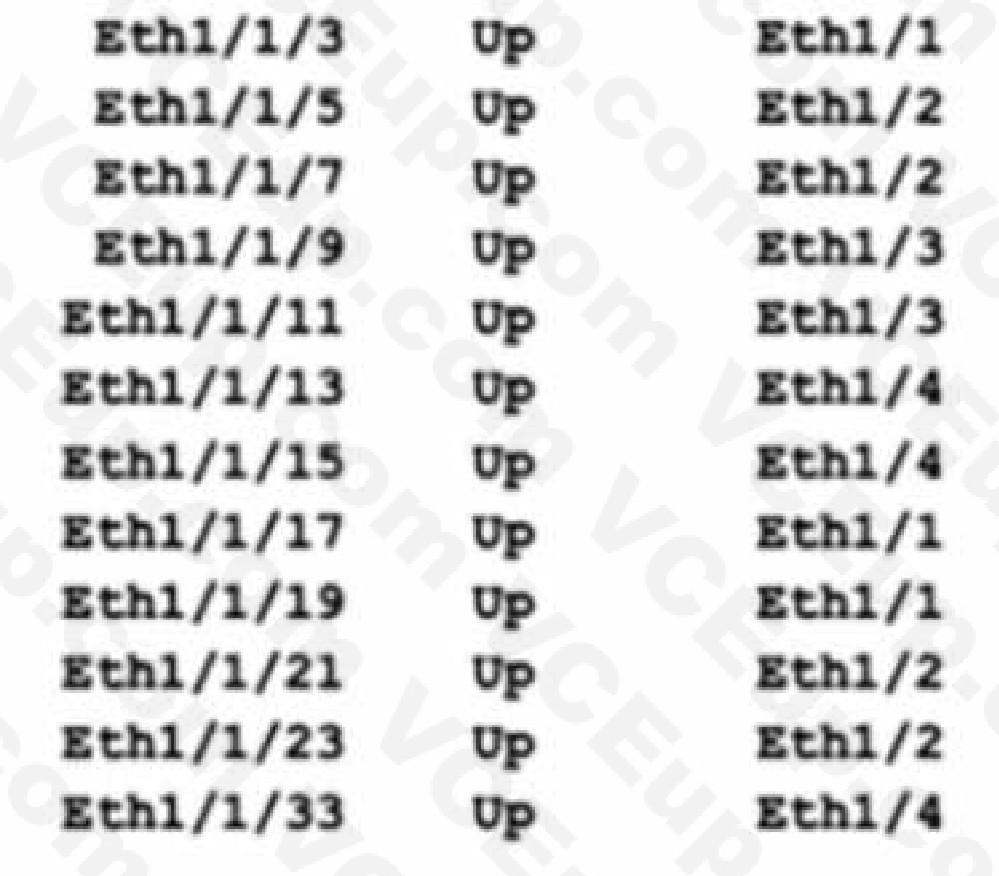

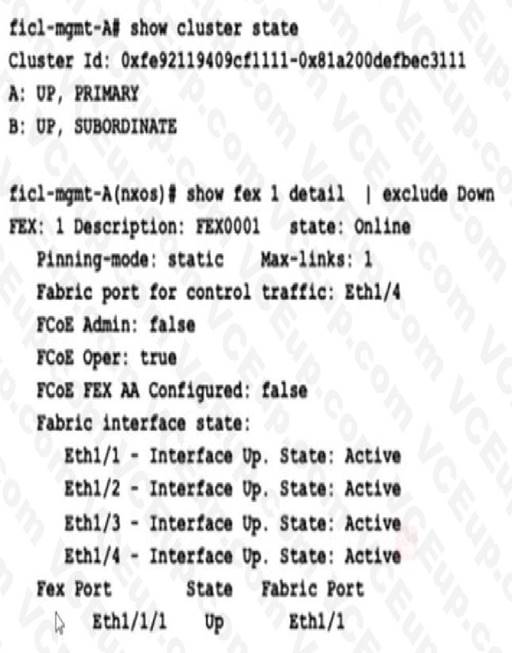

Refer to the exhibit.
A network engineer needs to capture traffic from the VMs that utilize the IOM host interface Eth1/1/23 of a Cisco UCS B-Series chassis. A traffic analyzer is used to get traffic captured from the Eth1/4 interface of the subordinate fabric interconnect. The network engineer notices that traffic is not captured on the traffic analyzer. Which action resolves the issue?
Span the traffic from the Eth 1/2 of the subordinate fabric interconnect.
Span the traffic from the Eth 1/4 of the subordinate fabric interconnect.
Span the traffic from the Eth 1/2 of the primary fabric interconnect.
Span the traffic from the Eth 1/4 of the primary fabric interconnect.

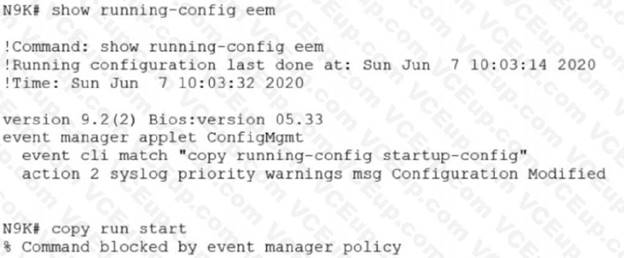

Refer to the exhibit.
An engineer must save the running configuration to startup-config and generate a syslog message indicating that the configuration was modified, but an error was received. Which action resolves the issue?
Change the syslog action number to 1.
Save the configuration using a user with network-admin role.
Use the extended command copy running-config startup-config.
Add event-default as a second action of the EEM script.
A network engineer must connect a Cisco UCS Fabric Interconnect cluster to the Cisco ACI. VMware ESXi hypervisors have been installed on Cisco UCS blades and a VMware VMM domain has been configured. However, virtual machines fail to reach their default gateway in the Cisco ACI Fabric. The engineer investigates the issue and notices that the VMware Distributed Switch (VDS) teaming policy is set to "Route based on IP hash". Which action resolves the issue?
Configure the vSwitch Policy on the VMM domain.
Disable the On-demand EPG resolution immediacy setting in ACI.
Disable the VMware Network I/O Control on the VDS.
Configure the vSwitch Policy on a VDS.

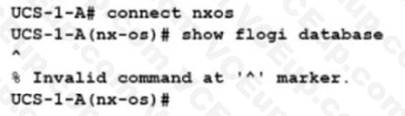

Refer to the exhibit.
An administrator directly connects a Fibre Channel storage array to ports 1 through 4 on a Cisco UCS 6454 Fabric Interconnect. The administrator configures a service profile to boot directly from the new Fibre Channel storage array, but the service profile fails to boot. When the administrator checks the output of the show flogi database command on the fabric interconnect, it shows the output presented in the exhibit. Which action resolves the issue?
Configure the Zoning Type in vHBA Initiator Group as Multiple Initiator Single Target.
Configure the fabric interconnects in Fibre Channel switch mode.
Configure the Zoning Type in vHBA Initiator Group as Multiple Initiator Multiple Target.
Configure the fabric interconnects in Fibre Channel end-host mode

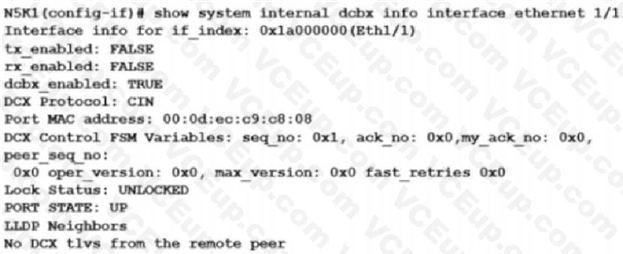

Refer to the exhibit.
A network engineer notices packet drops on FCoE traffic from the servers. Which action resolves the issue?
Apply flowcontrol receive on the interface.
Apply flowcontrol transmit on the interface.
Enable priority flow control on the interface.
Disable priority flow control on the interface.
