Refer to the exhibit.
The FCoE traffic fails to traverse the vfc2 interface. The VSAN 102 is configured for vfc2. Which action resolves the issue?
Enable LLDP on the interface vfc2
Activate DCBX on the N9K switch
Activate DCBX on the interface e101/1/2
Enable LLDP on the neighbor switch
A network engineer finds an error that says, "BIOS failed power-on self-test." When the engineer checks the console, they discover that the Cisco UCS Blade firmware upgrade process stopped at the "Configuring and testing memory" stage.
Which set of actions resolves the issue?
A. 1. Add the CIMC firmware on a server.
Initialize the CIMC firmware on a server.
1. Update the BIOS firmware on a server.
Activate the BIOS firmware on a server
1. Create a new host firmware package.
Assign the host firmware package to the service profile template.
1. Upgrade the firmware on an adapter.
2. Enable the firmware on an adapter.

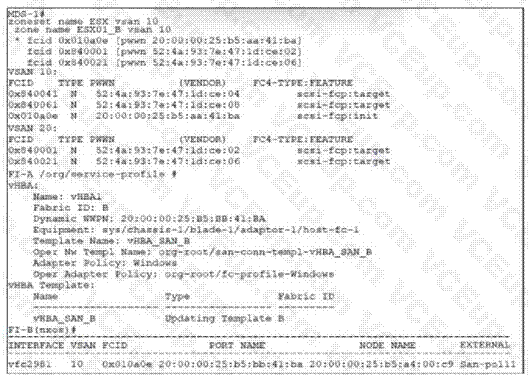

Refer to the exhibit.
A blade that is connected to FI-B fails to boot from a SAN LUN. The boot policy is configured to boot by using vHBA1 as the SAN Primary. Which set of actions resolves the issue?
A. • Set ESX01_B zone to VSAN 20.
• Create a new vHBA and assign VSAN 20.
• vHBA1 to VSAN 20 in Service Profile.
• VMware Adapter Policy on vHBA1.
•Apply VMware Adapter Policy on vHBA1
•Change vHBA1 to VSAN 20 in Service Profile
• Set ESX01_B zone to VSAN 20.
• Change vHBA1 to VSAN 20 in Service Profile

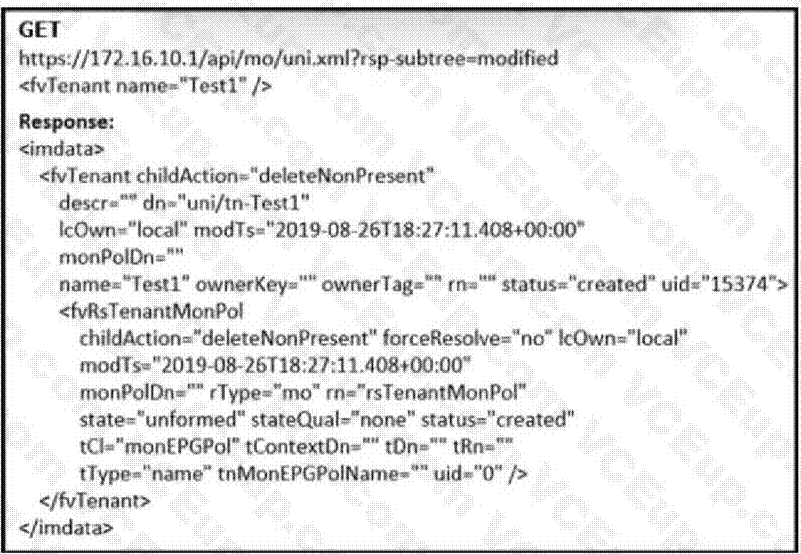

Refer to the exhibit.
An engineer performs a POST operation using REST API on the Cisco Nexus switch to retrieve a managed object, but the operation fails. Which configuration resolves the issue?
https://172.16.10.1/api/node/mo/uni/tn-Test1.xml? rsp-subtree=full&rsp-prop-include=configonly
icurl -k-v https:// 172.16.10.1/api/node/mo/uni/tn-Test1.xml? rsp-subtree=modified=config-only
https:/ 172.16.10.1/api/node/mo/uni/tn-Test1.xml? rsp-subtree=modified=config-only
icurl -k -v https://172.16.10.1/api/mo/uni.xml?rsp-subtree=no<fv Tenant name="Test1" />

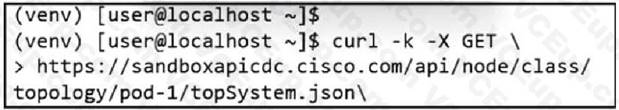

Refer to the exhibit.
The cURL command fails to complete. Which action resolves the problem?
Remove ".json\" from the URL.
Include -p "password" in the command.
Add -H "X-Auth-Token" to the command.
Change ".json" to ".xml" at the end of the URL.
Refer to the exhibit. A blade that is connected to FI-A fails to boot from a SAN LUN. The boot policy is configured to boot by using vHBA0 as the SAN Primary. Which action resolves the issue?
Change Adapter Policy to VMWare on vHBA0
Change vHBA0 to VSAN 11 in Service Profile
Configure vHBA_SAN_A zone to VSAN 10
Set VSAN to 11 in vHBA_SAN_

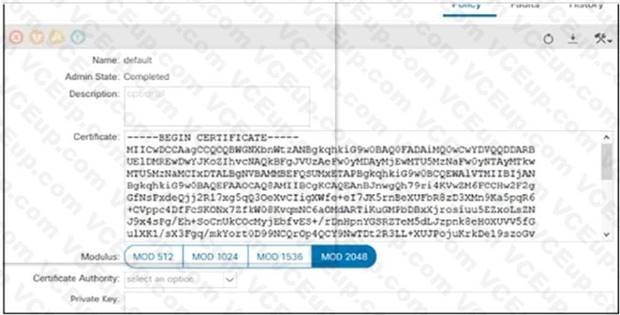

Refer to the exhibit.
A certificate is implemented on the security configuration on the Cisco ACI controller. A customer receives a "Connection Not Secure" error in a browser every time the customer logs in to the Cisco APIC GUI. Which action resolves the issue?
Include a private key with the certificate.
Use a browser that supports keys of 2048 bits.
Configure a corporate certificate authority for the certificate.
Add a 1536-bit key to the APIC GUI.

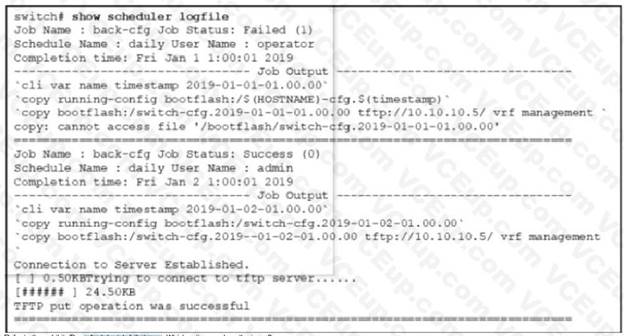

Refer to the exhibit.
The scheduler job fails to run. Which action resolves the issue?
Change the file name.
Configure the authentication credentials.
Change the TFTP server address.
Configure the RBAC authentication.
Refer to the exhibit A network administrator must provide Bash shell access to the support team for all of the Cisco Nexus 9000 Series Switches. The newly created user that is named "bashusers" fails to access the Bash shell. Which action resolves the issue?
Associate bashusers with the Cisco NX-OS vdc-admin role and activate the nxapi feature.
Associate bashusers with the Cisco NX-OS dev-ops role and activate the bash-shell feature.
Associate bashusers with the Cisco NX-OS network-admin role and activate the guestshell feature.
Associate bashusers with the Cisco NX-OS network-operator role and activate the bash-shell feature.

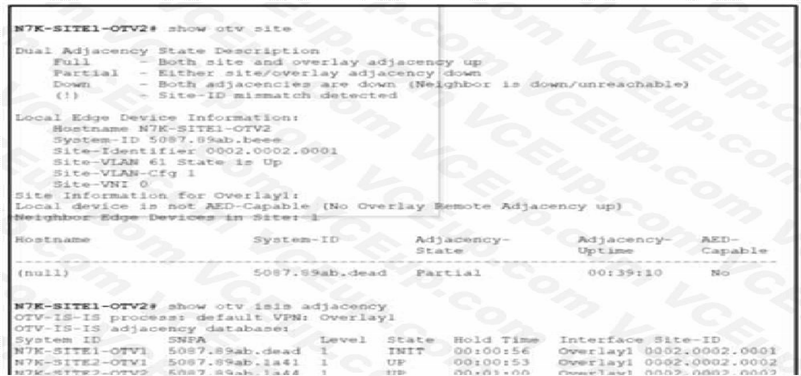

Refer to the exhibit.
The OTV overlay is deployed in multicast mode. After an unexpected reload of N7K-SITE1-OTV1, the network administrator observed that on N7K-SITE1-OTV2 the OTV site adjacency went into the partial state. Which action resolves the issue?
Configure the Site-Identifier on N7K-SITE1-OTV1 to 0002.0002.0002.
Enable IP IGMP version 3 on the join interface on N7K-SITE1-OTV1.
Change the Site-VLAN on N7K-SITE1-OTV2 to VLAN 1.
Modify the multicast data-group on N7K-SITE1-OTV1 to match N7K-SITE1-OTV2.
