Refer to the exhibit.

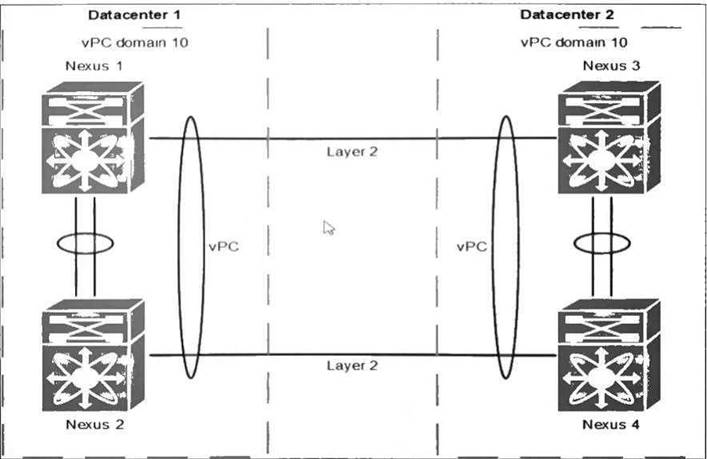

Refer to the exhibit. The administrator set up two pairs of Cisco Nexus switches. The administrator set dfferent vPC priorities on all four Nexus switches. As soon as the administrator activates the vPC between the two pairs the network faces different issues. The problems range from both Nexus pairs declare themselves as root bridge, as well as spanning-tree inconsistencies and traffic forwarding issues. Which action resolves these issues?
Change the role priority on one pair.
Configure peer-config-check-bypass on both pairs.
Configure a vPC peer link between both peers.
Change domain ID on one pair to a diferent ID.
Refer to the exhibit.

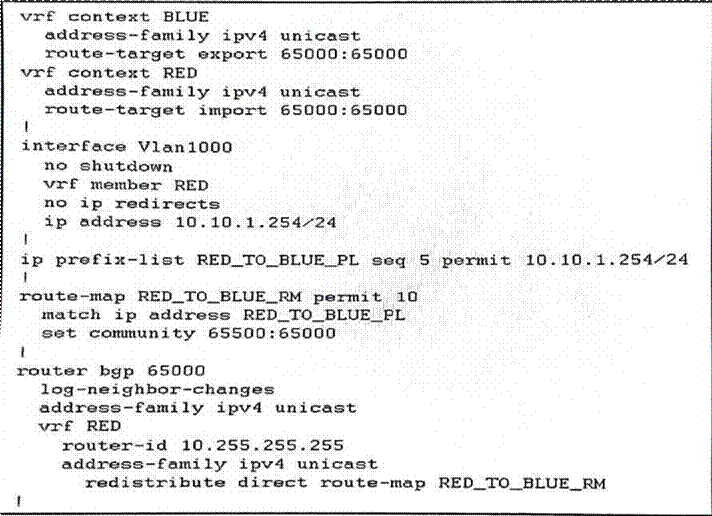

Refer to the exhibit. The expected routes are not being leaked as expected from VRF RED to VRF BLUE. Which action resolves the issue?
Include the "le 32" knob under the RED_TO_BLUE_ACL prefix list.
Change the route targets under the VRFs.
Configure VRF BLUE under the BGP configuration.
Set the community to 65000:65000 under the route map.
Refer to the exhibit.

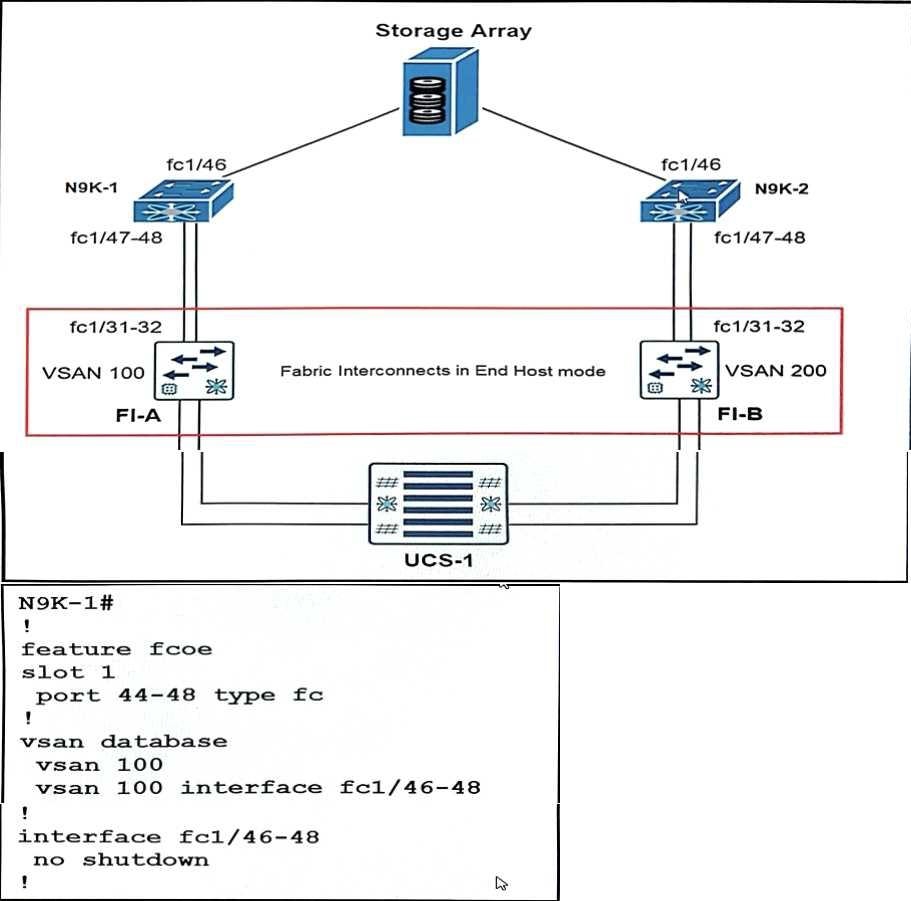

Refer to the exhibit. UCS- 1 fails to connect to the storage array. Which action resolves the issue?
Set the FI-A mode to FC End Host mode.
Enable N9K-1 mode to N-Port ID Virtualization.
Configure N-Port ID Virtualization on FI-A.
Implement N-Port Mirtualization on N9K-1.
A Cisco uCs C-Series Server powers off due to a power outage. The server should turn on when the power is restored with a fixed delay of 3 minutes. However, it remained powered off for more than 3 minutes after the engineer powered it back online. Which two actions resolve the issue (Choose two.)
Configure the power-restore-policy.
Configure the power restore last-state policy.
Set the delay value to 180.
Set the delay fixed value to 3.
Configure power sync policy.
Refer to the exhibit.

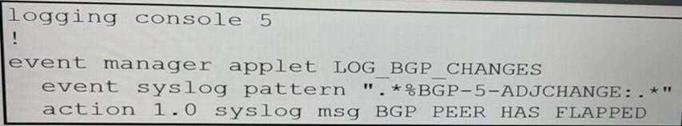

Refer to the exhibit The EEM applet must generate a syslog message whena BGP adjacency faps. This message must be displayed to the console of the switch. However, when a BGP adjacency failure is simulated, no syslog message is displayed. Which action resolves the issue?
Add the event-default action statement.
Modify the policy to use the snmp trap action.
Adjust the policy to match an SNMP OID.
Set the logging priority to Wamings.
Refer to the exhibit

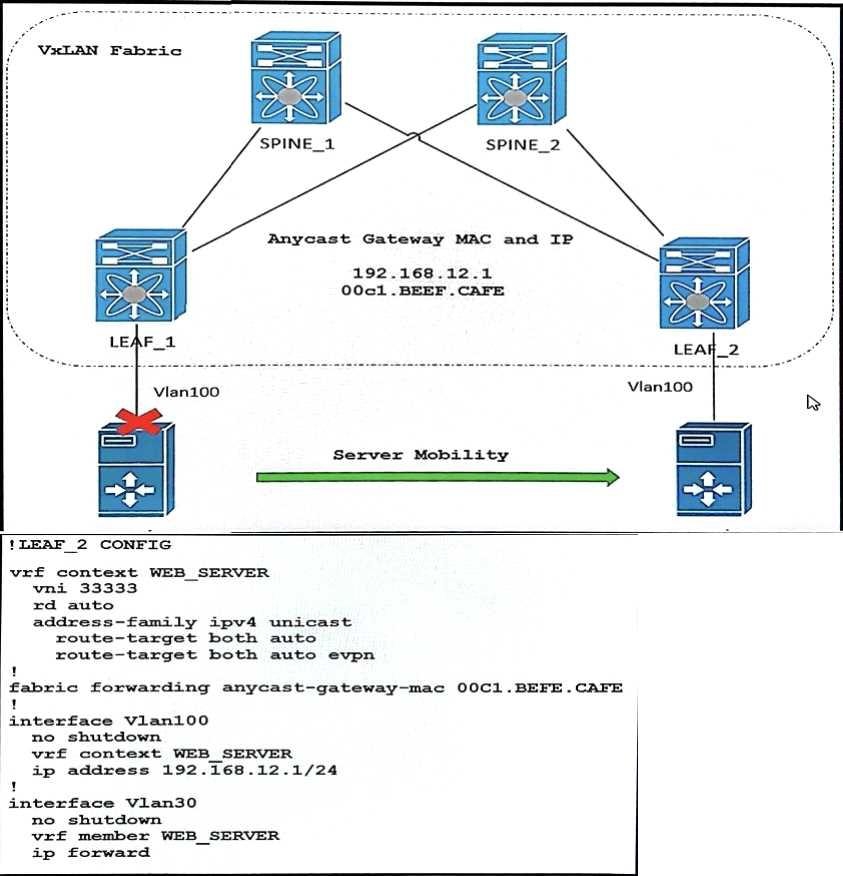

Refer to the exhibit. To avoid service disruption, an engineer must move the_ server from LEAF_ 1 to LEAF_ _2. After running the test, the engineer noticed that L EAF_ 2 failed to forward network traffic into the VXL AN fabric. The BGP, interface NVE, and VNI were confirmed to be configured as expected. Which two actions must be taken on L EAF_ 2 to resolve the issue? (Choose two.)
Change the fabric forwarding anycast-gateway-mac MAC address.
Add fabric forwarding mode anycast-gateway on interface Vlan100.
Configure correspondent IP addressing on every interface.
Remove ip forward from interface VIan30 and add it on interface Vlan100.
Enable HMM tracking to advertise host routes into the VXL AN fabric.
An engineer upgrades Cisco UCS firmware from release 3. 1(2) to release 3. 1(3) using Autolnstall.
Both fabric interconnects go ofline during the software upgrade installation and issue multiple F SM retries in the DeployPollActivate stage. Which set of actions resolves the issue?
Fix the rights to 666 with the debug plugin on the primary fabric interconnet Save the current configuration on the running fabric interconnect. Continue the upgrade on both fabric interconnects.
Enable the management interface monitoring policy on the fabric interconnects. Initiate a configuration backup on both fabric interconnects. Commit the pending fabric interconnect reboot activity.
Acknowledge the error and reboot the primary fabric interconnect. Clear the default firmware version and upload a new one. Restart the upgrade process manually.
Clear the startup version of the default infrastructure and server pack. Remove the service pack from the subordinate node. Upgrade with the Force attribute through Autolnstall.
An engineer is recovering a fabric interconnect from a failed upgrade. The engineer booted the fabric interconnect to the switch(boot)# prompt and copied all the required images. Which image must be linked to nuova-sim-mgmt-nsg.O. 1.0.XXXXXXXXX1 bin to make the management image compliant with the Cisco UCS Manager?
Kickstart
System
UCS Manager
Cisco IMC
Refer to the exhibit.

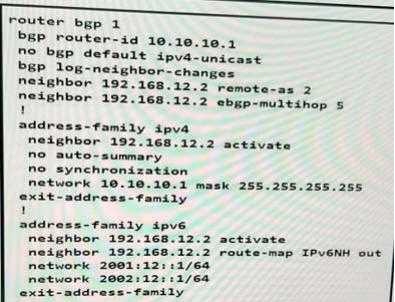

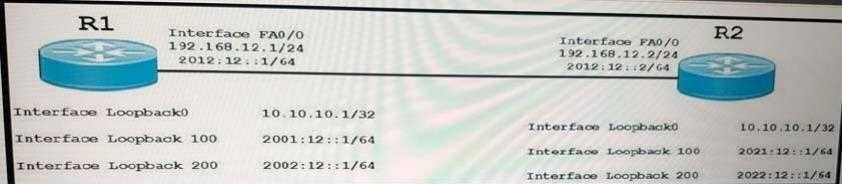

Refer to the exhibit. A network engineer must use BGP to route IPv4 and IPv6 routes between R1 and R2. The IPv4 addresses are exchanged as expected between the routers through BGP. The routers have reached an Established BGP state. However, the IPv6 routes from R2 fail to show in the routing table of R1. Which action resolves the issue?
Create a route map that sets the IPv6 next hop.
Advertise L2VPN EVPN under IPv4 unicast address family
Configure an IPv6 BGP neighbor on R1
Enable IPv6 routing on R1
Refer to the exhibit.
After an unexpected reload of the Cisco Nexus 9000 Series Switch, the network administrator noticed that one of the Software Maintenance Upgrades (SMU) images is inactive. The engineer must ensure that the package remains active after the switch is reloaded in the future. Which action accomplishes this goal?
Commit the package using the install commit command.
Save the running configuration after activating the package.
Deactivate and uninstall the active core package.
Copy the SMU package file on the bootflash.
