An engineer working for telecommunication company with an employee id: 3715 15 021 needs to secure the LAN network using a prefix list Which best practice should the engineer follow when he implements a prefix list?
An engineer must use non sequential sequence numbers in the prefix list so that he can insert additional entries later.
The final entry in a prefix list must be /32
An engineer must identity the prefix list with a number only
An engineer must include only the prefixes for which he needs to log activity.

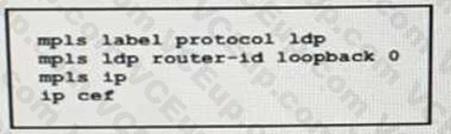

Refer to the exhibit:
A network operator working for service provider with an employee id 3715 15:021 applied this configuration to a router.
Which additional step should the engineer use to enable LDP?
Disable Cisco Express Forwarding globally
Delete the static router ID
Enable MPLS LDP on the interface
Configure the both keyword to enable LDP globally
Which configuration mode do you use to apply the mpls Idp graceful-restart command in IOS XE Software? MPLS
MPLS
LDP neighbor
global
interface
Which statement describes the advantage of a Multi-Layer control plane?
It automatically provisions monitors, and manages traffic across Layer 0 to Layer 3
It minimizes human error configuring converged networks
It supports dynamic wavelength restoration in Layer 0
It provides multivendor configuration capabilities for Layer 3 to Layer 1
Refer to the exhibit:
Which statement about the status of the neighbor relationship between R1 and R2 is true?
The neighbor relationship is down because the two routers are configured with different area types
The neighbor relationship is down because the two routers are in the same subnet.
The neighbor relationship is up because R2 is level 1 and level 2 router.
The neighbor relationship is down because R2 is operating as a Level 1 router and the two routers are in different area

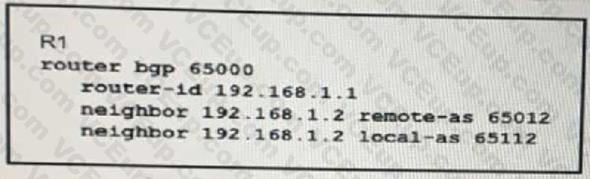

Refer to the exhibit:
A network engineer is implementing a BGP protocol. Which effect of the local-as keyword in this configuration is true?
It enables peer 192.168.1.2 to establish a BGP relationship with R1 using AS 65012 and the VPNv4 address family
It enables peer 192.168.1.2 to establish a BGP relationship with R1 using AS 65012 without additional configuration
It enables peer 192.168.1.2 to establish a BGP relationship with R1 using AS 65112 and the VPNv4 address family
It enables peer 192.168.1.2 to establish a BGP relationship with R1 using AS 65112 without additional configuration.

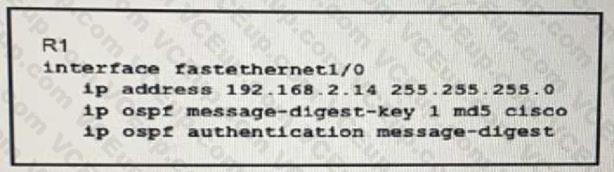

Refer to the exhibit:
Which condition must be met by the OSPF peer of router R1 before the two devices can establish communication?
The interface on the OSPF peer must use the same key ID and key value as the configured interface
The interface on the OSPF peer may have a different key ID, but it must use the same key value as the configured interface
The OSPF peer must be configured as an OSPF stub router
The OSPF peer must use clear-text authentication

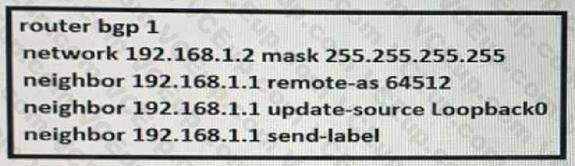

Refer to the exhibit:
Which statement about the neighbor statements for 192.168.1.1 is true?
The router must have TDP configured for the send-label command to operate
The neighbor router receives at least four labels from this router
The router sends BGP labels for its prefixes to this peer
The router sends only a label for the prefix for LoopbackO.
Which regular expression query modifier function indicates the start of a string?
^
[^]
+
$

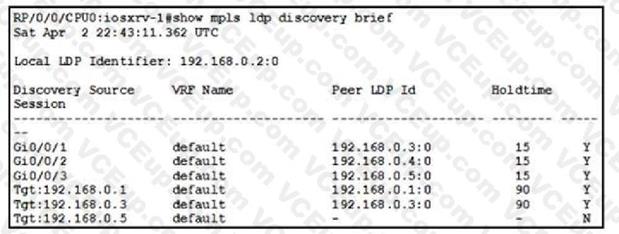

Refer to the exhibit:
With which router does IOSXRV-1 have LDP session protection capability enabled but session hold up is not active?
192.168.0.1
192.168.0.3
192.168.0.4
192.168.0.5
