Question 1

Report
Export
Collapse

Which authentication method allows a user to log in to an SSO-enabled Cisco Unified Communications application by utilizing a Microsoft Windows login, thereby not requiring any credentials to be entered?

A.

Smart Card

A.

Smart Card

Answers
B.

OAuth

B.

OAuth

Answers
C.

form-based

C.

form-based

Answers
D.

Kerberos

D.

Kerberos

Answers
Suggested answer: B

Explanation:


Question 2

Report
Export
Collapse

When Cisco IM and Presence is configured to use automatic fallback, how long does the Server Recovery Manager service wait for a failed service/server to remain active before an automatic fallback is initiated?

A.

10 minutes

A.

10 minutes

Answers
B.

20 minutes

B.

20 minutes

Answers
C.

30 minutes

C.

30 minutes

Answers
D.

1 hour

D.

1 hour

Answers
Suggested answer: C

Explanation:

Reference: <https://www.cisco.com/c/en/us/support/docs/unified-communications/unifiedcommunications-manager-im-presence-service/200958-IM-and-Presence-Server-High-Availability.html>Automatic FallbackAutomatic fallback takes place when the server monitors the services and the Server RecoveryManager(SRM) service will automatically fallback users to their homed nodes. The key in thisconfiguration is that the Server Recovery Manager(SRM) service will wait

30 minutes for a failedservice/server to remain active before an automatic fallback is initiated. Once this 30 minute up timeis established, user sessions are moved back to their homed nodes. The Jabber client will apply there-log in upper and lower limits for the fallback. Automatic fallback is not the default configuration,but it can be enabled. To enable automatic fallback, change the Enable Automatic Fallbackparameter in the Server Recovery Manager Service Parameters to value True.

Question 3

Report
Export
Collapse

Which entity is a standard component used for authentication by SAML 2.0?

A.

identity provider

A.

identity provider

Answers
B.

session broker

B.

session broker

Answers
C.

Internet service provider

C.

Internet service provider

Answers
D.

client access server

D.

client access server

Answers
Suggested answer: A

Question 4

Report
Export
Collapse

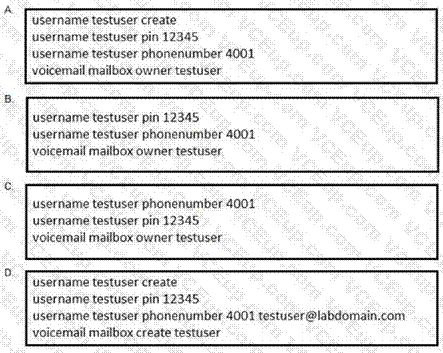

An engineer must configure a test user mailbox in a newly deployed Cisco Unity Express module.

Which console command set reflects the correct configuration in this scenario?

A.

Option A

A.

Option A

Answers
B.

Option B

B.

Option B

Answers
C.

Option C

C.

Option C

Answers
D.

Option D

D.

Option D

Answers
Suggested answer: A

Question 5

Report
Export
Collapse

Which two command line arguments can you specify when installing Cisco Jabber for windows?

(Choose two.)

A.

CISCO_UDS_DOMAIN

A.

CISCO_UDS_DOMAIN

Answers
B.

TFTP_ADDRESS

B.

TFTP_ADDRESS

Answers
C.

VOICEMAIL_SERVER_ADDRESS

C.

VOICEMAIL_SERVER_ADDRESS

Answers
D.

SERVICES_DOMAIN

D.

SERVICES_DOMAIN

Answers
E.

TFTP

E.

TFTP

Answers
Suggested answer: D, E

Explanation:

Reference: https://www.cisco.com/c/en/us/td/docs/voice_ip_comm/jabber/11_0/CJAB_BK_D657A25F_00_deployment-installation-guide-jabber-110/CJAB_BK_D657A25F_00_deployment- installation-guide-jabber- 110_chapter_01100.html#JABW_RF_CE43EF4C_00

Question 6

Report
Export
Collapse

Which description of an IdP server is true?

A.

authenticates user credentials

A.

authenticates user credentials

Answers
B.

provides user authorization

B.

provides user authorization

Answers
C.

is an authentication request that is generated by a Cisco Unified Communications application

C.

is an authentication request that is generated by a Cisco Unified Communications application

Answers
D.

consists of pieces of security information that are transferred to the service provider for user authentication

D.

consists of pieces of security information that are transferred to the service provider for user authentication

Answers
Suggested answer: A

Explanation:

SSO uses Security Assertion Markup Language (SAML) to exchange authentication details between an Identity Provider (IdP) and a service provider. The identity provider authenticates user credentials and issues SAML assertions, which are pieces of security information transferred from the identity provider to the service provider for user authentication. Each assertion is an XML document that contains trusted statements about a subject including, for example, username and privileges. SAML assertions are usually digitally signed to ensure their authenticity.

Reference:

https://www.cisco.com/c/en/us/td/docs/voice_ip_comm/cust_contact/contact_center/crs/express_11_6_2/features/guide/uccx_b_features-guide-1162/uccx_b_features-guide- 1162_chapter_010.html#concept_D4C0DDEE975FE5C9416479AB5D778237

Question 7

Report
Export
Collapse

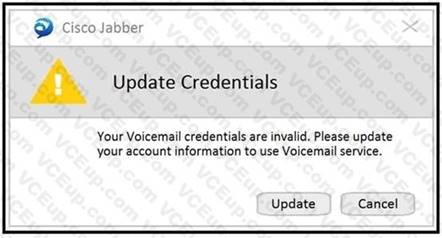

Refer to the exhibit.

Which action allows a remote Cisco Jabber user utilizing Mobile and Remote Access to automatically log in to a Cisco Unity Connection voicemail box via OAuth?

A.

Add CUCM under System Settings > Authz Servers in Cisco Expressway-E.

A.

Add CUCM under System Settings > Authz Servers in Cisco Expressway-E.

Answers
B.

Add CUCM under System Settings > Authz Servers in Cisco Expressway-C.

B.

Add CUCM under System Settings > Authz Servers in Cisco Expressway-C.

Answers
C.

Add CUCM under System Settings > Authz Servers in Cisco Unity.

C.

Add CUCM under System Settings > Authz Servers in Cisco Unity.

Answers
D.

Add CUCM under System Settings > Authz Servers in Cisco Unity Connection.

D.

Add CUCM under System Settings > Authz Servers in Cisco Unity Connection.

Answers
Suggested answer: D

Explanation:

Reference: https://community.cisco.com/t5/unified-communications/jabber-mra-unity-voice-mailintegration-issue/td-p/3195653

Question 8

Report
Export
Collapse

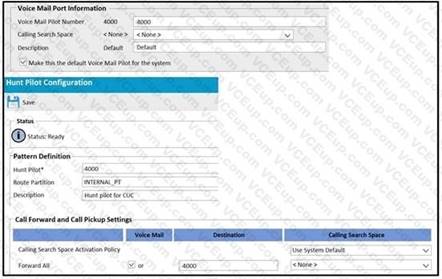

Refer to the exhibit.

Cisco Unity Connection and Cisco Unified Communications Manager are integrated by using SCCP.

The Voice Mail Ports are registered. Users report that calls fail when forwarded to voicemail. Which is a cause of the issue?

A.

The call forward and call pickup settings do not have a CSS on Forward All.

A.

The call forward and call pickup settings do not have a CSS on Forward All.

Answers
B.

The Voice Mail Port partition on the CSS of the phone is missing.

B.

The Voice Mail Port partition on the CSS of the phone is missing.

Answers
C.

The Voice Mail Pilot is not configured with a CSS that contains the INTERNAL_PT.

C.

The Voice Mail Pilot is not configured with a CSS that contains the INTERNAL_PT.

Answers
D.

The CSS on the Voice Mail Pilot is missing partitions for user phones.

D.

The CSS on the Voice Mail Pilot is missing partitions for user phones.

Answers
Suggested answer: C

Question 9

Report
Export
Collapse

Refer to the exhibit.

Which end-user option can resolve this issue?

A.

Standard CTI Reception of SRTP Key Material

A.

Standard CTI Reception of SRTP Key Material

Answers
B.

Standard CTI Allow Calling Number Modification

B.

Standard CTI Allow Calling Number Modification

Answers
C.

Standard CTI Allow Control of Phones Supporting Rollover Mode

C.

Standard CTI Allow Control of Phones Supporting Rollover Mode

Answers
D.

Standard CTI Allow Call Monitoring

D.

Standard CTI Allow Call Monitoring

Answers
Suggested answer: C

Explanation:

https://community.cisco.com/t5/collaboration-applications/jabber-for-windows-cannot-control-8841-desk-phone/td-p/2569503

Question 10

Report
Export
Collapse

Which function of the Cisco IM and Presence high availability solution is true?

A.

When the server has been restored to a normal state, user sessions remain on the backup server.

A.

When the server has been restored to a normal state, user sessions remain on the backup server.

Answers
B.

When an event takes place, the end user sessions are not moved from the failed server to the backup.

B.

When an event takes place, the end user sessions are not moved from the failed server to the backup.

Answers
C.

When the server has been restored, the server automatically fails back.

C.

When the server has been restored, the server automatically fails back.

Answers
D.

When a high availability event takes place, the end user sessions are moved from the failed server to the backup.

D.

When a high availability event takes place, the end user sessions are moved from the failed server to the backup.

Answers
Suggested answer: D

Explanation:

Reference: https://www.cisco.com/c/en/us/support/docs/unified-communications/unifiedcommunications-manager-im-presence-service/200958-IM-and-Presence-Server-High-Availability.html
