Cisco 300-810 Practice Test - Questions Answers, Page 3

Add to Whishlist

List of questions

Question 21

Report Export Collapse

Which service must be activated on Cisco Unity Connection to utilize LDAP synchronization?

Cisco Tomcat

Cisco Tomcat

Cisco Sync Agent

Cisco Sync Agent

Cisco DirSync

Cisco DirSync

Cisco RIS Data Collector

Cisco RIS Data Collector

Suggested answer: C
Explanation:

Reference:

https://www.cisco.com/c/en/us/td/docs/voice_ip_comm/connection/10x/administration/guide/10xcucsagx/10xcucsag120.html

asked 10/10/2024
Arun kumar
41 questions

Question 22

Report Export Collapse

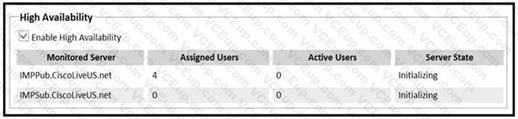

Refer to the exhibit.

Cisco 300-810 image Question 22 114715 10102024232812000000

After configuration of the Cisco IM&P cluster in high-availability mode, both IM&P servers remain in the initializing state. Which two actions ensure normal operations of this IM&P high-availability cluster? (Choose two.)

Clear the Enable High Availability check box in the Presence Redundancy Group configuration.

Clear the Enable High Availability check box in the Presence Redundancy Group configuration.

Confirm that Cisco Presence Engine, Cisco XCP Router, and Cisco DB services are up and running on both IM&P servers.

Confirm that Cisco Presence Engine, Cisco XCP Router, and Cisco DB services are up and running on both IM&P servers.

Restart the Server Recovery Manager service in Cisco Unified Serviceability – Network Services on both IM&P servers.

Restart the Server Recovery Manager service in Cisco Unified Serviceability – Network Services on both IM&P servers.

Verify that the Cisco XCP SIP Federation Connection Manager service is running.

Verify that the Cisco XCP SIP Federation Connection Manager service is running.

Ensure that an equal number of users are assigned to each IM&P server.

Ensure that an equal number of users are assigned to each IM&P server.

Suggested answer: B, C
Explanation:

https://www.cisco.com/c/en/us/support/docs/unified-communications/unified-communicationsmanager-im-presence-service/200958-IM-and-Presence-Server-High-Availability.html

asked 10/10/2024
Nabil MHB
52 questions

Question 23

Report Export Collapse

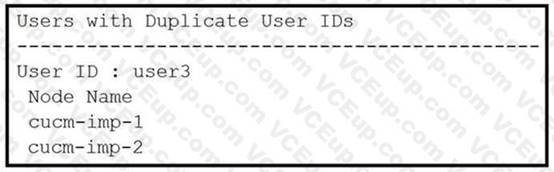

Refer to the exhibit.

Cisco 300-810 image Question 23 114716 10102024232812000000

Which two steps resolve the “Users with Duplicate User IDs” message? (Choose two.)

Rename the directory URI value for one of the users to ensure that there is no duplication.

Rename the directory URI value for one of the users to ensure that there is no duplication.

Rename the User ID value for one user if different users on different clusters have the same User ID assigned.

Rename the User ID value for one user if different users on different clusters have the same User ID assigned.

Unassign a user from one of the clusters when the same user is assigned to two different clusters.

Unassign a user from one of the clusters when the same user is assigned to two different clusters.

Assign the duplicate user to the secondary Cisco IM and Presence node.

Assign the duplicate user to the secondary Cisco IM and Presence node.

Delete the user ID for the duplicate user ID.

Delete the user ID for the duplicate user ID.

Suggested answer: B, C
Explanation:

Reference: https://www.cisco.com/c/en/us/td/docs/voice_ip_comm/cucm/im_presence/configAdminGuide/10_0_1/CUP0_BK_C318987B_00_config-admin-guide-imp-100/CUP0_BK_C318987B_00_config-admin-guide-imp- 100_chapter_010101.html

asked 10/10/2024
Bradley Coetzee
36 questions

Question 24

Report Export Collapse

Refer to the exhibit.

Cisco 300-810 image Question 24 114717 10102024232812000000

Which statement is true?

If the IM&P node in sub-cluster-1 goes down, then users assigned to it are randomly split between the two remaining subclusters.

If the IM&P node in sub-cluster-1 goes down, then users assigned to it are randomly split between the two remaining subclusters.

The administrator must add one node to each subcluster for high availability.

The administrator must add one node to each subcluster for high availability.

IM&P nodes in each subscluster must be configured from the same OVA template.

IM&P nodes in each subscluster must be configured from the same OVA template.

Each Cisco IM&P subcluster must have the same number of nodes.

Each Cisco IM&P subcluster must have the same number of nodes.

Suggested answer: B
asked 10/10/2024
Katherine Messick
43 questions

Question 25

Report Export Collapse

In the integration of Cisco Unity Connection using SIP, which SIP trunk security profile option is required for MWI to work correctly?

Accept out-of-dialog refer

Accept out-of-dialog refer

Accept replaces header

Accept replaces header

Accept unsolicited notification

Accept unsolicited notification

Accept presence subscription

Accept presence subscription

Suggested answer: C
Explanation:

Reference:

https://community.cisco.com/t5/collaboration-voice-and-video/understanding-troubleshootingmwi-on-unity-connection/ta-p/3162948

https://www.cisco.com/c/en/us/td/docs/voice_ip_comm/cucm/security/9_0_1/secugd/CUCM_BK_CCB00C40_00_cucm-security-guide-90/CUCM_BK_CCB00C40_00_cucm-securityguide_chapter_011001.pdf

asked 10/10/2024
Sukhpreet Sidhu
44 questions

Question 26

Report Export Collapse

Which SIP request type is used by Cisco Unity Connection to inform Cisco Unified Communications manager that the Message Waiting Indicator must be turned on or off for a specific line?

NOTIFY

NOTIFY

UPDATE

UPDATE

SUBSCRIBE

SUBSCRIBE

PUBLISH

PUBLISH

Suggested answer: A
asked 10/10/2024
Joel Vasco Rodriguez
52 questions

Question 27

Report Export Collapse

Which Cisco Unified Communications Manager menu path is used to configure Cisco IM and Presence Server High Availability?

System > LDAP > LDAP Directory

System > LDAP > LDAP Directory

System > Geolocation Configuration

System > Geolocation Configuration

System > Presence Redundancy Groups

System > Presence Redundancy Groups

System > Server

System > Server

Suggested answer: C
Explanation:

Reference: https://www.cisco.com/c/en/us/support/docs/unified-communications/unifiedcommunications-manager-im-presence-service/200958-IM-and-Presence-Server-High-Availability.html#anc4

asked 10/10/2024
Dario Esposito
44 questions

Question 28

Report Export Collapse

Which SAML component specifies the mapping of SAML assertion protocol message exchanges with standard messaging formats or communication protocols such as SOAP exchanges?

SAML binding

SAML binding

SAML assertion

SAML assertion

SAML profiles

SAML profiles

SAML protocol

SAML protocol

Suggested answer: A
Explanation:

Reference: https://en.wikipedia.org/wiki/Security_Assertion_Markup_Language

asked 10/10/2024
Ronald Zegwaard
46 questions

Question 29

Report Export Collapse

Which two Cisco Unity Connection logs are used to troubleshoot issues with Message Waiting Indicators? (Choose two.)

Connection IMAP Server

Connection IMAP Server

Connection Mailbox Sync

Connection Mailbox Sync

Connection Notifier

Connection Notifier

Connection Message Transfer Agent

Connection Message Transfer Agent

Connection Conversation Manager

Connection Conversation Manager

Suggested answer: C, E
Explanation:

https://www.cisco.com/c/en/us/td/docs/voice_ip_comm/connection/11x/troubleshooting/guide/b_11xcuctsg/b_11xcuctsg_chapter_0101.html#ID-2398-00000004

asked 10/10/2024
Allen Yang
38 questions

Question 30

Report Export Collapse

When trying to send a call out of Cisco Unity Connection, what happens when enabling the transfer to an alternate contact number, located under caller input?

The restriction table is checked when an administrator changes the extension number via the Cisco Unity Connection admin page.

The restriction table is checked when an administrator changes the extension number via the Cisco Unity Connection admin page.

The restriction table is not checked when an administrator changes the extension number via the Cisco Unity Connection admin page.

The restriction table is not checked when an administrator changes the extension number via the Cisco Unity Connection admin page.

The restriction table is not checked when a user changes the extension number via a TUI conversation.

The restriction table is not checked when a user changes the extension number via a TUI conversation.

The restriction table is not checked when a user changes extension number via the Cisco Unity Connection Cisco PCA page.

The restriction table is not checked when a user changes extension number via the Cisco Unity Connection Cisco PCA page.

Suggested answer: B
Explanation:

Reference: https://www.cisco.com/c/en/us/support/docs/unified-communications/unityconnection/117559- probsol-transferfailure-00.html

asked 10/10/2024
Massimiliano Parisi
45 questions
Total 211 questions
Go to page: of 22
