Question 31
Which statement about SIP federation between Cisco Unified Communications IM and Presence and Microsoft Skype for Business is true?
Add the federated user as a contact in Jabber to view its presence status.
The role of SIP Proxy service is to process the XMPP packet in from Jabber and convert it to SIP.
TLS is optional.
Use of directory URI as an IM addressing scheme is not supported.
Reference: https://www.cisco.com/c/en/us/td/docs/voice_ip_comm/cucm/im_presence/interdomain_federation/12_5_1/cup0_b_interdomain-federation-1251/cup0_b_interdomainfederation-1251_chapter_01000.html
Question 32
Which two child elements can be in an XMPP message stanza? (Choose two.)
<server/>
<error/>
<client/>
<body/>
<subject/>
As described under extended namespaces, a message stanza MAY contain any properly-namespaced child element.
In accordance with the default namespace declaration, by default a message stanza is qualified by the 'jabber:client' or 'jabber:server' namespace, which defines certain allowable children of message stanzas. If the message stanza is of type "error", it MUST include an <error/> child; for details, see [XMPP-CORE]. Otherwise, the message stanza MAY contain any of the following child elements without an explicit namespace declaration:
<subject/>
<body/>
<thread/>
Question 33
Users report issues while logging in to their voicemail using the Voicemail tab in their Cisco Jabber clients. The issue occurs after users provide valid Cisco Unified Communications credentials, but they receive a failure message. What is the cause of this issue?
A proper service profile is not configured on Cisco Unified Communications Manager.
The voicemail users are not configured in the Cisco Unity Connection server.
The web application voicemail password is set “User Must Change at Next Sign-in”.
The voicemail password is not set for all users.
https://www.cisco.com/c/en/us/support/docs/unified-communications/jabber-windows/116517-problem-jabber-00.html
Question 34
Secure XMPP communication is required for XMPP federation with external domains and the Cisco IM and Presence. Which certificate is used for XMPP interdomain federation when connecting to an externally federated domain?
cup
cup-xmpp
cup-xmpp-s2s
Tomcat
CUP-XMPP-S2S (Cisco Unified Presence - Extensible Messaging and Presence Protocol - Server to Server) Certificate • Used to validate secure connection for XMPP interdomain federation with externally federated XMPP system.
Question 35
Digital networking is configured between two Cisco Unity Connection clusters using an HTTPSconnection. Which two objects are replicated between these two clusters? (Choose two.)
partitions and search spaces
user greetings
user templates and user greetings
call handlers
users and their corresponding mailboxes
Reference:
https://www.cisco.com/c/en/us/td/docs/voice_ip_comm/connection/10x/https_networking/guide/10xcuchttpsnetx/10xcuchttpsnet010.html
Question 36

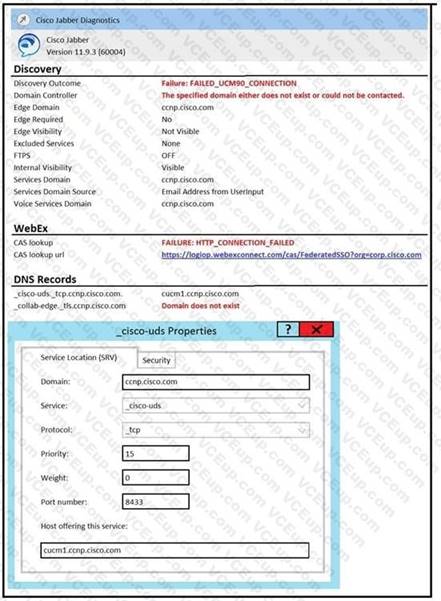

Refer to the exhibit.
Users connected to the internal network report a “Cannot communicate with the server” error while trying to log in to Cisco Jabber using auto service discovery. The Jabber diagnostics and the SRV record configuration are as shown in the exhibit. The host cucm1.ccnp.cisco.com is correctly resolved by the user desktops with the Cisco Unified Communications Manager IP address. Why is the user not able to log in?
SRV protocol is not set up correctly. It should be _tls instead of _tcp.
Marking weight as 0 on the SRV record makes it inactive, so Jabber cannot discover the Cisco Unified CM.
The port specified on the SRV record is wrong.
The domain ccnp.cisco.com does not exist on the DNS server.
Reference: https://community.cisco.com/t5/collaboration-voice-and-video/jabber-client-login-andlogin-issues/ ta-p/3143446
https://www.cisco.com/c/en/us/td/docs/voice_ip_comm/jabber/Windows/9_7/CJAB_BK_C606D8A9_00_cisco-jabber-dns-configuration-guide/CJAB_BK_C606D8A9_00_cisco-jabber-dns-configurationguide_chapter_010.html
Question 37
To redirect calls from the phone extension for user A to the voicemail greeting, which call routing rule should be used in Cisco Unity Connection?
Attempt Forward forwarded routing rule
Opening Greeting direct routing rule
Attempt Sign-In direct routing rule
Opening Greeting forwarded routing rule
Reference: https://community.cisco.com/t5/collaboration-voice-and-video/unity-connection-callrouting-logic/ta- p/3162560
Question 38
An end user opened a ticket, stating that before logging in to Jabber for Windows, a warning is displayed that a server certificate has expired. Which two certificates must be verified on the Cisco Unified Communications Manager and IM&P deployment? (Choose two.)
capf on Cisco Unified CM
cup-xmpp on IM&P
callmanager on Cisco Unified CM
tomcat on Cisco Unified CM
cup on IM&P
https://www.cisco.com/c/en/us/support/docs/unified-communications/unified-presence/116917-technote-certificate-00.html
Question 39

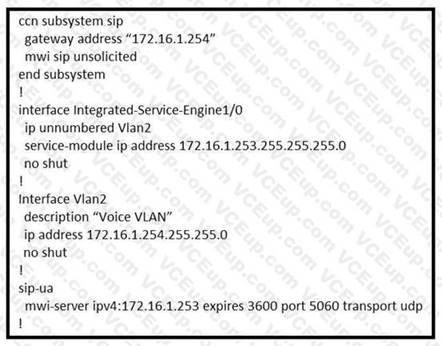

Refer to the exhibit.
A collaboration engineer has integrated Cisco Unity Express with Cisco Unified Communications Manager Express and is experimenting with the MWI feature. With the current configuration, no MWI change occurs when leaving new messages or after playing new messages. Which two changes are needed to correct the configuration? (Choose two.)
ccn subsystem sip mwi sip outcall
ccn subsystem sip mwi envelop-info
sip-ua no mwi-server mwi-server ipv4:172.16.1.254 expires 3600 port 5060 transport udp
ccn subsystem sip mwi sub-notify
sip-ua no mwi-server mwi-server ipv4:172.16.1.253 expires 3600 port 5060 transport tcp notify
sip-ua no mwi-server mwi-server ipv4:172.16.1.253 expires 3600 port 5060 transport udp unsolicited
Question 40

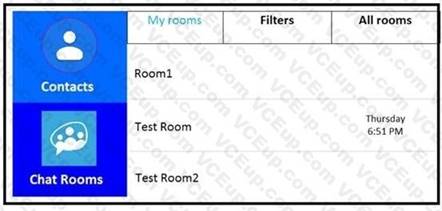

Refer to the exhibit.
Users report that they cannot see the Chat Rooms icon on their Cisco Jabber clients. This feature works without issue in the lab. An engineer reviews the Cisco IM&P and Jabber configuration and finds that the jabber-config.xml file is configured properly to support this feature. Which activity should be performed on the IM&P server to resolve this issue?
Activate Cisco XCP Connection Manager in Cisco Unified Serviceability > Tools > Service Activation.
Restart Cisco XCP Message Archiver in Cisco Unified Serviceability > Tools > Control Center – Feature Services.
Restart XCP Text Conference Manager in Cisco Unified Serviceability > Tools > Control Center – Network Services.
Activate XCP Text Conference Manager in Cisco Unified Serviceability > Tools > Service Activation.
Reference: https://www.cisco.com/c/en/us/support/docs/unified-communications/jabberwindows/118684- probsol-chat-00.html
