When does a Cisco StackWise primary switch lose its role?

when a switch with a higher priority is added to the stack

when the stack primary is reset

when a switch with a higher priority is added to the stack

when the priority value of a stack member is changed to a higher value

Refer to the exhibit. What are two results of the NAT configuration? (Choose two.)

A packet that is sent to 200.1.1.1 from 10.1.1.1 is translated to 209.165.201.1 on R1.

R1 looks at the destination IP address of packets entering S0/0 and destined for inside hosts.

Packets with a destination of 200.1.1.1 are translated to 10.1.1.1 or .2. respectively.

A packet that is sent to 200.1.1.1 from 10.1.1.1 is translated to 209.165.201.1 on R1.

R1 looks at the destination IP address of packets entering S0/0 and destined for inside hosts.

R1 processes packets entering E0/0 and S0/0 by examining the source IP address.

R1 is performing NAT for inside addresses and outside address.

Refer to the exhibit. Clients report that they cannot connect to this SSID using the provided PSK.Which action will resolve this issue?

Apply the correct interface to this WLAN.

Select the PSK under authentication key management.

Define the correct Radio Policy.

How do the RIB and the FIB differ?

RIB is derived from the control plane, and the FIB is derived from the RIB.

FIB contains routes learned through a dynamic routing protocol, and the RIB contains routes that are static or directly connected.

RIB contains the interface for a destination, and the FIB contains the next hop information.

FIB is derived from the control plane, and the RIB is derived from the data plane.

RIB is derived from the control plane, and the FIB is derived from the RIB.

How do stratum levels relate to the distance from a time source?

Stratum 0 devices are connected directly to an authoritative time source.

Stratum 1 devices are connected directly to an authoritative time source.

Stratum 15 devices are connected directly to an authoritative time source

Stratum 0 devices are connected directly to an authoritative time source.

Stratum 15 devices are an authoritative time source.

Refer to the exhibit. Both controllers are in the same mobility group. Which result occurs when client 1 roams between APs that are registered to different controllers in the same WLAN?

The client database entry moves from controller A to controller B.

Client 1 contact controller B by using an EoIP tunnel.

CAPWAP tunnel is created between controller A and controller B.

Client 1 users an EoIP tunnel to contact controller A.

The client database entry moves from controller A to controller B.

the following system log message is presented after a network administrator configures a GRE tunnel:%TUN-5-RECURDOWN Interface Tunnel 0 temporarily disabled due to recursive routing.Why is tunnel 0 disabled?

Because the best path to the tunnel destination is through the tunnel itself

Because dynamic routing is not enabled

Because the tunnel cannot reach its tunnel destination

Because the best path to the tunnel destination is through the tunnel itself

Because the router cannot recursively identify its egress forwarding interface

Which two results occur if Cisco DNA center loses connectivity to devices in the SD-ACCESS fabric?(Choose two)

User connectivity is unaffected

Cisco DNA Center is unable to collect monitoring data in Assurance

All devices reload after detecting loss of connection to Cisco DNA Center

Already connected users are unaffected, but new users cannot connect

User connectivity is unaffected

Cisco DNA Center is unable to collect monitoring data in Assurance

Witch two actions provide controlled Layer 2 network connectivity between virtual machines running on the same hypervisor? (Choose two.)

Use a virtual switch provided by the hypervisor.

Use a virtual switch running as a separate virtual machine.

Use a single trunk link to an external Layer2 switch.

Use a virtual switch provided by the hypervisor.

Use a virtual switch running as a separate virtual machine.

Use a single routed link to an external router on stick.

Use VXLAN fabric after installing VXLAN tunneling drivers on the virtual machines.

Refer to the exhibit. Refer to the exhibit. Which command allows hosts that are connected to FastEthernet0/2 to access the Internet?

ip nat inside source list 10 interface FastEthernet0/1 overload

ip nat inside source list 10 interface FastEthernet0/2 overload

ip nat outside source list 10 interface FastEthernet0/2 overload

ip nat outside source static 209.165.200.225 10.10.10.0 overload

Which A record type should be configured for access points to resolve the IP address of a wireless LAN controller using DNS?

CISCO-CAPWAP-CONTROLLER.localdomain

CISCO.CAPWAP.CONTROLLER.localdomain

CISCO-CAPWAP-CONTROLLER.localdomain

Which activity requires access to Cisco DNA Center CLI?

graceful shutdown of Cisco DNA Center

provisioning a wireless LAN controller

creating a configuration template

upgrading the Cisco DNA Center software

graceful shutdown of Cisco DNA Center

Refer to the exhibit. Refer to the exhibit. An engineer must configure an ERSPAN tunnel that mirrors traffic from linux1 on Switch1 to Linux2 on Switch2. Which command must be added to the destination configuration to enable the ERSPAN tunnel?

(config-mon-erspan-dst-src)# erspan-id 110

(config-mon-erspan-dst-src)# origin ip address 172.16.10.10

(config-mon-erspan-dst-src)# erspan-id 172.16.10.10

(config-mon-erspan-dst-src)# no shut

(config-mon-erspan-dst-src)# erspan-id 110

What are two characteristics of Cisco SD-Access elements? (Choose two.)

The border node is required for communication between fabric and nonfabric devices.

The control plane node has the full RLOC-to-EID mapping database.

The border node is required for communication between fabric and nonfabric devices.

Traffic within the fabric always goes through the control plane node.

Fabric endpoints are connected directly to the border node.

The control plane node has the full RLOC-to-EID mapping database.

The border node has the full RLOC-to-EID mapping database.

SIMULATIONBGP connectivity exists between Headquarters and both remote sites; however, Remote Site 1 cannot communicate with Remote Site 2. Configure BGP according to the topology to goals:

Configure R1 and R3 under the BGP process to provide reachability between Remote Site 1 and Remote Site 2. No configuration changes are permitted on R2.

Ensure that the /32 networks at Remote Site 1 and Remote Site 2 can ping each other. R1 R3

Refer to the exhibit. Refer to the exhibit. R1 and R2 are directly connected, but the BGP session does not establish. Which action must be taken to build an eBGP session?

Configure no neighbor 192.168.12.1 shutdown under R2 BGP process.

Configure ip route 1.1.1.1 0.0.0.0 192.168.12.1 on R2.

Configure neighbor 192.168.12.1 activate under R2 BGP process.

Configure neighbor 2.2.2.2 remote-as 65002 under R1 BGP process.

Configure no neighbor 192.168.12.1 shutdown under R2 BGP process.

Which signal strength and noise values meet the minimum SNR for voice networks?

signal strength -67 dBm, noise 91 dBm

signal strength -69 dBm, noise 94 dBm

signal strength -68 dBm, noise 89 dBm

signal strength -66 dBm, noise 90 dBm

Which two methods are used by an AP that is typing to discover a wireless LAN controller? (Choose two.)

broadcasting on the local subnet

Cisco Discovery Protocol neighbour

broadcasting on the local subnet

DNS lookup cisco-DNA-PRIMARY.localdomain

SIMULATIONConfigure HSRP between DISTRO-SW1 and DISTRO-SW2 on VLAN 100 for hosts connected to ACCESSSW1 to achieve these goals:

Configure group number 1 using the virtual IP address of 192.168.1.1/24.

Configure DlSTRO-SW1 as the active router using a priority value of 110 and DISTRO-SW2 as the standby router.

Ensure that DISTRO-SW2 will take over the active role when DISTRO-SW1 goes down, and when DISTRO-SW1 recovers, it automatically resumes the active role. DISTRO-SW2

Which two security features are available when implementing NTP? (Choose two.)

encrypted authentication mechanism

access list-based restriction scheme

encrypted authentication mechanism

access list-based restriction scheme

Refer to the exhibit. Hosts PC1 PC2 and PC3 must access resources on Serve 1. An engineer configures NAT on Router R1 1e enable the communication and enters the show command to verify operation Which IP address is used by the hosts when they communicate globally to Server1?

random addresses in the 155.1.1.0/24 range

their own address in the 10.10.10.0/24 rance

Refer to the exhibit. These commands have been added to the configuration of a switch Which command flags an error if it is added to this configuration?

monitor session 1 source vlan 10

monitor session 1 source interface port-channel 6

monitor session 1 source vlan 10

monitor session 1 source interface FatEtheret0/1 x

monitor session 1 source interface port-channel 7,port-channel8

Cisco 350-401 Practice Test 15 - Free Online Exam Prep & Questions

Question 1 / 40

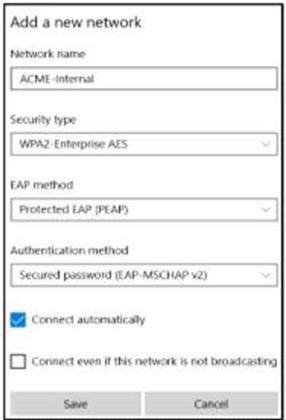

Refer to the exhibit.

Cisco 350-401 image Question 561 115860 10102024232943000000

A company has an internal wireless network with a hidden SSID and RADIUS-based client authentication for increased security. An employee attempts to manually add the company network to a laptop, but the laptop does not attempt to connect to the network. The regulatory domains of the access points and the laptop are identical. Which action resolves this issue?

Ensure that the "Connect even if this network is not broadcasting" option is selected.

Limit the enabled wireless channels on the laptop to the maximum channel range that is supported by the access points.

Change the security type to WPA2-Personal AES.

Use the empty string as the hidden SSID network name.
