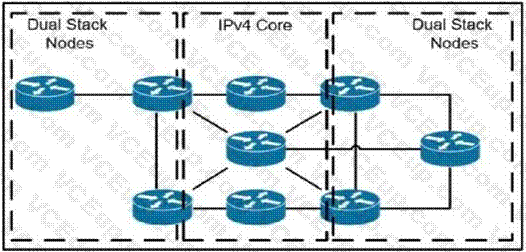

Refer to the exhibit.
A network operator has two IPv4 and IPv6 dual-stacked network on each side of the IPv4 core network. The operator must be able to provide connectivity between them while using specific assigned IPv6 space provided from the company
IP administrator team. Which technology should the network operator use to accomplish this goal?
6rd
NAT46
DS-Lite
NAT44
Which additional configuration is required for NetFlow to provide traceback information?
Cisco Express Forwarding must be configured for traffic that is egressing from the router to be properly reported.
A classification ACL must be configured to identify which type of traffic will be analyzed.
The BGP routing process must be started for any ingress or egress data to be reported when using NetFlow. Version 5.
LLDP must be configured or the device will be unable to locate a NetFlow analyzer.
What is a characteristic of prefix segment identifier?
It contains a router to a neighbor
It contains the interface address of the device per each link
It is globally unique.
It is locally unique.
An engineer working for a private service provider with employee id: 3994 37 650 is configuring a Cisco device to redistribute OSPF into BGP. Which task enables the device to filter routes?
Configure a distribute list and associate it to the BGP peer interface
Configure a prefix list and associate it to the BGP peer interface
Configure a route map and reference it with the redistribute command
Configure an access list and reference it with the redistribute command
A network engineer is configuring a newly installed PE router at the regional gateway location. The new PE router must use MPLS core routing protocols with the existing P router, and LDP sessions between the two routers must be protected to provide faster MPLS convergence. Which configuration must the engineer perform on the network so that LDP sessions are established?
Enable communication over TCP port 646 for T-LDP hello messages.
Enable RSVP-TE FRR on the LDP interface to protect the LDP session between routers.
Enable LDP session protection on either one of the routers, which allows them to autonegotiate.
Set the LDP session protection timer on each router to the same value.
What do Chef and Puppet have in common?
use Ruby
use a master server
require modules to be created from scratch
manage agents referred to as minions

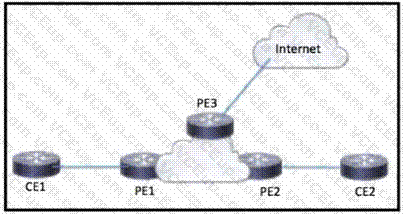

Refer to the exhibit.
CE1 and CE2 require connectivity to the internet through the ISP connected to PE3 What should an engineer configure to complete this task?
PE2 must be configured to serve as a route reflector for PE3 routes learned from the internet. PE2 then shares the routes with CE1 and CE2.
CE1 and CE2 must be configured with a route distinguisher in the PE1 VRF that dynamically imports the route from the internet.
CE1 and CE2 must be configured to use a static default route with a next-hop of PE3 to reach internet routes.
PE1 must be configured with an import route target in the CE1 VRF that matches the export route target for the internet VRF on PE3.

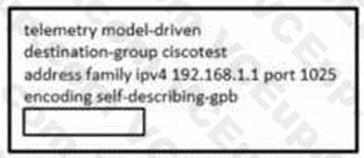

Refer to the exhibit.
A Cisco engineer is implementing gRPC dial-out on an ASR. Receiver 192.168 1.1 will be assigned one of the subscriptions, and it will manage the ASR. Which command is needed to complete the router configuration?
protocol grpc
protocol all
protocol tcp
protocol any
Refer to the exhibit.
Which show command shows statistics for the control plane policy and is used to troubleshoot?
show control-plane CoPP
show control-plane
show policy-map control-plane
show policy control-plane
A network engineer is configuring RIP as the routing protocol between multiple PEs and CEs. The engineer must avoid advertising the same routes back to their sources. Which action should be performed on the routers to accomplish this
task?
Configure a different route distinguisher for each prefix.
Define the site of origin on each interface.
Define VRFs on each device to separate the traffic.
Enable bidirectional forwarding detection on each device.
