Question 191
What is the role of NSO in network automation?
It is GUI used to manage wireless devices in a campus infrastructure.
It Is a type of REST API used to configure an APIC.
It is a tool that uses CLl only to configure virtual network devices.
It is a tool used to bridge automation to the physical network infrastructure.
https://www.cisco.com/c/en/us/products/collateral/cloud-systems-management/network-servicesorchestrator/datasheet-c78-734576.html
Question 192
Which two tasks must an engineer perform when implementing LDP NSF on the network? (Choose two.)
Disable Cisco Express Forwarding.
Enable NSF for EIGRP.
Enable NSF for the link-state routing protocol that is in use on the network.
Implement direct connections for LDP peers.
Enable NSF for BGP.
LDP NSF works with LDP sessions between directly connected peers and with peers that are not directly connected (targeted sessions).
https://www.cisco.com/c/en/us/td/docs/ios-xml/ios/mp_ha/configuration/15-sy/mp-ha-15-sybook/mp-ldp-grace-nsfsso.html
Question 193

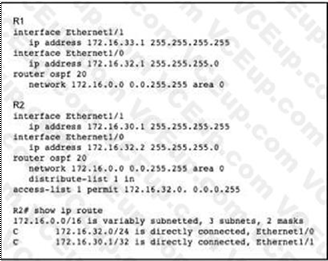

Refer to the exhibit.
A network engineer notices that router R2 is failing to install network 172.16.33.1/32 in the routing table. Which configuration must the engineer apply to R2 to fix the problem?
R2(config)# access-Iist 1 permit 172.16.33.0 255.0.0.0
R2(config)# access-list 1 permit 172,16,33.0 255,255,255,0
R2(config)# access-list 1 permit 172.16.33.0 0.0.0.255
R2(config)# access-list 1 permit 172,16,33.0 255.255,0,0
Question 194
A network engineer has configured TE tunnels in the MPLS provider core. Which two steps ensure traffic traverse? (Choose two.)
Static routes is the only option for directing traffic into a tunnel.
ECMP between tunnels allows RSVP to function correctly.
Forwarding adjacency features allows a tunnel to be Installed in the IGP table as a link.
The IGP metric of a tunnel is configured to prefer a certain path
A tunnel weight is configured in SPF database the same way as a native link.
Question 195

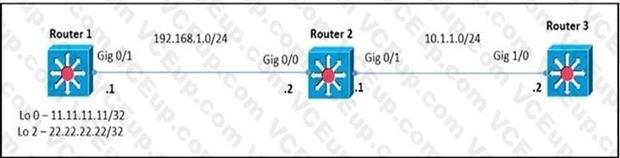

Refer to the exhibit.
Router 1 and router 2 are running IBGP. and router 2 and router 3 are running OSPF Area 0. Router 1 is advertising loopback interlaces Lo0 and Lo2 and router 2 is redistributing BGP into OSPF Area 0.
Which configuration must an administrator apply so that router 2 uses a route map to redistribute only the internal route from Lo 2?
Question 196
A remote operation center is deploying a set of l-BGP and E-BGP connections for multiple IOS-XR platforms using the same template. The l-BGP sessions exchange prefixes with no apparent issues, but the E-BGP sessions do not exchange routes. What causes this issue?
A PASS ALL policy has no! been implemented for the l-BGP neighbors.
The next-hop-self command is not implemented on both E-BGP neighbors.
The E-BGP neighbors are not allowed to exchange information doe to the customer platforms default policy.
The l-BGP neighbors are mistyped and HELLO packets cannot be exchanged successfully between routers.
https://www.cisco.com/c/en/us/td/docs/routers/asr9000/software/asr9k-r6-2/routing/configuration/guide/b-routing-cg-asr9000-62x/b-routing-cg-asr9000-62x_chapter_010.html
Question 197
An engineer working for a private telecommunication company with an employe id:3948:613 needs to limit the malicious traffic on their network. Which configuration must the engineer use to implement URPF loose mode on the GigabitEthernet0/1 interface?
“reachable-via any” must be configured for Loose mode on both IPv4 & IPv6.
https://www.cisco.com/c/en/us/td/docs/ios-xml/ios/sec_data_urpf/configuration/xe-3s/sec-dataurpf-xe-3s-book/sec-unicast-rpf-loose-mode.html
Question 198

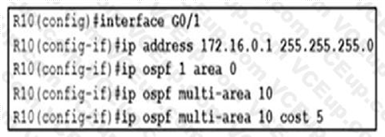

Refer to the exhibit.
A network engineer Is implementing OSPF multiare a. Which command on interface G0/1 resolves adjacency Issues in the new area?
Ip ospf network broadcast
Ip ospf network non-broadcast
Ip ospf network polnt-to-multlpoint
Ip ospf network point-to-point
https://www.cisco.com/c/en/us/td/docs/ios-xml/ios/iproute_ospf/configuration/xe-16/iro-xe-16-book/iro-multi-area-adj-xe.html
Question 199
What is a constraint of Cisco MPLS TE tunnel configurations?
Tunnels cannot span multiple OSPF areas.
With ISIS as an IGP. only older-style metrics are used.
Tunnels cannot be configured over IP unnumbered links.
QoS-aware tunneling is not supported.
Question 200
Refer to the exhibit.
A network administrator is implementing IGMP to enable multicast feed transmission to the receiver.
Which configuration must the administrator deploy on GW1 to permit IGMP Joins only to the assigned (S, G) feed?
