When configuring traffic engineering tunnels in Cisco MPLS core network, you see the traffic is not taking the expected path in the core.
Which command do you use to quickly check path of a TE tunnel?
Traceroute mpls ipv4 -tunnel destination
Ping <tunnel destination IP>
show mpls traffic-engineering tunnels
traceroute <tunnel destination IP>
Refer to the exhibit:
If router RA is configured as shown, which IPv4 multicast address space does it use?
224.0. 0.0/8
225.0. 0.0/8
232.0. 0.0/8
239.0. 0.0/8

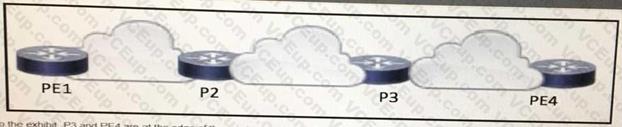

Refer to the exhibit:
P3 and PE4 are at the edge of the service provider core and serve as ABR routers Aggregation areas are on either side of the core.
Which statement about the architecture is true?
If each area is running its own IGP. the ABR routers must redistribute the IGP routing table into BGP
To support seamless MPLS. TDP must be used as the label protocol
If each area is running its own IGP. BGP must provide an end-to-end MPLS LSP
To support seamless MPLS, the BGP route reflector feature must be disabled

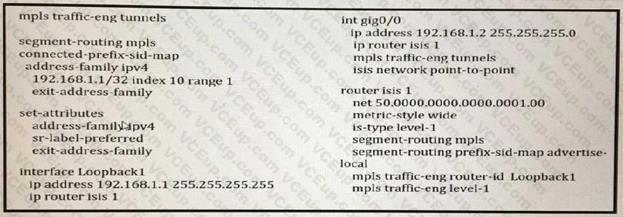

Refer to the exhibit:
Which statement about this configuration is true"?
It requires an explicit Cisco MPLS TE path to be configured for the tunnel to run
It requires OSPF to also be running to have optimized Cisco MPLS TE tunnels
It requires a dynamic Cisco MPLS TE path to be configured for the tunnel to run
It is the configuration for the head-end router of a Cisco MPLS TE tunnel with segment routing

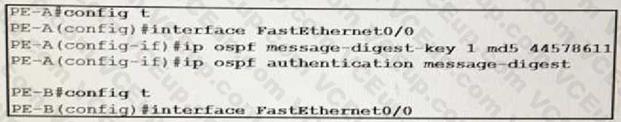

Refer to the exhibit:
An engineer wants to authenticate the OSPF neighbor between PEA and PE-B using MD5.
Which command on PE-B successfully completes the configuration?
Refer to the exhibit:
It the NetFlow configuration is updated to version 9, which additional piece of information can be reported"?
IPv6 flow information
flow sequence numbers
BGP AS information
IPv4 flow information
You are testing the capabilities of MPLS OAM ping.
Which statement is true?
MPLS OAM ping works solely with Cisco MPLS TE
MPLS OAM ping works solely with P2P LSPs
An LSP breakage results in the ingress MPLS router never receiving any reply
An LSP is not required for the reply to reach the ingress MPLS router
Which utility can you use to locate MPLS faults?
MPLS traceroute
EEM
MPLS LSP ping
QoS
Refer to the exhibit:
You are configuring an administrative domain implement so that devices can dynamically learn the RP?
SSM
BID1R-PIM
BSR
Auto-RP
