Question 71
Refer to the exhibit:
A network administrator wants to enhance the security for SNMP for this configuration.
Which action can the network administrator implement?
Re-configure to use SNMPv2 with MD5 authentication
Add a community string to the existing entry
Re-configure to use SNMPv3.
Maintain the configuration but switch to an encrypted password for device access through SSH
Question 72

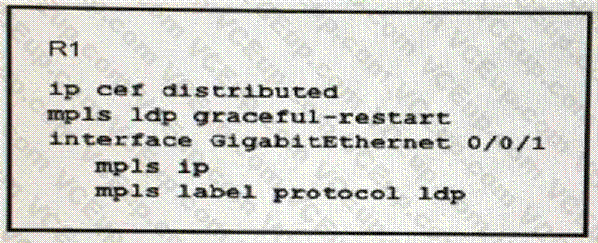

Refer to the exhibit:
Which effect of this configuration is true?
R1 can support a peer that is configured for LDP SSO/NSF as the peer recovers from an outage
R1 can failover only to a peer that is configured for LDP SSO/NSF
R1 can failover to any peer
R1 can support a graceful restart operation on the peer, even if graceful restart is disabled on the peer
Question 73
A customer of an ISP requests support to setup a BGP routing policy. Which BGP attribute should be configured to choose specific BGP speakers as preferred exit points for the customer AS?
highest local preference outbound
lowest local preference inbound
highest local preference inbound
lowest multi-exit discriminator
Question 74

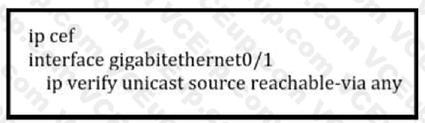

Refer to the exhibit:
Router 1 was experiencing a DDoS attack that was traced to interface gjgabitethernet0/1.
Which statement about this configuration is true?
Router 1 drops all traffic that ingresses interface gigabitethernet0/1 that has a FIB entry that exits a different interface
Router 1 accepts source addresses on interface gigabitethemet0/1 that are private addresses
Router 1 accepts all traffic that ingresses and egresses interface gigabitethernet0/1
Router 1 accepts source addresses that have a match in the FIB that indicates it is reachable through a real interface
Question 75
Refer to the exhibit:
What is significant about the number 2 in the configuration?
It is the numeric name of the ACL that contains the list of SNMP managers with access to the agent
It dictates the number of sessions that can be open with the SNMP manager
It indicates two SNMP managers can read and write with the agent using community string cisco test
It represents the version of SNMP running
Question 76
A regional MPLS VPN provider operates m two regions and wants to provide MPLS L 3VPN service for a customer with two sites in these separate locations. The VPN provider approaches another organization to provide backbone carrier services so that the provider can connect to these two locations.
Which statement about this scenario is true?
When edge routers at different regional sites are connected over the global carrier backbone, MPeBGP must run between the routers to exchange the customer VPNv4 routes
When eBGP is used for label exchange using the send label option, MPLS-BGP forwarding is configured under the global ABC CSC PE-to CE interface
When IGP is used for route exchange and LDP for label exchange, MPLS is enabled only on the VRF interface on the backbone-earner PE side.
When BGP is used for both route and label exchange, the neighbor a.b.c.d send-lable command is used under the address family VPNv4 command mode.
Question 77
What is the difference between SNMP and model-driven telemetry?
Telemetry allows for modeled network data to be pushed to the network administrator on an asneeded basis
Telemetry uses traps and inform messages to deliver data to a network administrator on a polling basis
SNMP uses the YANG data modeling language
SNMP pushes network data to the network administrator whenever it is queried
Question 78

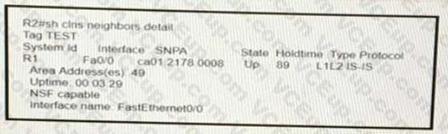

Refer To the exhibit:

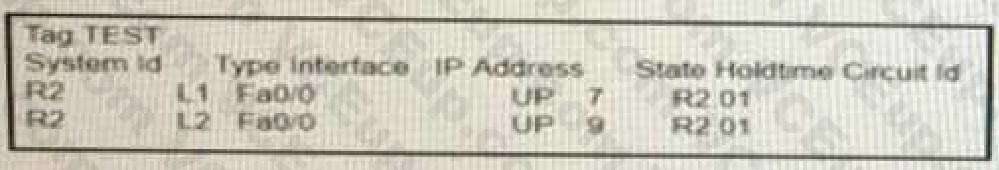

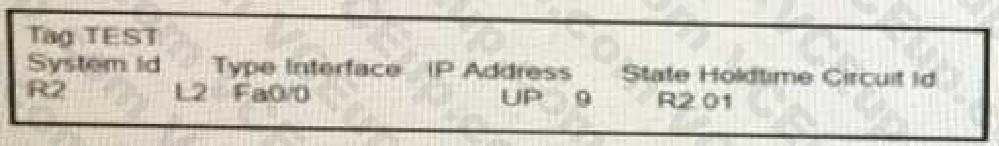

On R1, which output does the show isis neighbors command generate?
Question 79

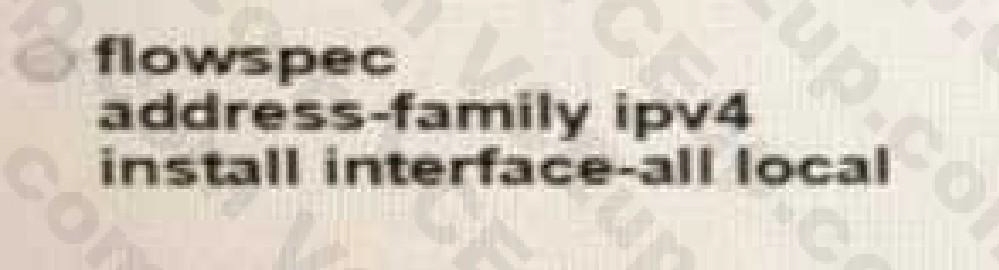

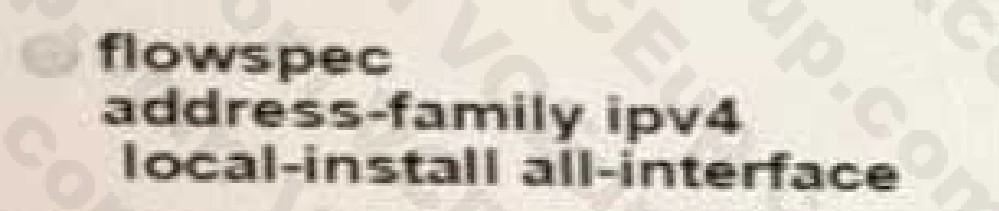

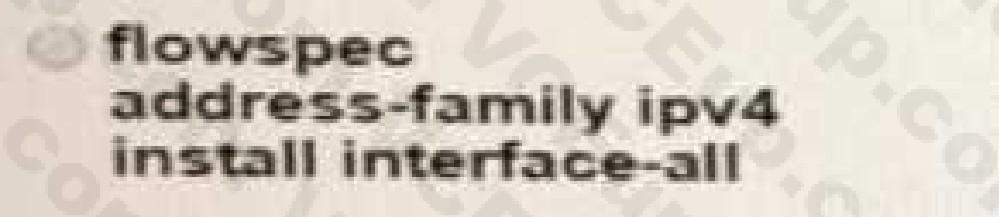

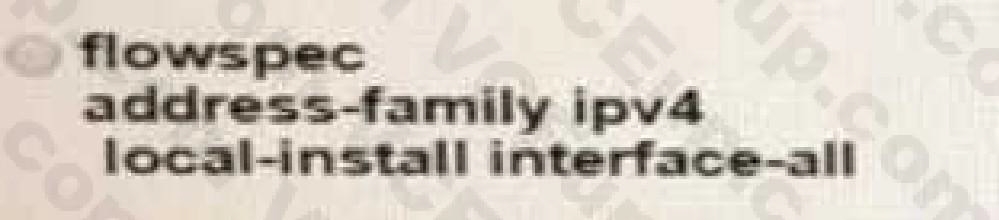

Which configuration enables BGP FlowSpec client function and installation of policies on all local interfaces?
Question 80

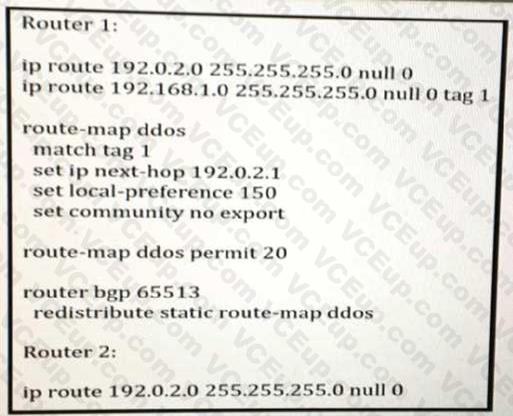

Refer to the exhibit:
An engineer is preparing to implement data plane security configuration.
Which statement about this configuration is true?
Router 1 drops all traffic with a local-preference set to 150
All traffic is dropped
All traffic to 192.168.1.0/24 is dropped
Router 1 and Router 2 advertise the route to 192.0.2.0/24 to all BGFD peers.
