Refer to the exhibit:
This configuration is being applied on an IOS XR router.
Which statement about this configuration is true?
It is used to create a subscription to specify the streaming interval
It is used to identify traps for SNMP polling
It is used to identify MIB entries and has a list of YANG models
It is used to create a sensor-group and has a list of YANG models for streaming

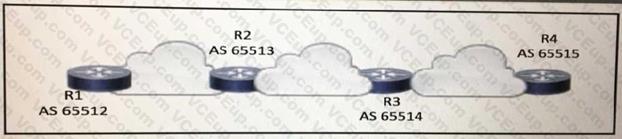

Refer to the exhibit:
BGPsec is implemented on R1. R2. R3. and R4 BGP peering is established between neighboring autonomous systems Which statement about implementation is true?
BGP updates from the eBGP peers are appended with an additional AS path value that is statically set by the domain administrator
BGP updates from the iBGP peers are appended with a community of local-as
BGP updates from the all BGP peers are appended with a community of no export
BGP updates from the eBGP peers are appended with a BGPsec attribute sequence that includes a public key hash and digital signature

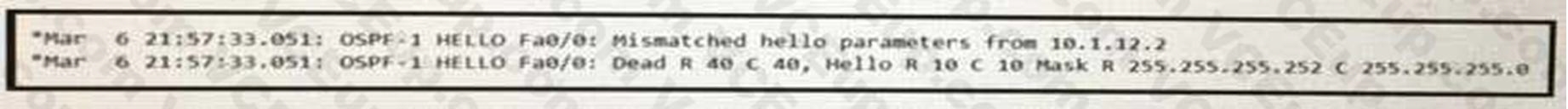

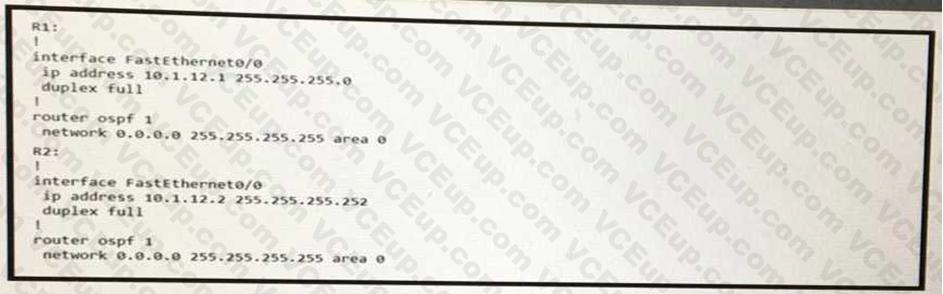

Refer to the exhibit:
R1 and R2 are directly connected with Fast Ethernet interfaces and have the above configuration applied OSPF adjacency is not formed. When the debug ip ospf hello command is issued on R1. these log messages are seen.
Which command can be configured on routers R1 and R2 on fO/O interfaces to form OSPF adjacency?
ip ospf network non-broadcast
ip ospf network point-to- multipoint non-broadcast
ip ospf network point-to-point
ip ospf network broadcast

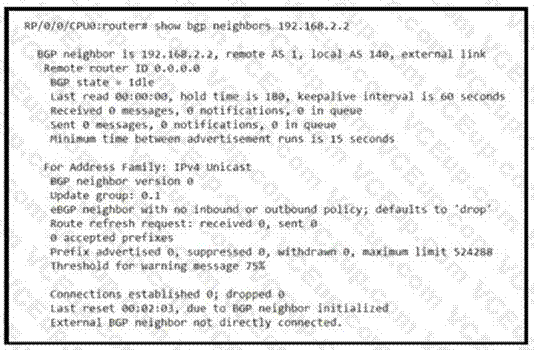

Refer to the exhibit:
Based on the show/ command output, which result m true after BGP session is established?
The IOS XR router advertises all routes to the neighbor 192.168.2.2, but it does not accept any routes from 192.168.2.2
The IOS XR router advertises and accepts all routes to and from eBGP neighbor 192.168.2.2 C. No routes are accepted from the neighbor 192.168.2.2, nor are any routes advertised to it
The IOS XR router does not advertise any routes to the neighbor 192.168.2.2,but it accepts all routes from 192.168.2.2.

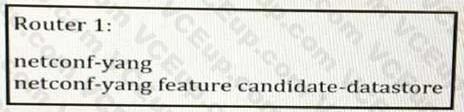

Refer to the exhibit:
Which statement describes this configuration?
Router 1 has its running configuration locked so changes can be made only when the administrator issues a kill session
Router 1 can be remotely managed by the CLI using Telnet
Router 1 has a new data store to collect SNMP information, but configuration must still be done at the CLI only
Router 1 has a temporary data store where a copy of the running configuration can be manipulated and verified before committing the configuration

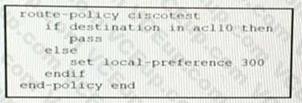

Refer to the exhibit:
A network engineer is implementing a BGP routing policy.
Which effect of this configuration is true?
All traffic that matches acl10 is allowed without any change to its local-preference
All traffic that matches acl10 is dropped without any change to its local-preference
If traffic matches acl10, it is allowed and its local-preference is set to 300
All traffic is assigned a local-preference of 30O regardless of its destination
Which component is similar to an EVPN instance?
MPLS label
IGP router ID
VRF
router distinguisher
Refer to the exhibit:
Router R1 and its peer R2 reside on the same subnet in the network, If does it make connections to R27
R1 establishes UDP connections that are authenticated with an MD5 password
R1 establishes TCP connections that are authenticated with a clear-text password
R1 establishes UDP connections that are authenticated with a clear-text password
R1 establishes TCP connections that are authenticated with an MD5 password
Which MPLS design attribute can you use to provide Internet access to a major customer through a separate dedicated VPN?
The customer that needs the Internet access service is assigned to the same RTs as the Internet gateway
The Internet gateway inserts the full Internet BGP routing table into the Internet access VPN
The Internet gateway router is connected as a PE router to the MPLS backbone.
The CE router supports VRF-Ute and the full BGP routing table.
Which two tasks must you perform when you implement LDP NSF on your network? (Choose two.)
Enable NSF for EIGRP
Enable NSF for the link-state routing protocol that is in use on the network.
Disable Cisco Express Forwarding
Implement direct connections for LDP peers
Enable NSF for BGP
