What does DWDM use to combine multiple optical signals?
frequency
IP protocols
time slots
wavelength

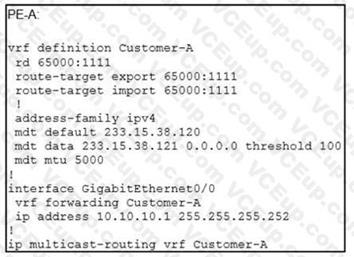

Refer to the exhibit.
An engineer is implementing Auto-RP and reviewing the configuration of the PEA.
Which configuration permits Auto-RP messages to be forwarded over this interface?
PE-A(config-if)#ip pim sparse-mode
PE-A(config-if)#no ip pim bsr-border
PE-A(config-if)#ip igmp version 3
PE-A(config-if)#ip pim sparse-dense-mode
Which protocol does a Cisco MPLS TE tunnel use to maintain paths within the core?
RSVP
VTP
STP
RPF

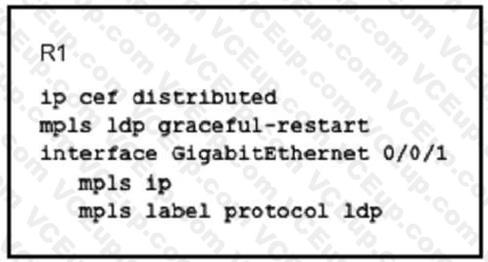

Refer to the exhibit.
What is the effect of this configuration?
R1 supports a graceful restart operation on the peer, even if graceful restart is disabled on the peer.
R1 supports a peer that is configured for LDP SSO/NSF as the peer recovers from an outage.
R1 failovers only to a peer that is configured for LDP SSO/NSF.
R1 failovers to any peer.

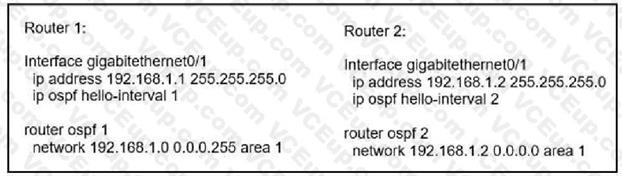

Refer to the exhibit.
What reestablishes the OSPF neighbor relationship between Router 1 and Router 2?
authentication is added to the configuration
correct wildcard mask is used on Router 2
OSPF process IDs match
hello intervals match
Refer to the exhibit.
While troubleshooting the network, a network operator with an employee id: 3812:12:993 is trying to ping XR1. Which result should the operator expect when trying to ping to an XR1 local address?
ICMP traffic works at a policed rate of 19 bytes per second every 100 ms
All ICMP traffic responds successfully.
All ICMP traffic is dropped.
ICMP traffic works at a policed rate of 19 packets every 100 ms.

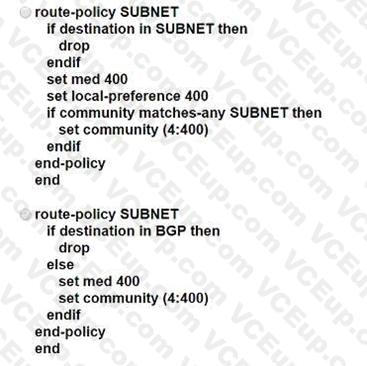

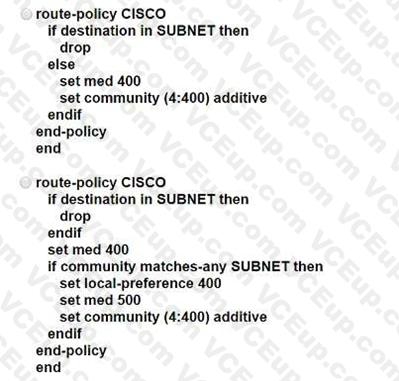

A network engineer is configuring a BGP route policy for the SUBNET prefix set. Matching traffic must be dropped, and other traffic must have its MED value set to 400 and community 4:400 added to the route. Which configuration must an engineer apply?
Option A
Option B
Option C
Option D
Refer to the exhibit.
What does the number 2 mean in the configuration?
It dictates the number of sessions that will be open with the SNMP manager
It represents the version of SNMP running.
It indicates two SNMP managers are able to read and write with the agent using community string ciscotest.
It is the numeric name of the ACL that contains the list of SNMP managers with access to the agent.

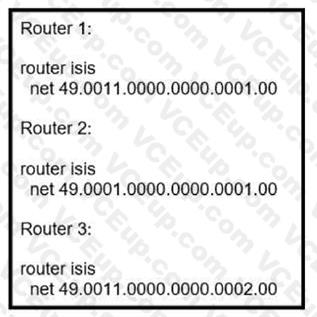

Refer to the exhibit.
Router 4 is added to the network and must be in the same area as router 1. Which NET should the engineer assign?
49.0001.0000.0000.0004.00
49.0111.0000.0000.0001.00
49.0011.0000.0000.0003.00
49.0011.0000.0000.0002.00

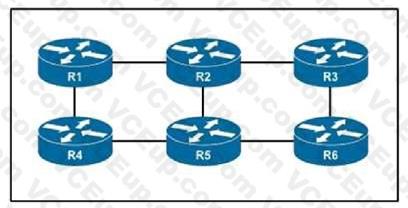

Refer to the exhibit.
An engineer is configuring an administrative domain in the given multi-vendor environment with PIM-SM. Which feature must the engineer implement so that devices will dynamically learn the RP?
Auto-RP
BIDIR-PIM
SSM
BSR
