What Is the primary role of Ansible In a network?
It is used as a debugging tool for connectivity issues between the DMZ and an enterprise intranet.
It Is used to diagnose Layer 11ssues In data centers that span more than one city block.
It is used to deploy IPv6 configuration is networks That are dual slack.
It is used as a network automation provisioning and configuration tool.
Which two features will be used when defining SR-TE explicit path hops if the devices are using IP unnumbered interfaces? (Choose two.)
router ID
labels
node address
next hop address
output interface
A network team has failed to implement IS-IS multitopology. What is the reason for it?
The router did not support VRFs.
The routing process did not support extended metrics.
The router did not have Cisco Discovery Protocol and Cisco Express Forwarding disabled.
The routing process supported Level 1 only.

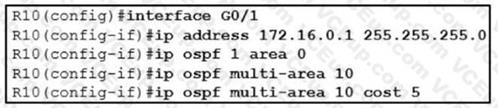

Refer to the exhibit.
A network engineer is implementing OSPF multiare a. Which command on interface GO/1 resolves adjacency issues in the new area?
ip ospf network broadcast
ip ospf network point-to-point
ip ospf network non-broadcast
ip ospf network point-to-multipoint
A network engineer is implementing BFD configuration changes on a customer's equipment. How is the bfd interval configuration on the interface disconnected?
The status of the interface changes.
The IPv4 or IPv6 address configuration on the interface changes.
It is automatically disconnected when the BFD-configured subinterface is removed.
It is automatically disconnected when the BFD main interface is removed.
An engineer is trying to implement BGP in a multihomed architecture. What must the engineer configure to influence inbound path selection?
A route map with WEIGHT attribute to control the inbound traffic.
An offset list to set the metric for routes received from neighboring autonomous systems.
An access list to identify traffic and enable it on both of the provider-facing interfaces.
A route map with AS_PATH attribute to control the inbound traffic.

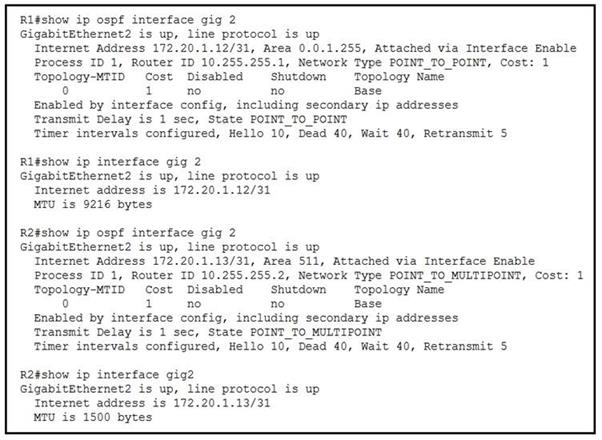

Refer to the exhibit.
While troubleshooting the OSPF adjacency between routers R1 and R2 an engineer noticed that both routers are stuck in the EXCHANGE/EXSTART state. What should the engineer fix to solve the ongoing issue?
match IPv4 addresses
match OSPF areas
match OSPF network types
match MTU values

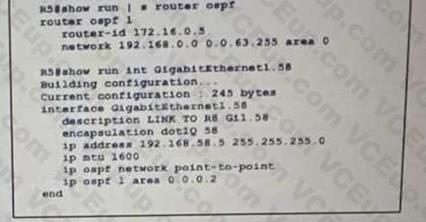

Refer to the exhibit.
Which configuration must be implemented on router R8 so that it will establish OSPF adjacency with R5?
Refer to the exhibit. Which additional configuration must an engineer to the adge router to inject a default router into the MP-BGP address family for the internet_Shared_Services dedicated VRF?

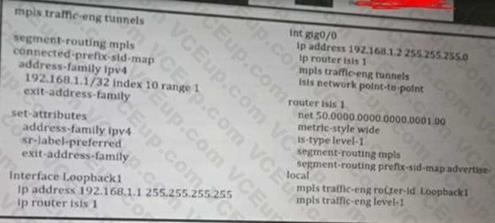

Refer to the exhibit.
What type of configuration is it?
It is configuration that requires an explicit Cisco MPLS TE path to be configured for the tunnel to run.
It is configuration that requires OSPF to also be running to have optimized Cisco MPLS TE tunnels.
It is configuration for the head-end router of a Cisco MPLS TE tunnel with segment routing.
It is configuration that requires a dynamic Cisco MPLS TE path to be configured for the tunnel to run.
