Cisco 350-501 Practice Test - Questions Answers, Page 12
List of questions
Question 111
What causes multicast traffic to permanently stay on the shared tree and not switch to the source tree?
The SPT threshold is set to infinity.
The RP IP address is configured incorrectly.
The RP announcements are being filtered.
SSM range is being used.
https://www.cisco.com/c/en/us/td/docs/ios/solutions_docs/ip_multicast/White_papers/mcst_ovr.html
Question 112
Refer to the exhibit.

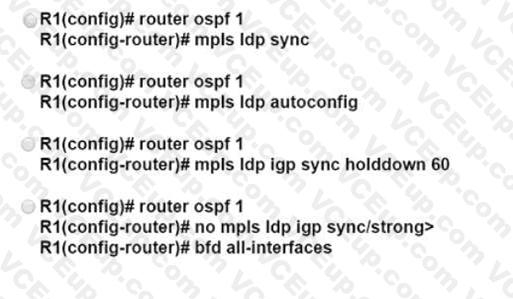

A network engineer is configuring MPLS LDP synchronization on router R1. Which additional configuration must an engineer apply to R1 so that it will synchronize to OSPF process 1?
Option A
Option B
Option C
Option D
Question 113
What is a primary benefit of IPoATM or MPLS over ATM backbone service provider networks?
dedicated circuits
variable-length packets
isochronous system
fixed-length cells
Question 114
How does model-driven telemetry use YANG?
to reset network devices that malfunction
to set informs and traps on clients to report back to a centralized server
to subscribe to data that is streamed from a device
to poll network devices on a 30-minute interval
Question 115

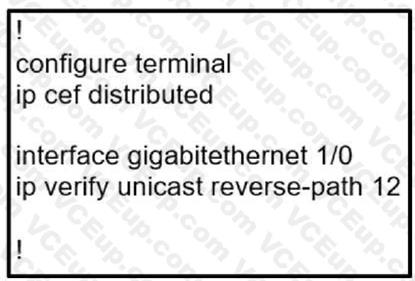

Refer to the exhibit.
Which show command should be implemented to display per-interface statistics about uRPF drops and suppressed drops?
show ip traffic
showip interface
show cef interface
show ip interface brief
Question 116

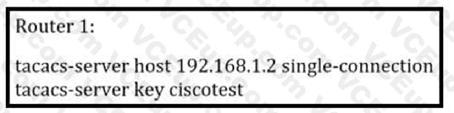

Refer to the exhibit.
What is the result of this configuration?
Router 1 opens and closes a TCP connection to the TACACS+ server every time a user requires authorization.
Router 1 and the TACACS+ server maintain one open connection between them only when network administrator is accessing the router with password ciscotest.
Router 1 and the TACACS+ server maintain one open connection between them.
Router 1 opens and closes a TCP connection to the TACACS+ server every time a user requires authentication.
https://www.ccexpert.us/cisco-secure/configuring-tacacs-on-cisco-ios.htmlsingle-connection (Optional) Used to specify a single connection. Rather than have the router openand close a TCP connection to the daemon each time it must communicate, the single-connectionoption maintains a single open connection between the router and the daemon. This is moreefficient because it allows the daemon to handle a higher number of TACACS operations.
Question 117
Which OoS model allows hosts to report their QoS needs to the network?
DiffServ
CB-WFQ
IntServ
MQC
Question 118
Refer to the exhibit.
An engineer is configuring two routers to support MPLS LDP sessions between them. The R1 configuration is complete, and work has started on R2 as shown. Which additional configuration must the engineer apply to R2 to complete the task?
Option A
Option B
Option C
Option D
Question 119
Refer to the exhibit.

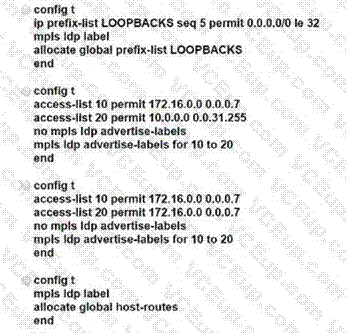

Which configuration must be applied to each of the four routers on the network to reduce LDP LIB size and advertise label bindings for the /32 loopback IP space only?
Option A
Option B
Option C
Option D
Question 120
Refer to the exhibit.
Which type of DDoS attack will be mitigated by this configuration?
SYN flood
smurf attack
SIP INVITE flood attacks
teardrop attack
