Question 11

Report Export Collapse

Refer to the exhibit.

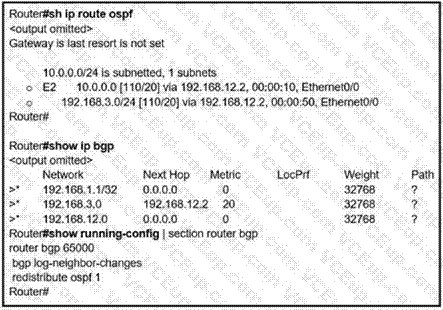

Cisco 300-410 image Question 11 110957 10072024005413000000

An engineer is trying to redistribute OSPF to BGP, but not all of the routes are redistributed. What is the reason for this issue?

By default, only internal routes and external type 1 routes are redistributed into BGP

By default, only internal routes and external type 1 routes are redistributed into BGP

Only classful networks are redistributed from OSPF to BGP

Only classful networks are redistributed from OSPF to BGP

BGP convergence is slow, so the route will eventually be present in the BGP table

BGP convergence is slow, so the route will eventually be present in the BGP table

By default, only internal OSPF routes are redistributed into BGP

By default, only internal OSPF routes are redistributed into BGP

Suggested answer: D
Explanation:

If you configure the redistribution of OSPF into BGP without keywords, only OSPF intra-area and inter-area routes are redistributed into BGP, by default.

You can redistribute both internal and external (type-1 & type-2) OSPF routes via this command:

?Router(config-router)#redistribute ospf 1 match internal external 1 external 2?

Reference: https://www.cisco.com/c/en/us/support/docs/ip/border-gateway-protocol-bgp/5242-bgp-ospf-redis.html

asked 07/10/2024
Mohamed Mohamed
53 questions

Question 12

Report Export Collapse

Refer to the exhibit.

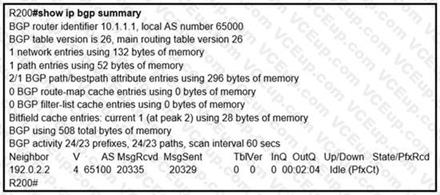

Cisco 300-410 image Question 12 110958 10072024005413000000

In which circumstance does the BGP neighbor remain in the idle condition?

if prefixes are not received from the BGP peer

if prefixes are not received from the BGP peer

if prefixes reach the maximum limit

if prefixes reach the maximum limit

if a prefix list is applied on the inbound direction

if a prefix list is applied on the inbound direction

if prefixes exceed the maximum limit

if prefixes exceed the maximum limit

Suggested answer: D
Explanation:

https://www.cisco.com/c/en/us/support/docs/ip/border-gateway-protocol-bgp/25160-bgpmaximum-prefix.html#b

asked 07/10/2024
Jagatnata Gurusinga
45 questions

Question 13

Report Export Collapse

Which attribute eliminates LFAs that belong to protected paths in situations where links in a network are connected through a common fiber?

shared risk link group-disjoint

shared risk link group-disjoint

linecard-disjoint

linecard-disjoint

lowest-repair-path-metric

lowest-repair-path-metric

interface-disjoint

interface-disjoint

Suggested answer: A
Explanation:

Reference: https://www.cisco.com/c/en/us/td/docs/ios-xml/ios/iproute_eigrp/configuration/xeQuestions& Answers PDF P-183s/asr1000/ire-xe-3s-asr1000/ire-ipfrr.html

asked 07/10/2024
Jonathan McGurgan
39 questions

Question 14

Report Export Collapse

Refer to the exhibit.

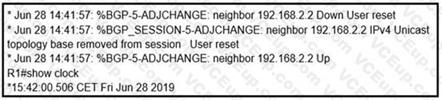

Cisco 300-410 image Question 14 110960 10072024005413000000

An engineer is troubleshooting BGP on a device but discovers that the clock on the device does not correspond to the time stamp of the log entries. Which action ensures consistency between the two times?

Configure the service timestamps log uptime command in global configuration mode.

Configure the service timestamps log uptime command in global configuration mode.

Configure the logging clock synchronize command in global configuration mode.

Configure the logging clock synchronize command in global configuration mode.

Configure the service timestamps log datetime localtime command in global configuration mode.

Configure the service timestamps log datetime localtime command in global configuration mode.

Make sure that the clock on the device is synchronized with an NTP server.

Make sure that the clock on the device is synchronized with an NTP server.

Suggested answer: C
Explanation:

https://www.cisco.com/c/en/us/td/docs/routers/xr12000/software/xr12k_r3-9/system_management/command/reference/yr39xr12k_chapter4.html#wp1784026936By default, syslog and debug messages are stamped by UTC, regardless of the time zone that deviceconfigured. You should append localtime key word to "service timestamp {log | debug} datetimemsec" global command to change that behavior.

https://community.cisco.com/t5/networking-documents/router-log-timestamp-entries-aredifferent-from-the-system-clock/ta-p/3132258

https://www.cisco.com/ELearning/bulk/public/tac/cim/cib/using_cisco_ios_software/cmdrefs/service_timestamps.htm

asked 07/10/2024
Wessel Beulink
45 questions

Question 15

Report Export Collapse

Refer to the exhibit.

Cisco 300-410 image Question 15 110961 10072024005413000000

What is the result of applying this configuration?

The router can form BGP neighborships with any other device.

The router can form BGP neighborships with any other device.

The router cannot form BGP neighborships with any other device.

The router cannot form BGP neighborships with any other device.

The router cannot form BGP neighborships with any device that is matched by the access list named "BGP".

The router cannot form BGP neighborships with any device that is matched by the access list named "BGP".

The router can form BGP neighborships with any device that is matched by the access list named "BGP".

The router can form BGP neighborships with any device that is matched by the access list named "BGP".

Suggested answer: C
Explanation:

after bgp session are UP.I configured the CoPP to drop 10.3.3.3 bgp traffic (R3).

R3 bgp traffic that matched the ACL 100 is dropped and the state is in IDLE -------------------------------------------- access-list 100 permit tcp host 10.3.3.3 any eq bgp access-list 100 permit tcp host 10.3.3.3 eq bgp any ! class-map match-all class-bgp match access-group 100 ! policy-map policy-bgp class class-bgp drop ! control-plane service-policy input policy-bgp ! The 10.3.3.3 neighbor goes to IDLE

asked 07/10/2024
Matthew Isaacs
47 questions

Question 16

Report Export Collapse

Which command displays the IP routing table information that is associated with VRF-Lite?

show ip vrf

show ip vrf

show ip route vrf

show ip route vrf

show run vrf

show run vrf

show ip protocols vrf

show ip protocols vrf

Suggested answer: B
Explanation:

Reference: https://www.cisco.com/c/en/us/td/docs/switches/lan/catalyst4500/12-2/50sg/configuration/guide/Wrapper-46SG/vrf.html#wp1045708

asked 07/10/2024
DHANANJAY TIWARI
36 questions

Question 17

Report Export Collapse

Refer to the exhibit.

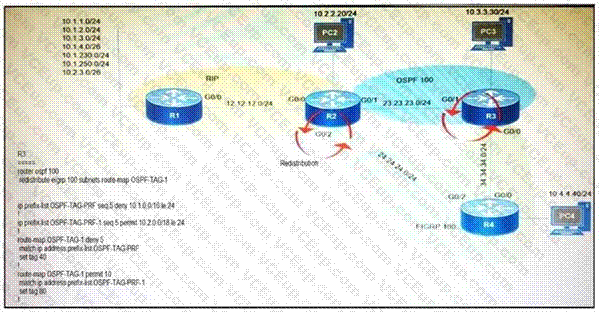

Cisco 300-410 image Question 17 110963 10072024005413000000

Which subnet is redistributed from EIGRP to OSPF routing protocols?

10.2.2.0/24

10.2.2.0/24

10.1.4.0/26

10.1.4.0/26

10.1.2.0/24

10.1.2.0/24

10.2.3.0/26

10.2.3.0/26

Suggested answer: A
asked 07/10/2024
Joost Huggers
37 questions

Question 18

Report Export Collapse

Which configuration adds an IPv4 interface to an OSPFv3 process in OSPFv3 address family configuration?

Router ospf3 1 address-family ipv4

Router ospf3 1 address-family ipv4

Router(config-router)#ospfv3 1 ipv4 area 0

Router(config-router)#ospfv3 1 ipv4 area 0

Router(config-if)#ospfv3 1 ipv4 area 0

Router(config-if)#ospfv3 1 ipv4 area 0

Router ospfv3 1 address-family ipv4 unicast

Router ospfv3 1 address-family ipv4 unicast

Suggested answer: C
Explanation:

Reference: https://www.cisco.com/c/en/us/td/docs/ios-xml/ios/iproute_ospf/configuration/xe-3s/iro-xe-3s-book/ip6-route-ospfv3-add-fam-xe.html

asked 07/10/2024
Darren Bilmen
39 questions

Question 19

Report Export Collapse

Refer to the exhibit.

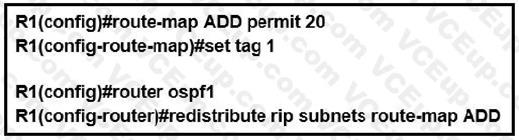

Cisco 300-410 image Question 19 110965 10072024005413000000

Which statement about R1 is true?

OSPF redistributes RIP routes only if they have a tag of one.

OSPF redistributes RIP routes only if they have a tag of one.

RIP learned routes are distributed to OSPF with a tag value of one.

RIP learned routes are distributed to OSPF with a tag value of one.

R1 adds one to the metric for RIP learned routes before redistributing to OSPF.

R1 adds one to the metric for RIP learned routes before redistributing to OSPF.

RIP routes are redistributed to OSPF without any changes.

RIP routes are redistributed to OSPF without any changes.

Suggested answer: B
asked 07/10/2024
Lascelles Johnson
48 questions

Question 20

Report Export Collapse

Refer to the exhibit.

Cisco 300-410 image Question 20 110966 10072024005413000000

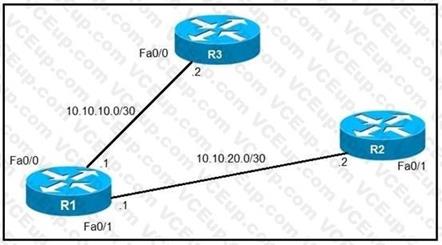

An IP SLA was configured on router R1 that allows the default route to be modified in the event that Fa0/0 loses reachability with the router R3 Fa0/0 interface. The route has changed to flow through router R2. Which debug command is used to troubleshoot this issue?

debug ip flow

debug ip flow

debug ip sla error

debug ip sla error

debug ip routing

debug ip routing

debug ip packet

debug ip packet

Suggested answer: C
Explanation:

debug ip routing This command enables debugging messages related to the routing table.

asked 07/10/2024
RYAN UBANA
46 questions
