A company Is redesigning WAN infrastructure so that all branch sites must communicate via the head office and the head office can directly communicate with each site independently. The network engineer must configure the head office router by considering zero-touch technology when adding new sites in the same WAN infrastructure. Which configuration must be applied to the head office router to meet this requirement?
Option A
Option B
Option C
Option D
Which protocol must be secured with MD-5 authentication across the MPLS cloud to prevent hackers from introducing bogus routers?
MP-BGP
LSP
RSVP
LDP
Which technique removes the outermost label of an MPLS-tagged packet before the packet is forwarded to an adjacent LER?
label swap
explicit-null
label imposition
PHP
Refer to the exhibit.

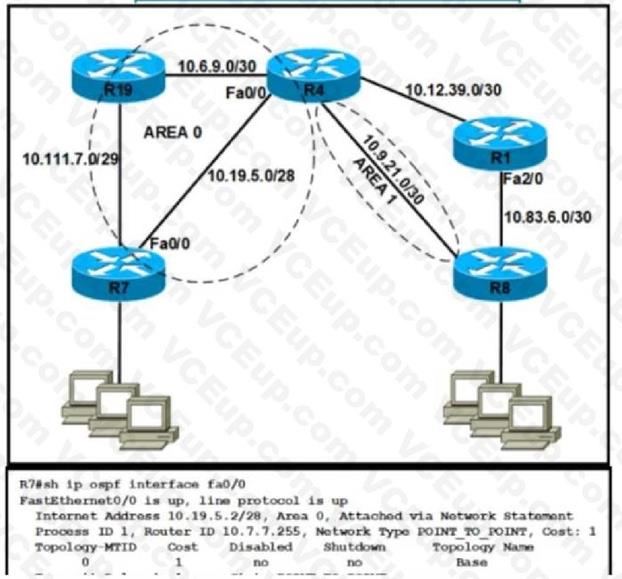

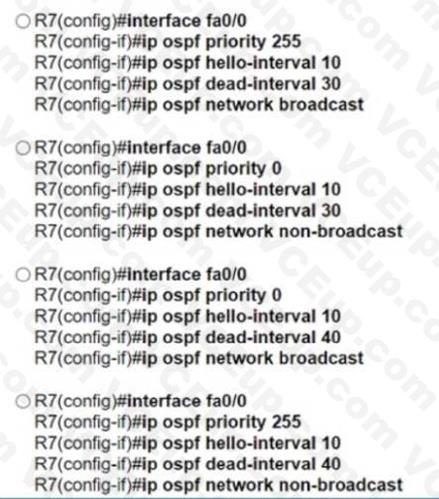

Refer to the exhibit. Router R4 is configured correctly with default OSPF values. A network engineer configured R7 for OSPF. R7 must not be elected as a DR for the segment between R4-R7. The adjacency between R4 and R7 failed to form. Which configuration resolves the issue?
Option A
Option B
Option C
Option D
Refer to the exhibit.

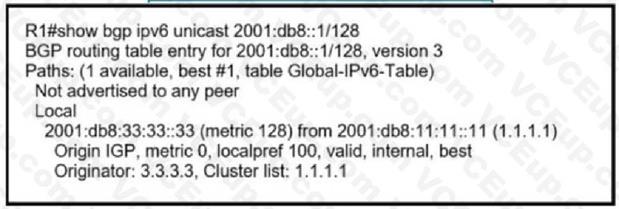

Refer to the exhibit. An engineer examines the BGP update for the IPv6 prefix 2001:db8::1/128. which should have been summarized into a /64 prefix. Which sequence of actions achieves the summarization?
R1 is a route reflector client of a RR with a router ID of 1.1.1.1. and the originator of the prefix has a router ID of 3.3.3.3. Both routers belong to different ASs. The prefix is not advertised to any peer and must be advertised using the network statement on R3.
R1 is a route reflector with a router ID of 3.3.3.3. and the originator of the prefix is a route reflector client, which has a router ID of 3.3.3.3. Both routers belong to the same AS Configure an aggregate address on the router with ID 1.1.1.1 for the prefix
R1 is a route reflector with a router ID of 1.111. and the originator of the prefix is a route reflector client, which has a router ID of 3.3.3.3. Both routers belong to the same AS Configure an aggregate address on the router with ID 1.1.1.1 for the prefix
R1 is a route reflector client of a RR with a router ID of 1.1.1.1. and the originator of the prefix has a router ID of 3.3.3.3. Both routers belong to the same AS. Configure an aggregate address on the router with ID 3 3.3.3 for the prefix.
Refer to the exhibit.

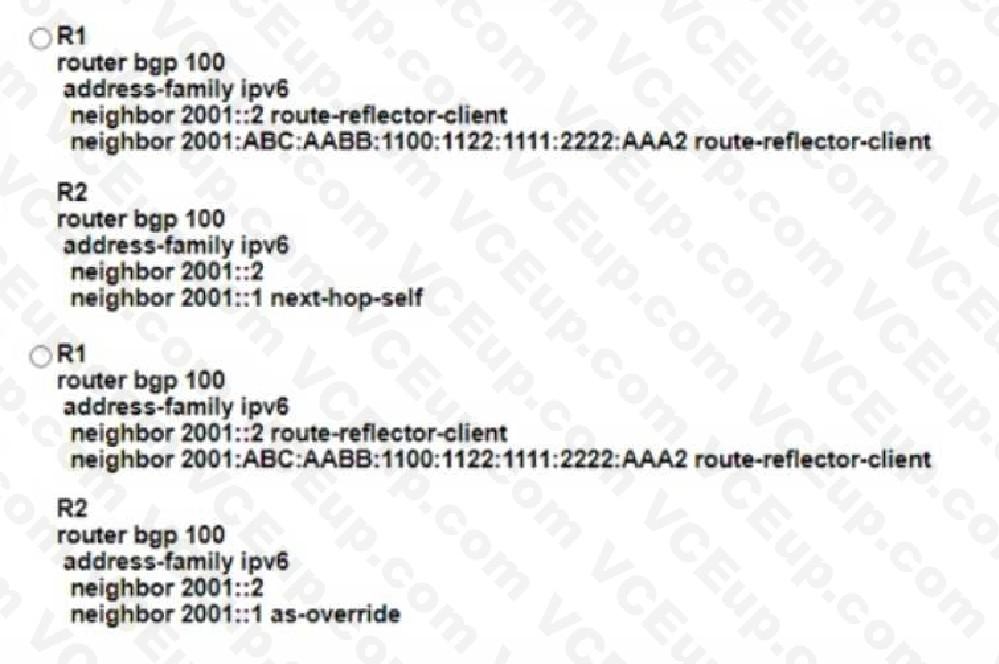

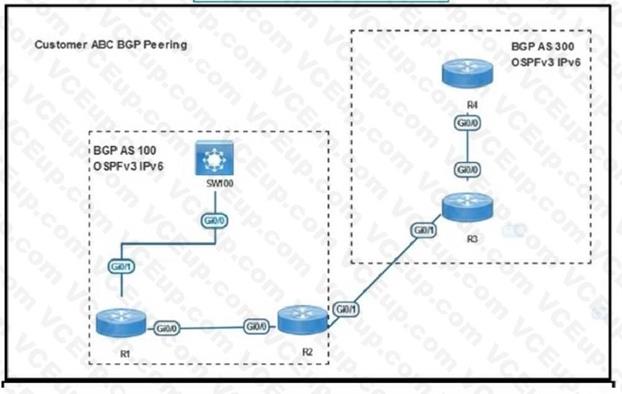

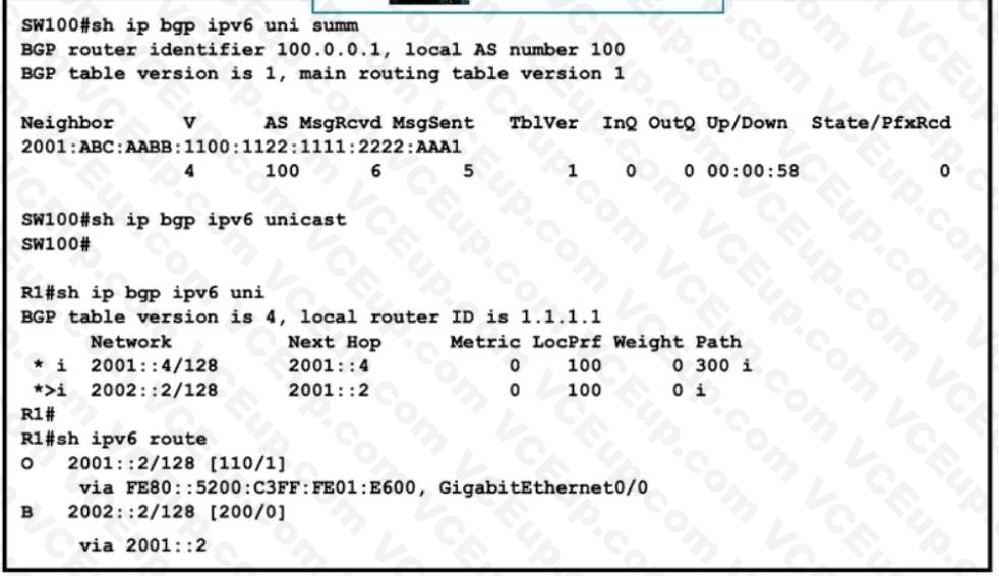

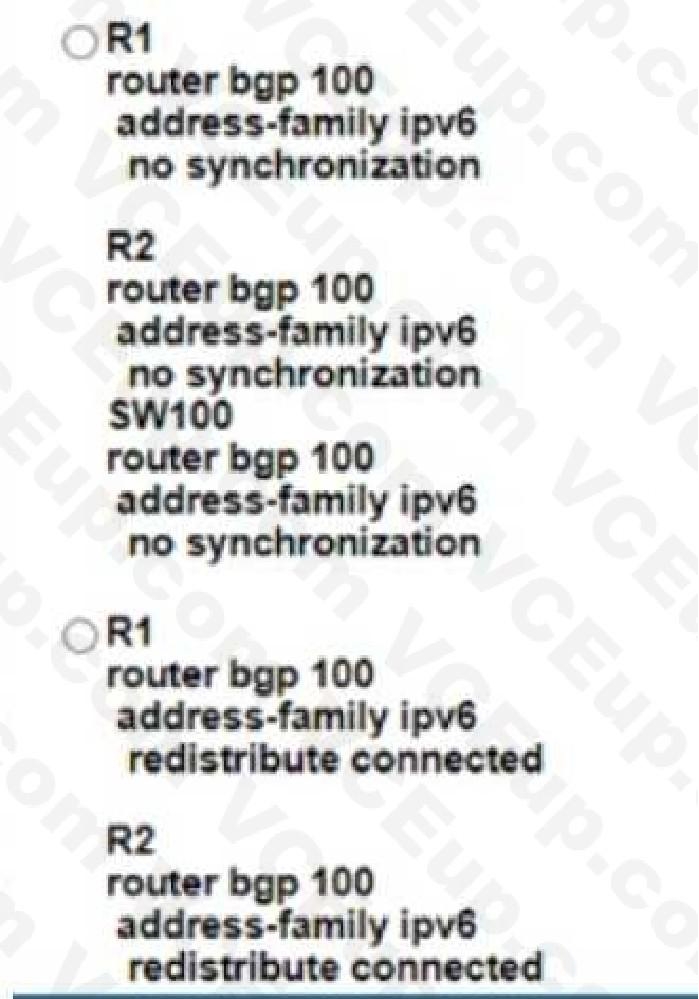

Refer to the exhibit SW100 cannot receive routes from R1 Which configuration resolves the issue?
Option A
Option B
Option C
Option C
Refer to the exhibit.

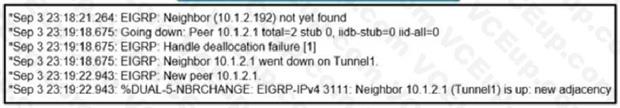

Refer to the exhibit. Which configuration command establishes an EIGRP neighbor adjacency between the hub and spoke?
connected 10.1.2.192 command on spoke router
network 10.1.2.192 command on spoke router
eigrp-peer 10.1.2.192 command on the hub router
neighbor 10.1.2.192 command on hub router
Refer to the exhibit.

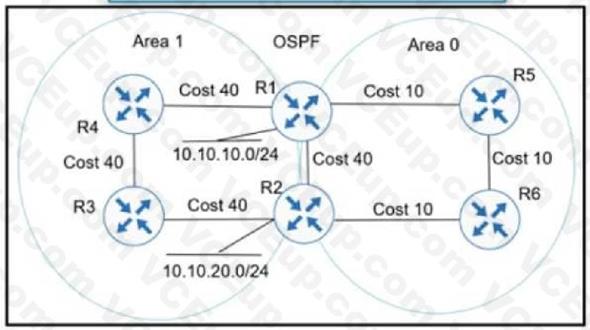

Refer to the exhibit Which action ensures that 10 10 10 0/24 reaches 10 10 20 0/24 through the direct link between R1 and R2?
Configure R1 and R2 LAN links as nonpassive.
Configure R1 and R2 links under area 1
Configure OSPF link cost to 1 between R1 and R2
Configure OSPF path cost to 3 between R1 and R2
Refer to the exhibit.

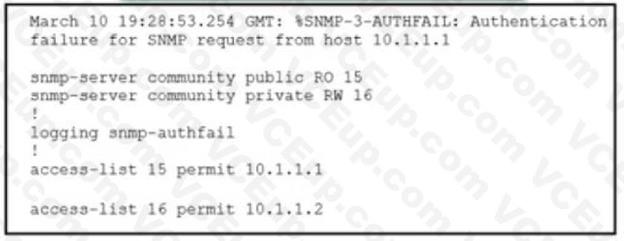

Refer to the exhibit Which action resolves the issue?
Configure host IP address in access-list 16
Configure SNMPv3 on the router
Configure SNMP authentication on the router
Configure a valid SNMP community string
Refer to the exhibit.
Refer to lhe exhibit After an engineer configured a new Cisco rouler as a DHCP server, users reponed iwo primary issues:
Devices in the HR subnet have intermittent connectivity problems.
Workstations in the LEGAL subnet cannot obtain IP addresses.
Which configurations must the engineer apply to ROUTER_1 to restore connectivity for the affected devices?
Option A
Option B
Option C
Option D
