Which statement about IPv6 RA Guard is true?
It does not offer protection in environments where IPv6 traffic is tunneled.
It cannot be configured on a switch port interface in the ingress direction.
Packets that are dropped by IPv6 RA Guard cannot be spanned.
It is not supported in hardware when TCAM is programmed.
An engineer is trying to copy an IOS file from one router to another router by using TFTP. Which two actions are needed to allow the file to copy? (Choose two.)
Copy the file to the destination router with the copy tftp: flash: command
Enable the TFTP server on the source router with the tftp-server flash: <filename> command
TFTP is not supported in recent IOS versions, so an alternative method must be used
Configure a user on the source router with the username tftp password tftp command
Configure the TFTP authentication on the source router with the tftp-server authentication local command

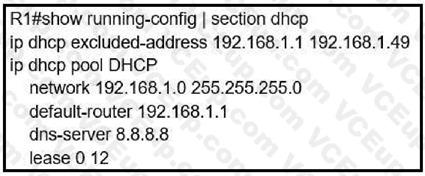

Refer to the exhibit.
Users report that IP addresses cannot be acquired from the DHCP server. The DHCP server is configured as shown. About 300 total nonconcurrent users are using this DHCP server, but none of them are active for more than two hours per day. Which action fixes the issue within the current resources?
Modify the subnet mask to the network 192.168.1.0 255.255.254.0 command in the DHCP pool
Configure the DHCP lease time to a smaller value
Configure the DHCP lease time to a bigger value
Add the network 192.168.2.0 255.255.255.0 command to the DHCP pool

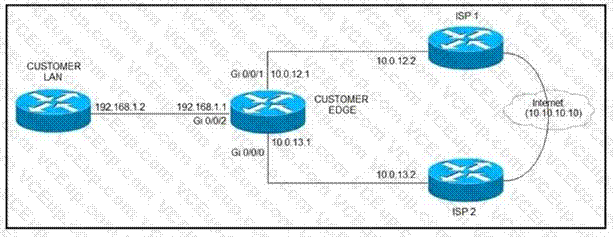

Refer to the exhibit.
ISP 1 and ISP 2 directly connect to the Internet. A customer is tracking both ISP links to achieve redundancy and cannot see the Cisco IOS IP SLA tracking output on the router console.
Which command is missing from the IP SLA configuration?
Start-time 00:00
Start-time 0
Start-time immediately
Start-time now

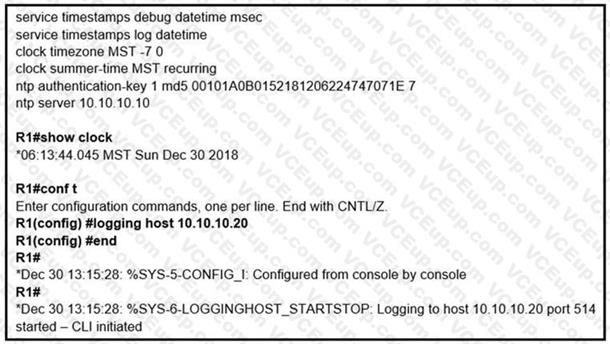

Refer to the exhibit.
An administrator noticed that after a change was made on R1, the timestamps on the system logs did not match the clock. What is the reason for this error?
An authentication error with the NTP server results in an incorrect timestamp.
The keyword localtime is not defined on the timestamp service command.
The NTP server is in a different time zone.
The system clock is set incorrectly to summer-time hours.
A network engineer is investigating a flapping (up/down) interface issue on a core switch that is synchronized to an NTP server. Log output currently does not show the time of the flap. Which command allows the logging on the switch to show the time of the flap according to the clock on the device?
service timestamps log uptime
clock summer-time mst recurring 2 Sunday mar 2:00 1 Sunday nov 2:00
service timestamps log datetime localtime show-timezone
clock calendar-valid
When provisioning a device in Cisco DNA Center, the engineer sees the error message "Cannot select the device. Not compatible with template".
What is the reason for the error?
The template has an incorrect configuration.
The software version of the template is different from the software version of the device.
The changes to the template were not committed.
The tag that was used to filter the templates does not match the device tag.
While working with software images, an engineer observes that Cisco DNA Center cannot upload its software image directly from the device. Why is the image not uploading?
The device must be resynced to Cisco DNA Center.
The software image for the device is in install mode.
The device has lost connectivity to Cisco DNA Center.
The software image for the device is in bundle mode
An engineer configured the wrong default gateway for the Cisco DNA Center enterprise interface during the install. Which command must the engineer run to correct the configuration?
sudo maglev-config update
sudo maglev install config update
sudo maglev reinstall
sudo update config install
Refer to the exhibit.
An administrator that is connected to the console does not see debug messages when remote users log in. Which action ensures that debug messages are displayed for remote logins?
Enter the transport input ssh configuration command.
Enter the terminal monitor exec command.
Enter the logging console debugging configuration command.
Enter the aaa new-model configuration command.
