What is a MPLS PHP label operation?

Refer to the exhibit.

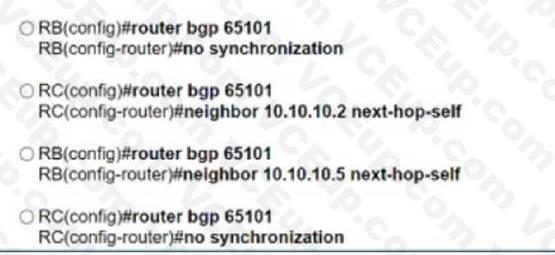

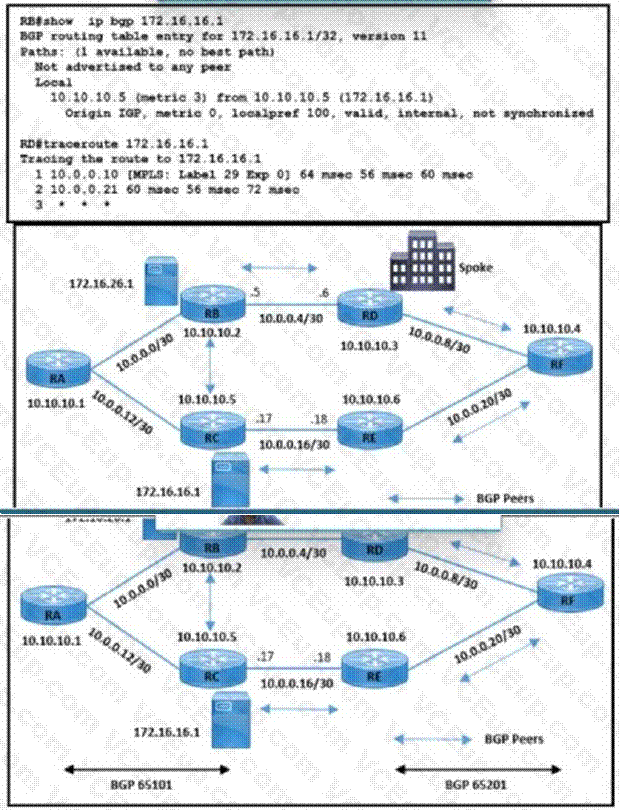

Refer to the exhibit A customer reported an issue with a fiber link failure between RC and RE Users connected through the spoke location face disconnection and packet drops with the primary email server (172.16.16.1) but have no issues with the backup email server (172.16.26.1). All the router loopback IPs are advertised through the OSPF protocol. Which configuration resolves the issue?

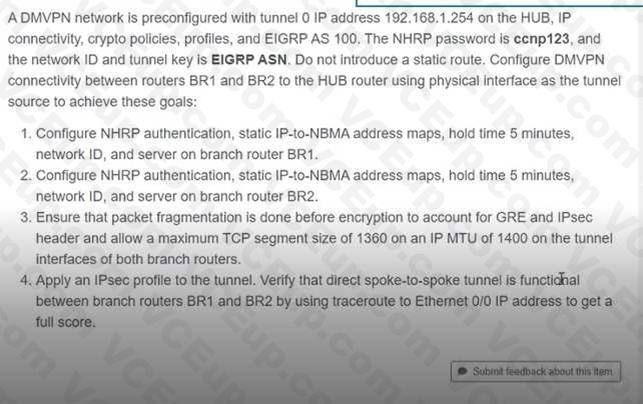

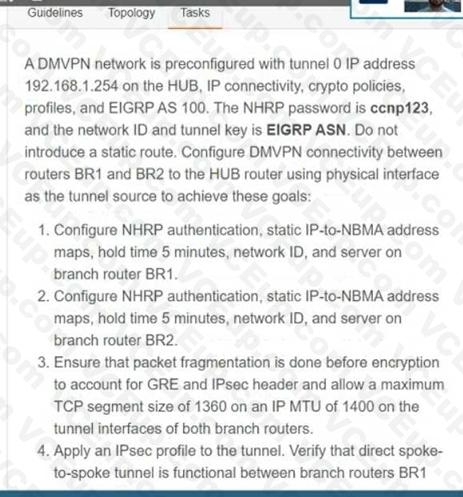

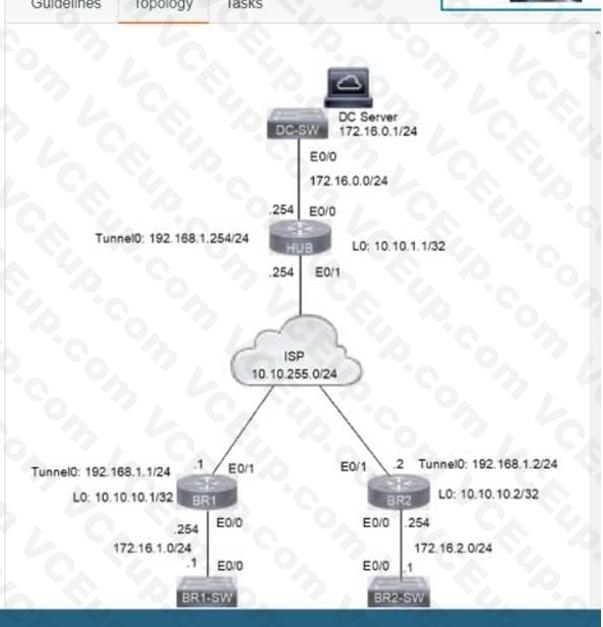

A DMVPN network is preconfigured with tunnel 0 IP address 192.168.1.254 on the HUB, IP connectivity, crypto policies, profiles, and EIGRP AS 100. The NHRP password is ccnp123, and the network ID and tunnel key is EIGRP ASN Do not introduce a static route. Configure DMVPN connectivity between routers BR1 and BR2 to the HUB router using physical interface as the tunnel source to achieve these goals:

DRAG DROP

An engineer must establish a connection between two CE routers for two customers with overlapping IP addresses Customer_a is connected to interfaces Gig0/0, and Customer_b is connected to interfaces Gig0/1. Routers CE1 and CE2 are configured as follows:

Drag and drop the code snippets from the right onto the boxes in the configuration to establish the needed connection. Snippets may be used more than once.

Refer to the exhibit.

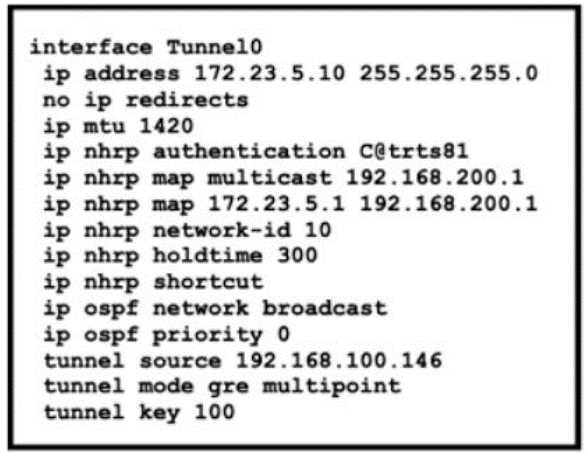

A network engineer is adding a new spoke router into an existing DMVPN Phase 3 tunnel with a hub router to provide secure communication between sites Which additional configuration must the engineer apply to enable the tunnel to come up?

Refer to the exhibit.

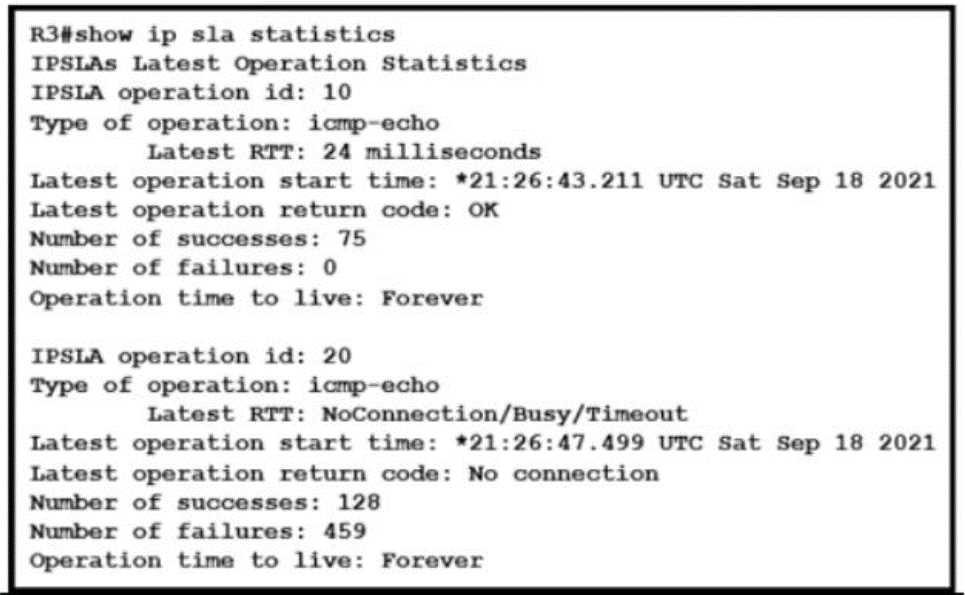

Refer to the exhibit A network engineer notices that the configured track option is down Which configuration resolves the issue*?

Refer to the exhibit.

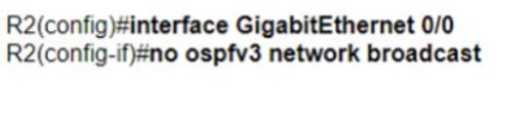

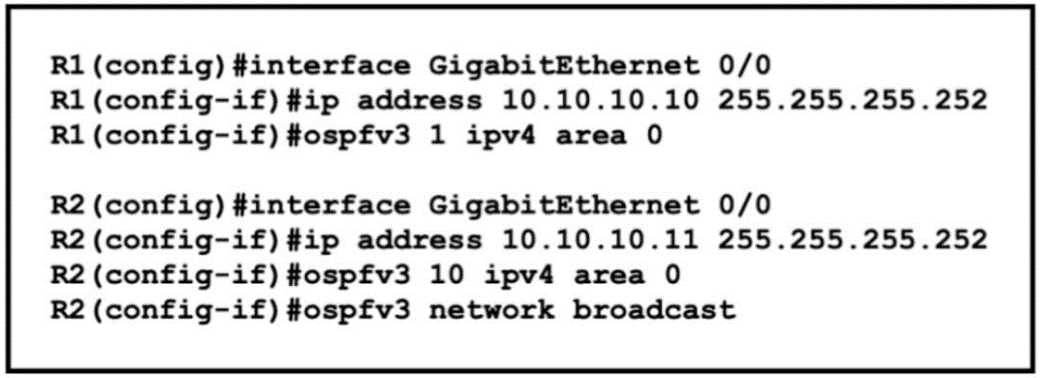

Refer to the exhibit An engineer is troubleshooting an OSPF adjacency issue between directly connected routers R1 and R2 Which configuration resolves the issue?

A)

B)

C)

D)

Refer to the exhibit.

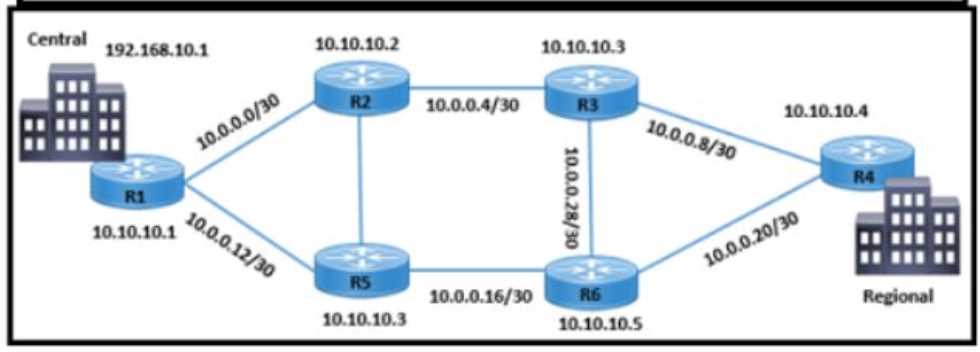

Refer to me exhibit Traffic from R3 to the central site does not use alternate paths when R3 cannot reach 10 10 10 2 Traffic on R3 destined to R4 takes an alternate route via 10 10 10.6 when 10 10 10 4 is not accessible from R3 Which configuration switches traffic destined to 10 10 10 2 from R3 on the alternate path''

Refer to the exhibit.

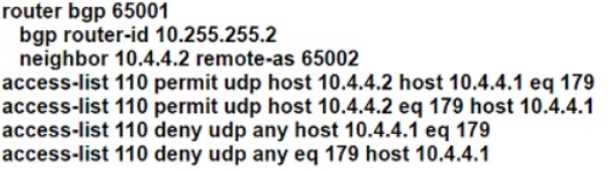

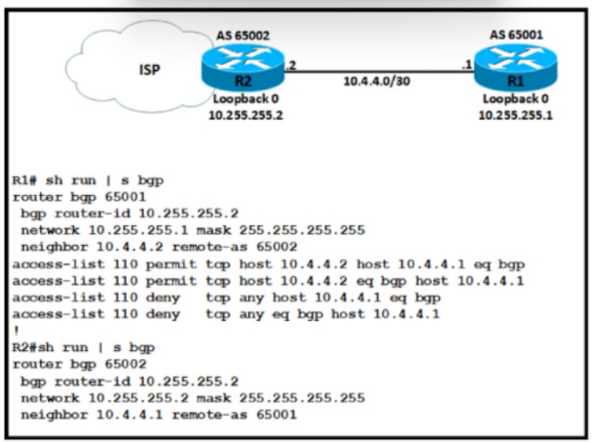

Refer to the exhibit A network engineer notices that R1 and R2 cannot establish an eBGP peering.

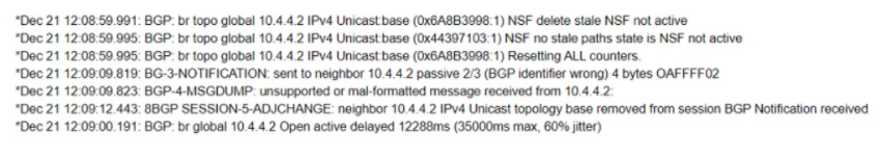

The following messages appear in the log:

Which configuration must the engineer apply to R1 to restore the eBGP peering?

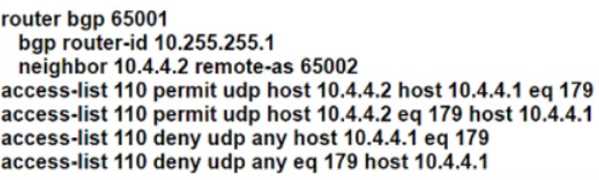

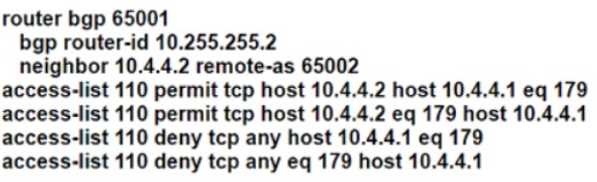

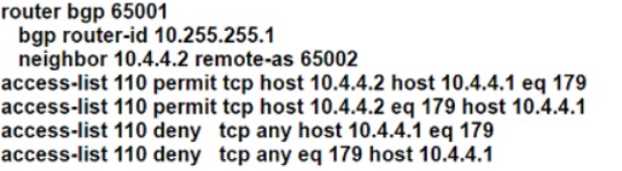

A)

B)

C)

D)
