Question 61

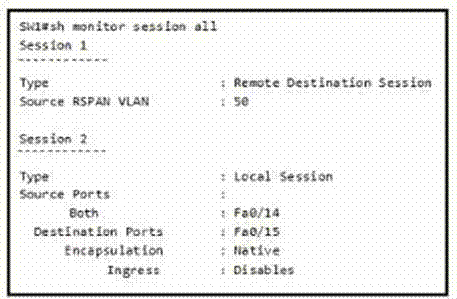

Refer to the exhibit.
An engineer configures monitoring on SW1 and enters the show command to verify operation. What does the output confirm?
SPAN session 1 monitors activity on VLAN 50 of a remote switch
SPAN session 2 only monitors egress traffic exiting port FastEthernet 0/14.
SPAN session 2 monitors all traffic entering and exiting port FastEthernet 0/15.
RSPAN session 1 is incompletely configured for monitoring
SW1 has been configured with the following commands:
SW1(config)#monitor session 1 source remote vlan 50 SW1(config)#monitor session 2 source interface fa0/14 SW1(config)#monitor session 2 destination interface fa0/15 The session 1 on SW1 was configured for Remote SPAN (RSPAN) while session 2 was configured for local SPAN. For RSPAN we need to configure the destination port to complete the configuration.
Note: In fact we cannot create such a session like session 1 because if we only configure ?Source RSPAN VLAN 50? (with the command ?monitor session 1 source remote vlan 50?) then we will receive a ?Type: Remote Source Session?
(not ?Remote Destination Session?).
Question 62

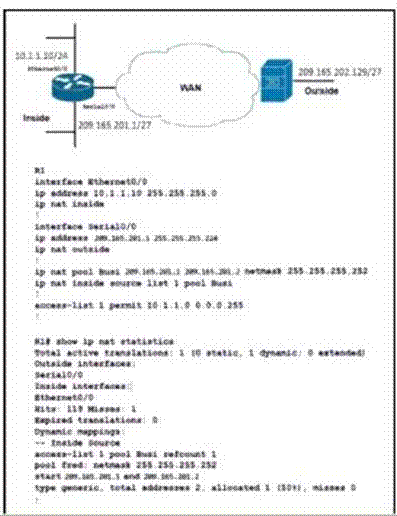

Refer to the exhibit. A network engineer configures NAT on R1 and enters me show command to verity the configuration What does the output confirm?
The first pocket triggered NAT to add on entry to NAT table
R1 is configured with NAT overload parameters
A Telnet from 160.1.1 1 to 10.1.1.10 has been initiated.
R1 to configured with PAT overload parameters
Question 63
An engineer is troubleshooting the Ap join process using DNS. Which FQDN must be resolvable on the network for the access points to successfully register to the WLC?
wlcbostname.domain.com
cisco-capwap-controller.domain.com
ap-manager.domain.com
primary-wlc.domain.com
DNS: If you have configured your DHCP server to provide both option 006 (DNS server address) and option 015 (domain name) information, the AP can obtain WLC addresses from the DNS server. The process works as follows:
1. The AP gets its IP address from DHCP with options 6 and 15 configured.
2. The AP can obtain the IP address of the DNS server from the DHCP option.
3. The AP uses this information to perform a hostname lookup using CISCO-CAPWAPCONTROLLER.< localdomain>, which resolves to available WLC management interface IP addresses
(IPv4 or IPv6, or both).
4. The AP can then perform a directed message to associate to responsive WLCs.
To prevent all APs from joining a single controller based on a DNS name resolution, the domain name may vary; this is what is done to dispatch APs to different controllers across the enterprise network, based on different domain names that are configured in their respective DNS scopes.
Question 64

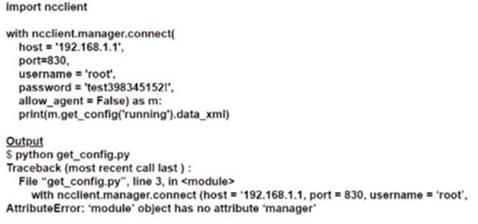

Running the script causes the output in the exhibit. Which change to the first line of the script resolves the error?
from ncclient import
import manager
from ncclient import*
import ncclient manager
Question 65

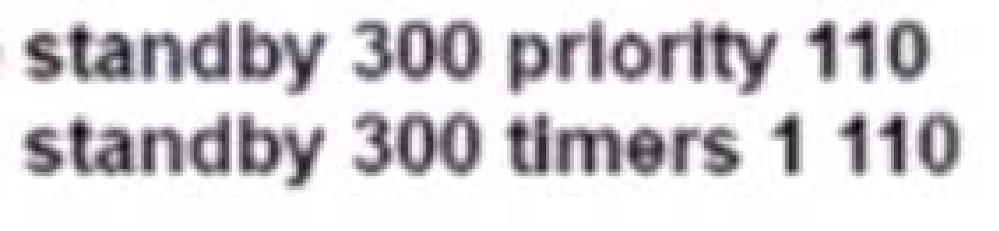

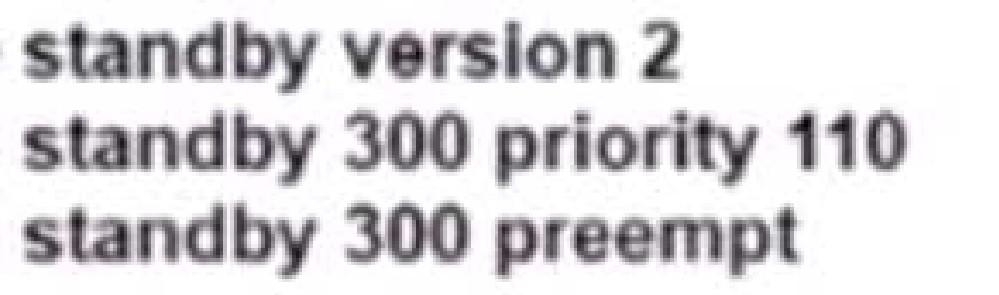

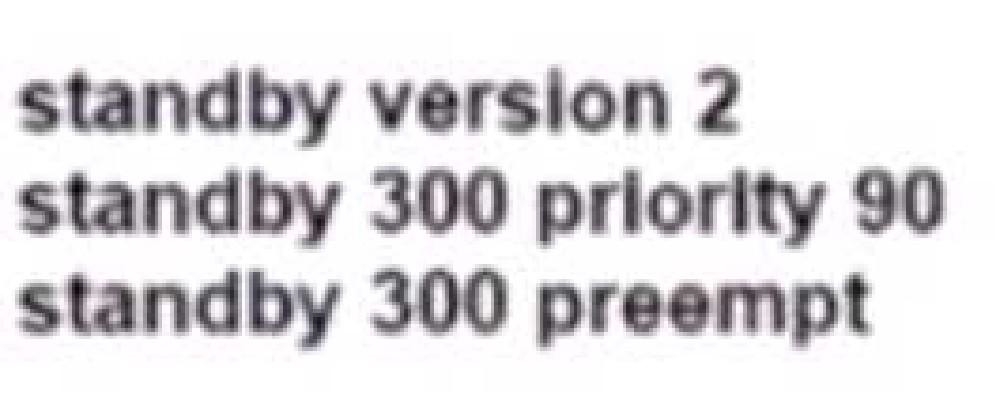

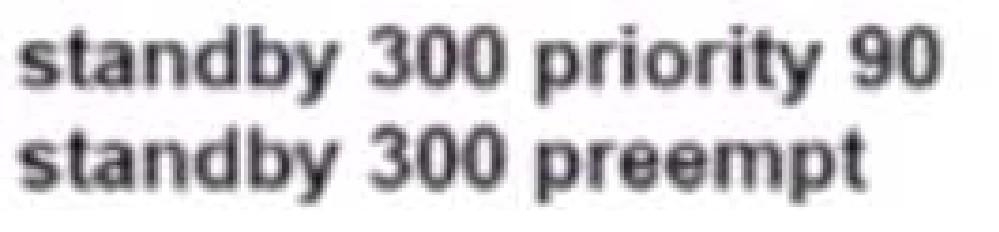

An engineer must configure HSRP group 300 on a Cisco IOS router. When the router is functional, it must be the must be the active HSRP router. The peer router has been configured using the default priority value. Which command set is required?
Question 66

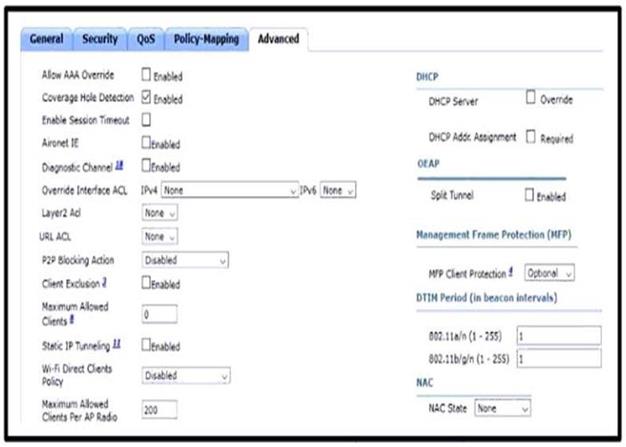

Refer to the exhibit. An engineer is investigating why guest users are able to access other guest user devices when the users are connected to the customer guest WLAN. What action resolves this issue?
implement MFP client protection
implement split tunneling
implement P2P blocking
implement Wi-Fi direct policy
This control determines whether the Wireless LAN Controller is configured to prevent clients connected to the same Wireless Local Area Controller from communicating with each other.
Wireless Client Isolation prevents wireless clients from communicating with each other over the RF.
Packets that arrive on the wireless interface are forwarded only out the wired interface of an Access Point. One wireless client could potentially compromise another client sharing the same wireless network.
Question 67
Which characteristic distinguishes Ansible from Chef?
Ansible lacs redundancy support for the master server. Chef runs two masters in an active/active mode.
Ansible uses Ruby to manage configurations. Chef uses YAML to manage configurations.
Ansible pushes the configuration to the client. Chef client pulls the configuration from the server.
The Ansible server can run on Linux, Unix or Windows. The Chef server must run on Linux or Unix.
Question 68

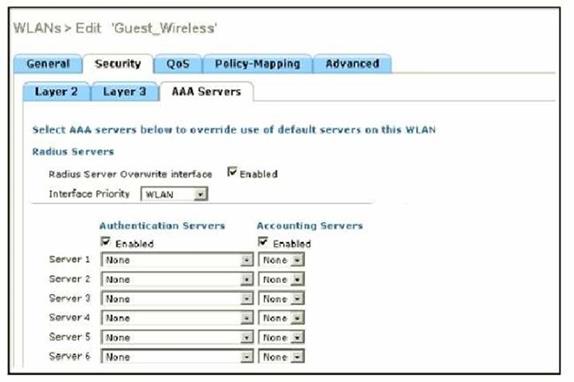

Refer to the exhibit.
Assuming the WLC's interfaces are not in the same subnet as the RADIUS server, which interface would the WLC use as the source for all RADIUS-related traffic?
the interface specified on the WLAN configuration
any interface configured on the WLC
the controller management interface
the controller virtual interface
Question 69
In an SD-Access solution what is the role of a fabric edge node?
to connect external Layer 3- network to the SD-Access fabric
to connect wired endpoint to the SD-Access fabric
to advertise fabric IP address space to external network
to connect the fusion router to the SD-Access fabric
+ Fabric edge node: This fabric device (for example, access or distribution layer device) connects
Question 70
What is a benefit of a virtual machine when compared with a physical server?
Multiple virtual servers can be deployed on the same physical server without having to buy additional hardware.
Virtual machines increase server processing performance.
The CPU and RAM resources on a virtual machine cannot be affected by other virtual machines.
Deploying a virtual machine is technically less complex than deploying a physical server.
