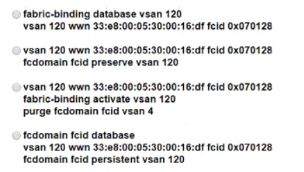

The correct command set is Option C, which includes the commandfcdomain fcid persistent vsan 120. This command ensures that the Fibre Channel IDs (fcid) are saved across reboots for VSAN 120, meeting the requirement for persistent Fibre Channel IDs. The other commands in Option C are used to set the WWN and fcid as per the given requirements.

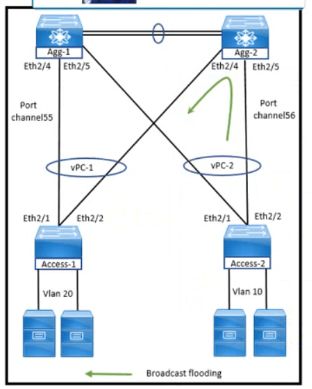

In a vPC (Virtual Port Channel) environment, broadcast packets received on the vPC peer link are not forwarded out on the vPC member ports. This behavior is due to the vPC loop avoidance rule, which prevents traffic received on a vPC peer link from being sent back out of the vPC member ports. Therefore, the Agg-1 switch will prevent broadcast packets that arrive on the vPC peer link from exiting the switch on ports Eth2/4 and Eth2/5.

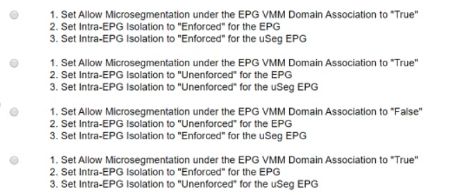

To block traffic between a subset of endpoints in an EPG based on specific VM attributes and the rest of the VMs in that EPG, the correct set of actions would involve setting ''Allow Microsegmentation'' under the EPG VMM Domain Association to ''True'' and setting ''Intra-EPG Isolation'' to ''Enforced'' for both the EPG and the uSeg EPG. This configuration ensures that microsegmentation is allowed and that intra-EPG isolation is enforced, effectively blocking the specified traffic.

The Implementing and Operating Cisco Data Center Core Technologies (DCCOR) course provides insights into the implementation of data center technologies, including network, compute, storage network, automation, and security1.

The Cisco Community articles on VMM Integration & Troubleshooting and ACI VMM integration provide practical guidance and troubleshooting tips for integrating VMM domains with Cisco ACI23.

For detailed procedures and additional information, the configuration guides and training materials available on Cisco's official website are valuable resources

OSPFv2 can be configured for unicast updates and decentralized communication through a point-to-point (p2p) network type on the interface connecting the Cisco Nexus switches.This configuration ensures that OSPFv2 updates are sent directly between the two switches without the need for a designated router, meeting all listed requirements including full adjacency1.

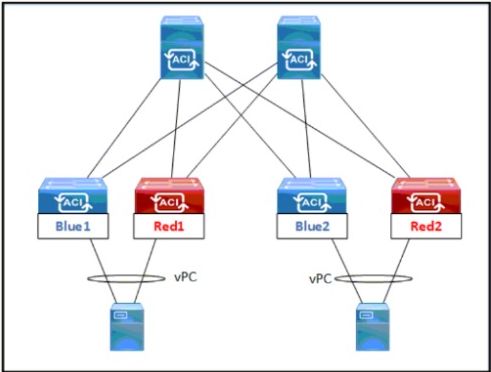

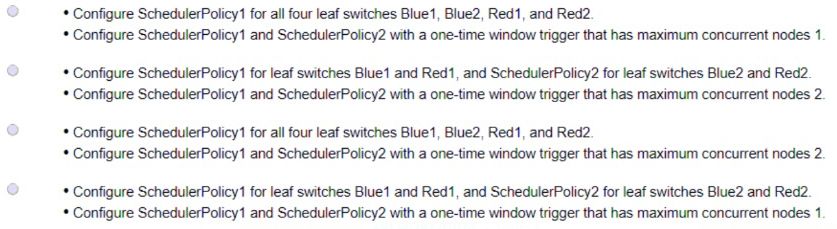

To schedule the firmware upgrade of the Red1 and Red2 leaf switches with the requirements of minimal upgrade time, no service impact, and parallel upgrade, SchedulerPolicy1 and SchedulerPolicy2 with a one-time window trigger that has maximum concurrent nodes 2 should be used. This allows both Red1 and Red2 to upgrade simultaneously within the same maintenance window, thus minimizing the time and avoiding any service disruption.

This type of backup includes information about VLANs, VSANs, and other policies and is in XML format, which is human-readable.Although the question specifies the use of UDP, none of the options provided use UDP as they are all TCP-based protocols; however, TFTP is often confused with being UDP-based because it is a lightweight protoco

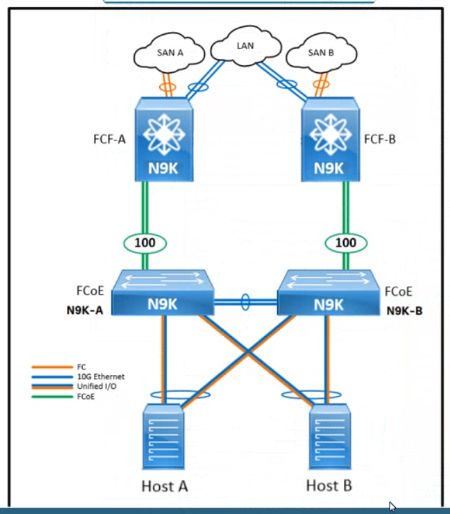

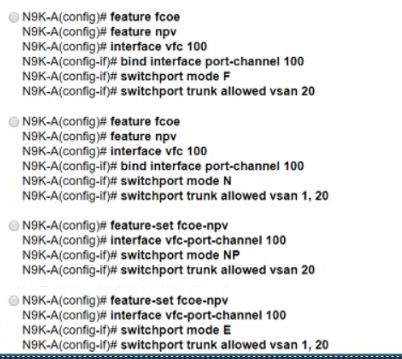

to configure FCoE between the N9K-A switch and the FCF-A Nexus 9000 core switch with the given characteristics, the correct configuration would be the one that enables FCoE NPV mode, binds the interface to a port-channel, and allows only VSAN 20 on the trunk.Based on the provided CLI configurations, the correct answer would beOption Das it configures the switch in NPV mode and allows only VSAN 20

The auditor requires read-only access to perform the configuration review. Thepermit command show *grants the auditor access to allshowcommands, which are typically used to view configurations and statuses without making changes, thus maintaining the read-only requirement.Reference: This is aligned with the best practices for role-based access control (RBAC) in Cisco Nexus switches, as detailed in the DCCOR course materials.

In Cisco ACI, an interface policy group can be linked to multiple Attachable Access Entity Profiles (AAEPs) to support connectivity for various EPGs with L3Outs. This setup allows for the concurrent support of L3Out connectivity and multiple EPGs on a single access port.Reference: This concept is covered in the section on ACI access policies in the DCCOR course.
