Cisco 350-601 Practice Test - Questions Answers, Page 9

EPLD upgrades on Cisco MDS 9000 series switches can be done without powering down the module during the upgrade (Option B), which allows for continuous operation and no downtime. Additionally, EPLDs can be upgraded without replacing the hardware (Option D), making the process more cost-effective and less resource-intensive.Reference:=Cisco Data Center Core Technologies

https://www.cisco.com/c/en/us/td/docs/switches/datacenter/mds9000/sw/7_3/upgrade/upgrade.html

Before a maintenance policy can be committed, it is essential to set the policy to apply the change on the next reboot (Option C). This ensures that the changes are applied in a controlled manner, avoiding any immediate disruptions.Reference:=Cisco Data Center Core Technologies

https://www.cisco.com/c/en/us/td/docs/unified_computing/ucs/ucs-manager/CLI-User-Guides/Admin-

Management/3-1/b_Cisco_UCS_Manager_CLI_Administration_Mgmt_Guide_3_1/

b_Cisco_UCS_Manager_CLI_Administration_Mgmt_Guide_3_1_chapter_01100.html

EPLD updates on Cisco MDS 9000 Series Switches are characterized by updating hardware functionality on a device (Option B). This means that the updates can enhance device capabilities or address issues without the need for physical hardware changes.Reference:=Cisco Data Center Core Technologies

https://www.cisco.com/c/en/us/td/docs/switches/datacenter/mds9000/sw/6_2/release/notes/epld/epld_rn.html

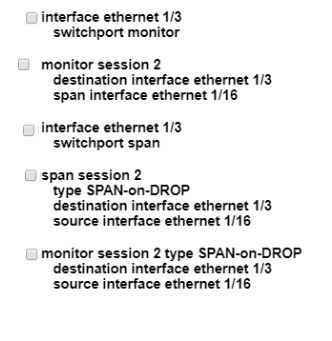

Option C and Option D are correct because they configure the SPAN session to monitor the source interface ethernet 1/16 and send the traffic to the destination interface ethernet 1/3. These options also include the use of thetype SPAN-on-DROPcommand, which ensures that only dropped packets are sent to the analyzer, thus conserving disk space.

https://www.cisco.com/c/en/us/products/collateral/switches/nexus-5000-series-switches/white-paper-c11-733022.html

NETCONF is the ideal solution for this scenario for the following reasons:

Standards-based:NETCONF is built upon industry-standard protocols (XML, SSH, TLS) ensuring compatibility and adherence to open standards.

Secure transport:NETCONF mandates secure transport mechanisms like SSH or TLS for communication between the automation software and managed devices, aligning with security requirements.

Data Format:NETCONF utilizes XML for data encoding and transport, providing a human-readable and machine-parsable format that is easy to work with.

Remote Device Automation:NETCONF is designed specifically for remote configuration and management of network devices, making it perfect for the task of automating remote device deployments.

SPAN (Switched Port Analyzer) is a feature that allows network traffic from one or more source ports to be mirrored to a destination port for analysis. When configuring SPAN on a Cisco Nexus 5000 Series switch, two characteristics must be considered:

A SPAN source port can be monitored in multiple SPAN sessions. This means that the same port can send traffic to different destination ports for different purposes or applications.

A SPAN source port cannot be a destination SPAN port. This means that a port cannot receive traffic from another port that it is already monitoring. This prevents loops and conflicts in the SPAN configuration.

https://www.cisco.com/en/US/docs/switches/datacenter/nexus5000/sw/configuration/guide/cli_rel_4_1/Cisco_Nexus_5000_Series_Switch_CLI_Software_Configuration_Guide_chapter50.html

Network-attached storage (NAS) is a solution that provides remote and direct file-level access to users and systems. NAS devices are connected to the network and offer shared storage space for files and data. Users and systems can access the files using standard protocols such as NFS or SMB. NAS devices can also offer features such as backup, replication, and security.

FCoE (Fibre Channel over Ethernet) is a technology that allows Fibre Channel traffic to be encapsulated and transported over Ethernet networks. FCoE requires the use of FCFs (Fibre Channel Forwarders), which are devices that act as bridges between the FCoE and Fibre Channel domains. FCFs can be configured with a priority value that determines their preference for connecting to CNAs (Converged Network Adapters), which are devices that support both Ethernet and Fibre Channel protocols. The priority value ranges from 0 to 1024, with 0 being the lowest and 1024 being the highest. To configure an MDS switch as the best switch to connect by the CNAs in the fabric, the fcoe fcf-priority 1024 command should be applied. This gives the switch the highest priority and makes it the most preferred FCF for the CNAs.

https://www.cisco.com/c/en/us/td/docs/switches/datacenter/nexus5000/sw/fcoe/521n11/b_5k_FCoE_Config_521N11/ b_5k_FCoE_Config_521N11_chapter_011.pdf
