Which NFS version uses the TCP protocol and needs only one IP port to run the service?

A.

NFSv1

A.

NFSv1

Answers
B.

NFSv2

B.

NFSv2

Answers
C.

NFSv3

C.

NFSv3

Answers
D.

NFSv4

D.

NFSv4

Answers
Suggested answer: D

Explanation:

NFSv4 uses the TCP protocol and requires only one IP port (2049) to run the service.This simplifies firewall configuration and improves security by reducing the number of open ports

What is a benefit of independent resource scaling in Cisco HyperFlex hybrid architecture?

A.

flexible expansion of compute, caching, and capacity

A.

flexible expansion of compute, caching, and capacity

Answers
B.

remote booting of converged servers

B.

remote booting of converged servers

Answers
C.

multivendor converged node hardware support

C.

multivendor converged node hardware support

Answers
D.

support for compute nodes with third-party storage

D.

support for compute nodes with third-party storage

Answers
Suggested answer: A

Explanation:

One of the benefits of independent resource scaling in Cisco HyperFlex hybrid architecture is the flexible expansion of compute, caching, and capacity.This allows for the addition of resources in the required ratios without being constrained by the limitations of traditional converged infrastructure3.

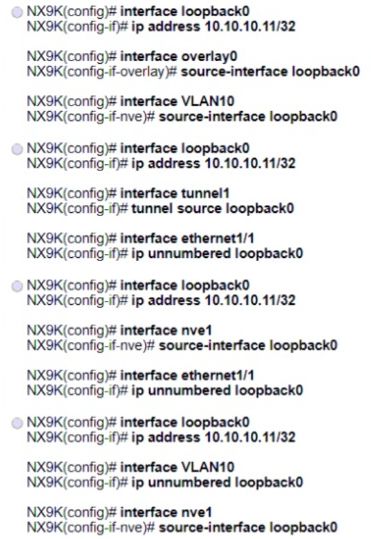

An engineer must perform an initial configuration of VXLAN Tunnel End-Point functionality on the Cisco Nexus 9000 Series platform All the necessary features are already enabled on the switch Which configuration set must be used to accomplish this goal?

A.

Option A

A.

Option A

Answers
B.

Option B

B.

Option B

Answers
C.

Option C

C.

Option C

Answers
D.

Option D

D.

Option D

Answers
Suggested answer: D

Explanation:

Option D is the correct configuration set for initializing VXLAN Tunnel End-Point functionality on a Cisco Nexus 9000 Series platform. This option includes the necessary commands to configure the loopback interface, which is used as the source for the VXLAN Network Virtual Endpoint (NVE) interface, and the NVE interface itself, which is essential for VXLAN operation.

An engineer mus! send JSON encoded telemetry data to an external collector. The transport mechanism must prevent tampenng or forgery of the data. Which protocol accomplishes this goal?

A.

GPB

A.

GPB

Answers
B.

HTTP

B.

HTTP

Answers
C.

gRPC

C.

gRPC

Answers
D.

DTLS

D.

DTLS

Answers
Suggested answer: B

Explanation:

DTLS (Datagram Transport Layer Security) is designed to provide security for datagram-based applications by allowing them to communicate in a way that is designed to prevent eavesdropping, tampering, or message forgery.It is suitable for securing JSON encoded telemetry data sent to an external collector1.

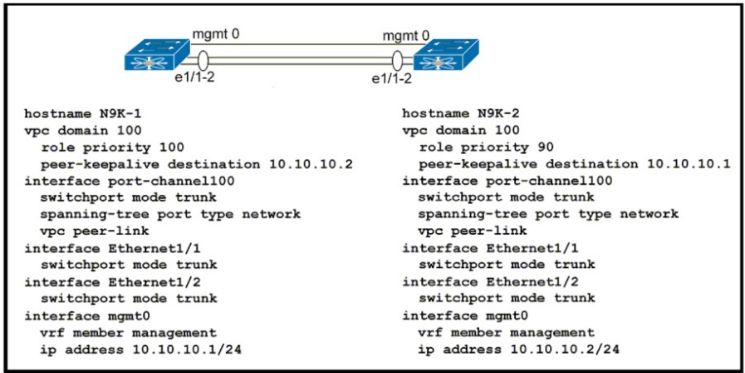

Refer to the exhibit.

Refer to the exhibit. Which action completes the vPC domain implementation?

A.

Allow VLANs on the vPC peer link member interfaces.

A.

Allow VLANs on the vPC peer link member interfaces.

Answers
B.

Include the VRF management on the vPC domain.

B.

Include the VRF management on the vPC domain.

Answers
C.

Configure the system MAC on the vPC domain.

C.

Configure the system MAC on the vPC domain.

Answers
D.

Add the vPC member ports to the vPC channel group.

D.

Add the vPC member ports to the vPC channel group.

Answers
Suggested answer: D

Explanation:

Completing the vPC domain implementation requires adding the vPC member ports to the vPC channel group.This action ensures that all member ports are correctly bundled into the vPC, allowing for consistent forwarding behavior and redundancy across the vPC peer switches2.

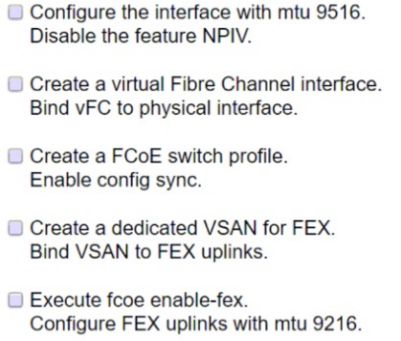

An engineer must implement the FCoE on the Cisco Nexus 9000 Series Switch-based infrastructure. The deployment will contain dual-homed fabric extenders and must support jumbo frames with port channels. Which two sets of actions complete the configuration? (Choose two.)

A.

Option A

A.

Option A

Answers
B.

Option B

B.

Option B

Answers
C.

Option C

C.

Option C

Answers
D.

Option D

D.

Option D

Answers
E.

Option E

E.

Option E

Answers
Suggested answer: A, D

Explanation:

To implement FCoE on a Cisco Nexus 9000 Series Switch-based infrastructure that includes dual-homed fabric extenders and supports jumbo frames with port channels, the engineer must configure the system to handle large frame sizes and ensure FCoE functionality is enabled on the fabric extenders. The actions in Option A include configuring the interface with an MTU of 9516 to support jumbo frames and disabling NPIV, which is not required for FCoE operation on fabric extenders.Option D involves executing the command 'fcoe enable-fex' to enable FCoE on the fabric extenders and setting the MTU to 9216 on FEX uplinks to support jumbo frames1

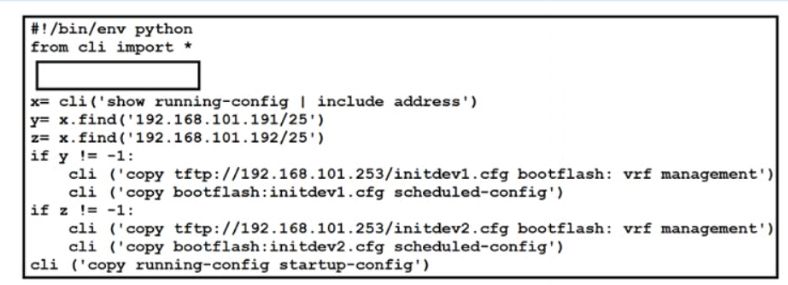

Refer to the exhibit.

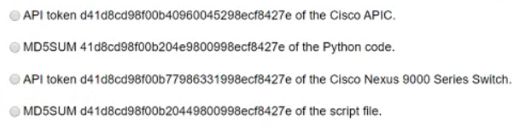

Refer to the exhibit. Which information must be added to the script to complete the POAP operation on the Cisco Nexus 9000 Series Switch?

A.

Option A

A.

Option A

Answers
B.

Option B

B.

Option B

Answers
C.

Option C

C.

Option C

Answers
D.

Option D

D.

Option D

Answers
Suggested answer: C

Explanation:

To complete the PowerOn Auto Provisioning (POAP) operation on a Cisco Nexus 9000 Series Switch, the script must include the necessary network information such as the interface IP address, gateway, and DNS server IP addresses.Option C likely contains this information, which is essential for the switch to locate a DHCP server, bootstrap itself, and download the configuration script for software image installation and configuration

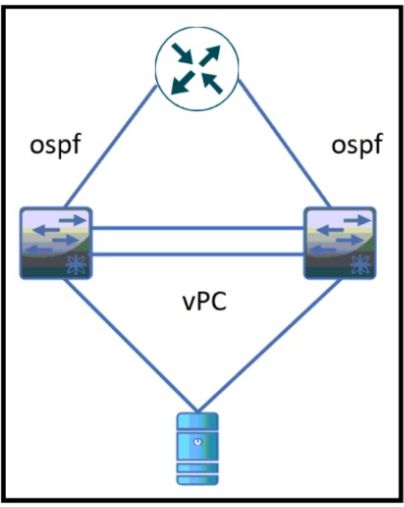

Refer to the exhibit.

Refer to the exhibit During a vPC peer switch reload, there is packet loss between the server and the router Which action must be taken to prevent this behavior during future reloads?

A.

Set the routed uplink ports of the Cisco Nexus peers as orphans.

A.

Set the routed uplink ports of the Cisco Nexus peers as orphans.

Answers
B.

Increase the vPC delay restore timer.

B.

Increase the vPC delay restore timer.

Answers
C.

Decrease the OSPF hello and dead interval timers.

C.

Decrease the OSPF hello and dead interval timers.

Answers
D.

Disable vPC ARP synchronize on the vPC peers.

D.

Disable vPC ARP synchronize on the vPC peers.

Answers
Suggested answer: B

Explanation:

Increasing the vPC delay restore timer can help prevent packet loss during a vPC peer switch reload.This timer delays the restoration of vPCs after a peer link recovery, allowing enough time for all the systems to stabilize and for routing protocols to converge, thus avoiding potential packet loss1.

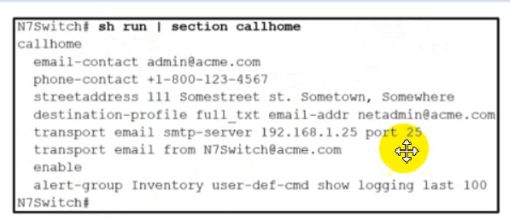

Refer to the exhibit.

Refer to the exhibit. A network engineer is configuring the Smart Call Home feature on a Cisco Nexus Series Switch. An email must be generated that contains the last 100 lines of the log every time a new piece of hardware is inserted into the chassis. Which command must be added to the configuration to receive the email?

A.

alert-group Linecard-Hardware user-def-cmd show logging last 100

A.

alert-group Linecard-Hardware user-def-cmd show logging last 100

Answers
B.

destination-profile Operations alert-group Inventory

B.

destination-profile Operations alert-group Inventory

Answers
C.

destination-profile Operations message-level 2

C.

destination-profile Operations message-level 2

Answers
D.

alert-group Operations user-def-cmd show logging last 100

D.

alert-group Operations user-def-cmd show logging last 100

Answers
Suggested answer: A

Explanation:

The command ''alert-group Inventory user-def-cmd show logging last 100'' is used to configure the Smart Call Home feature to generate an email with the last 100 lines of the log when new hardware is inserted.This command specifies the alert group 'Inventory' and the user-defined command to show the last 100 lines of the logging buffer

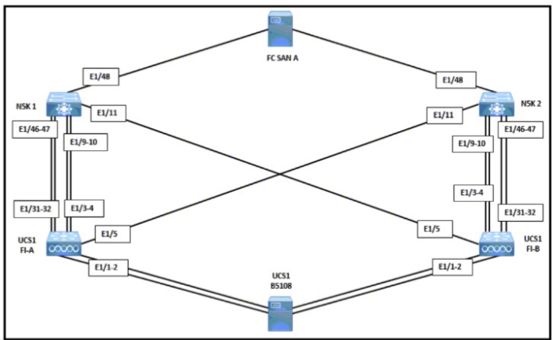

Refer to the exhibit.

A network engineer must configure port E1/31- 32 to forward only storage server traffic of VLAN 200 on Cisco fabric interconnects A and B. Port E1/31- 32 is not reserved for any other traffic. Which port type must be configured to accomplish this goal?

A.

unified uplink

A.

unified uplink

Answers
B.

uplink

B.

uplink

Answers
C.

FCoE uplink

C.

FCoE uplink

Answers
D.

FCoE storage

D.

FCoE storage

Answers
Suggested answer: C

Explanation:

The FCoE uplink port type is designed to carry Fibre Channel over Ethernet traffic, which is typically used for storage server communication.Configuring port E1/31-32 as FCoE uplinks will ensure that only storage server traffic for VLAN 200 is forwarded, aligning with the requirement to dedicate these ports solely for storage traffic
