Cisco 350-601 Practice Test - Questions Answers, Page 3
List of questions
Question 21
DRAG DROP

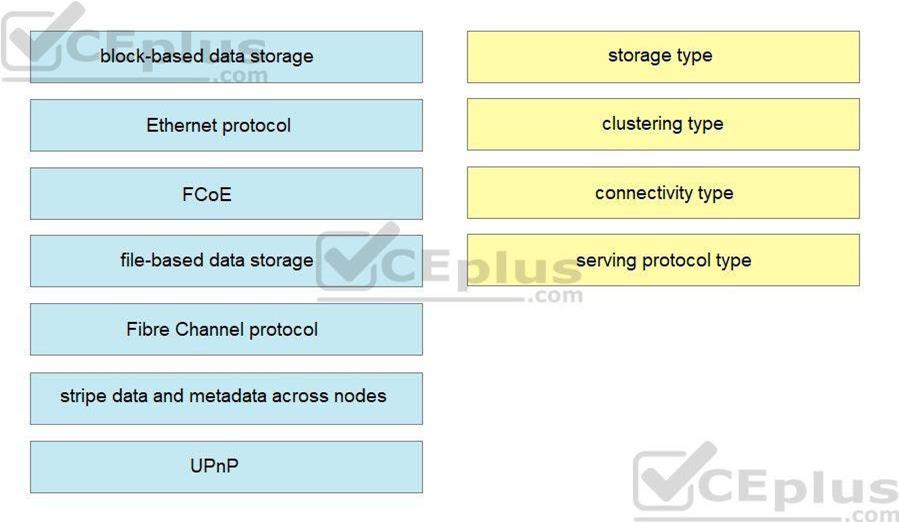

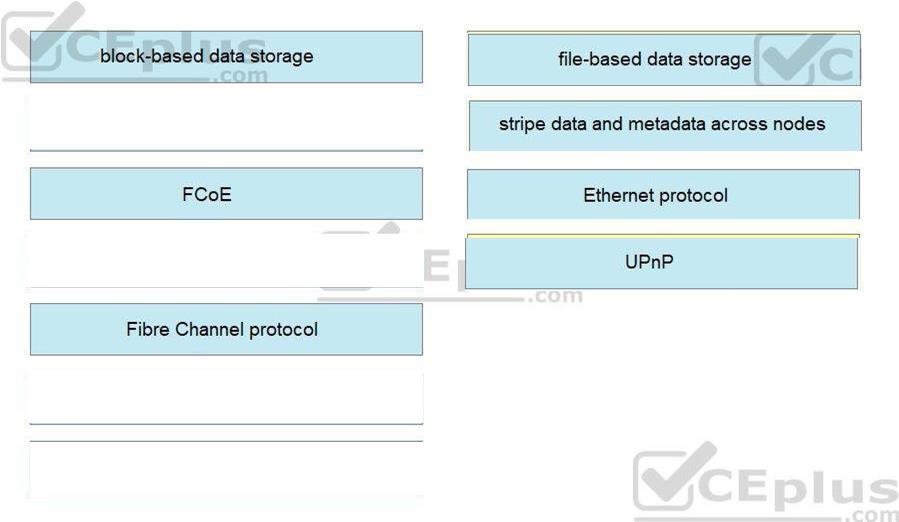

Drag and drop the characteristics from the left onto the NAS protocols on the right. Some characteristics are used more than once.
Question 22
DRAG DROP

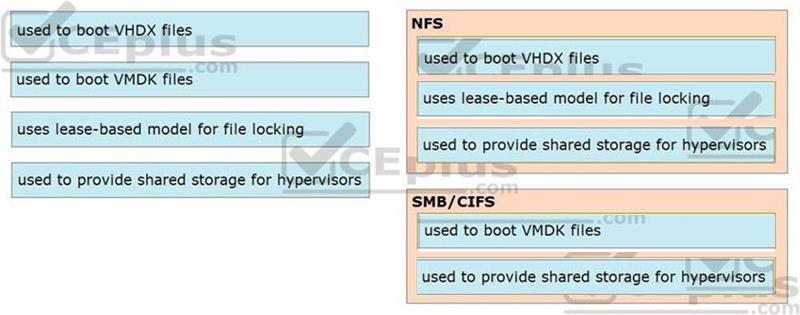

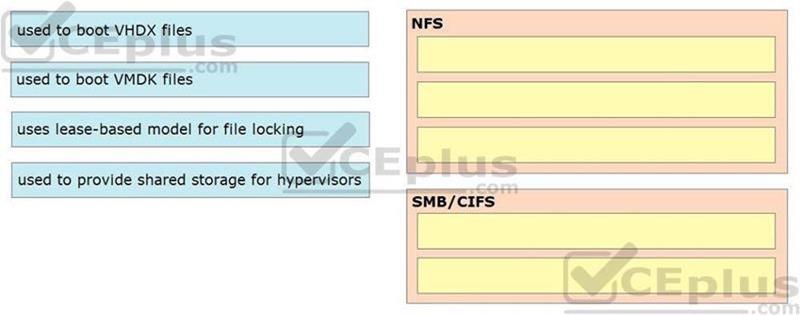

Drag and drop the NAS features from the left onto the NAS descriptions on the right. Not all features are used.
Reference:
https://en.wikipedia.org/wiki/Network-attached_storage
Question 23

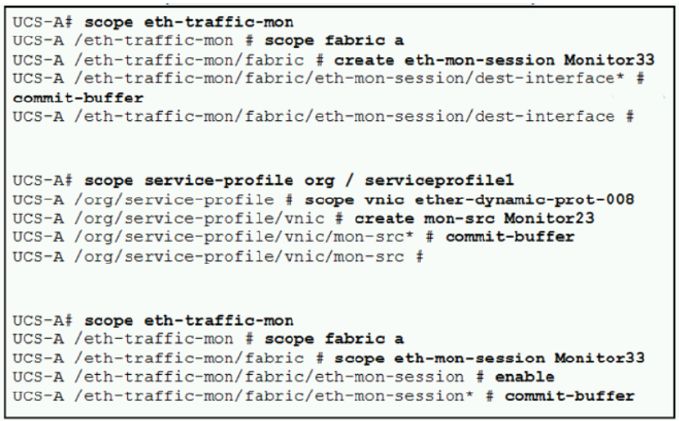

Refer to the exhibit.
Service degradation is reported on a VM that is deployed on a Cisco UCS blade server. The traffic from the vNIC is required to SPAN in both directions to a packet analyzer that is connected to UCS-A slot 2 port 12. Which two commands are needed to complete the configuration? (Choose two.)
UCS-A /org/service-profile/vnic/mon-src* # set direction both
UCS-A /eth-traffic-mon/fabric/eth-mon-session' # create dest-interface 2 12
UCS-A /org/service-profile/vnic/mon-src* # set direction receive transmit
UCS-A /eth-traffic-mon/fabric/eth-mon-session # activate
UCS-A /eth-traffic-mon/fabric/eth-mon-session* # create eth-mon-session/dest-interface 2 12
To SPAN traffic in both directions from a vNIC on a VM deployed on a Cisco UCS blade server to a packet analyzer connected to UCS-A slot 2 port 12, commands A and D are required. Command A sets the direction of traffic monitoring to both receive and transmit directions, while command D activates the Ethernet traffic monitoring session. The other commands are not needed or incorrect for this configuration. Command B uses the wrong syntax for creating the destination interface, command C uses the wrong keyword for setting the direction, and command E uses the wrong syntax for creating the Ethernet traffic monitoring session.Reference:
Cisco UCS Manager GUI Configuration Guide, Release 4.0 - Configuring Ethernet Traffic Monitoring [Cisco UCS Manager], Configuring Ethernet Traffic Monitoring, Configuring Ethernet Traffic Monitoring
Cisco UCS Manager CLI Configuration Guide, Release 4.0 - Configuring Ethernet Traffic Monitoring [Cisco UCS Manager], Configuring Ethernet Traffic Monitoring, Configuring Ethernet Traffic Monitoring
Question 24
An engineer must build a lab replica of a Cisco UCS production environment. The file must be imported into a new Cisco UCS cluster using a Cisco UCS manager GUI. The file must be in XML format and be exported from Cisco UCS Manager using encrypted method. Which two configuration parameters should be selected to meet these requirements?. (Choose two.)
Type: Logical configuration
Protocol SCP
Type Full state
Protocol TFTP
Type All configuration
To meet the requirements of building a lab replica of a Cisco UCS production environment, the file must be exported in XML format using an encrypted method. Option B, Protocol SCP (Secure Copy Protocol), is used for securely transferring computer files between a local and a remote host or between two remote hosts. Option C, Type Full state, ensures that the complete configuration and state are included in the exported file.Reference:
Cisco UCS Manager GUI Configuration Guide, Release 4.0 - Backing Up and Restoring the System Configuration [Cisco UCS Manager], Backing Up and Restoring the System Configuration, Exporting the System Configuration
Cisco UCS Manager CLI Configuration Guide, Release 4.0 - Backing Up and Restoring the System Configuration [Cisco UCS Manager], Backing Up and Restoring the System Configuration, Exporting the System Configuration
Question 25
A new employee must be granted access to add VLANs into an existing Cisco UCS Manager and configure NTP synchronization with date and time zone settings. Which two privileges must be granted to the employee to complete the task? (Choose two.)
Service Profile Compute (Is-compute)
Ext LAN Config (ext-lan-security)
Service Profile Network Policy (Is-network-policy)
Service Profile Config (Is-config)
Ext LAN Policy (ext-lan-policy)
The new employee needs to add VLANs into an existing Cisco UCS Manager and configure NTP synchronization with date and time zone settings. Option B, Ext LAN Config (ext-lan-security), grants privileges to configure external LAN connectivity settings including VLANs. Option D, Service Profile Config (Is-config), allows for configuring service profiles including NTP synchronization settings.Reference:
Cisco UCS Manager GUI Configuration Guide, Release 4.0 - Configuring User Accounts and Organizations [Cisco UCS Manager], Configuring User Accounts and Organizations, Configuring Roles
Cisco UCS Manager CLI Configuration Guide, Release 4.0 - Configuring User Accounts and Organizations [Cisco UCS Manager], Configuring User Accounts and Organizations, Configuring Roles
Question 26

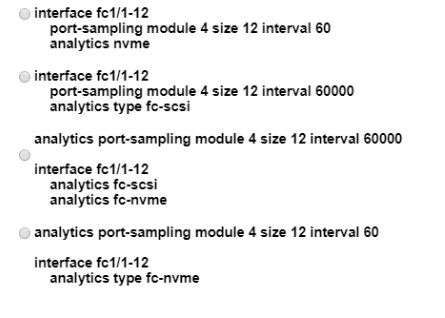

A Cisco MDS 9000 Series Switch is configured for SAN Analytics and SAN Telemetry Streaming. An engineer must enable analytics for NVMe on interfaces in the range of fc1/1-12. Due to a large amount of traffic generated in the SAN environment, the data must be collected at regular intervals of 60 seconds from ports fc 1-12 and then for ports fc13-24 for the next 60 seconds. Ports in the range fc4/13-14 were already enabled for analytics. Which set of commands must be used to meet these requirements?
Option A
Option B
Option C
Option D
The commands under option A enable analytics for NVMe on interfaces in the range of fc1/1-12 with port-sampling module 4 size 12 interval 60 analytics nvme. This meets the requirement of collecting data at regular intervals of 60 seconds from ports fc1/1-12.Reference:
Cisco MDS 9000 Series NX-OS Interfaces Configuration Guide, Release 8.x - Configuring SAN Analytics and Telemetry Streaming [Cisco MDS 9000 NX-OS and SAN-OS Software], Configuring SAN Analytics and Telemetry Streaming, Configuring SAN Analytics
Cisco MDS 9000 Series NX-OS Interfaces Configuration Guide, Release 8.x - Configuring SAN Analytics and Telemetry Streaming [Cisco MDS 9000 NX-OS and SAN-OS Software], Configuring SAN Analytics and Telemetry Streaming, Configuring Port Sampling
Question 27

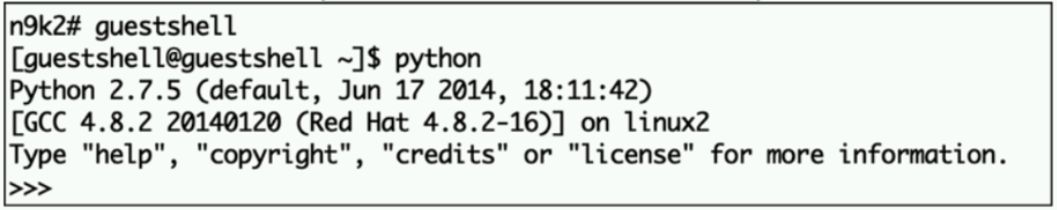

Refer to Exhibit:

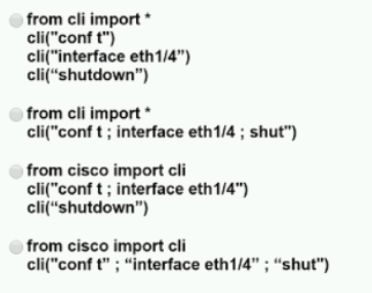

An engineer must use the python module in the guest shell of the Cisco Nexus 9000 Series switch to shutdown port Ethernet 1/4 Which command set will accomplish this?
Option A
Option B
Option C
Option D
Option A is the correct command set to use the python module in the guest shell of the Cisco Nexus 9000 Series switch to shutdown port Ethernet 1/4. The commands import the cli module, which allows executing CLI commands from Python scripts, and then use the cli function to enter the configuration mode, specify the interface, and issue the shutdown command.Reference:
Cisco Nexus 9000 Series NX-OS Programmability Guide, Release 9.3(x) - Python [Cisco Nexus 9000 Series Switches], Python, Using the CLI Module
Cisco Nexus 9000 Series NX-OS Interfaces Configuration Guide, Release 9.3(x) - Configuring Interfaces [Cisco Nexus 9000 Series Switches], Configuring Interfaces, Shutting Down and Restarting an Interface
Question 28
A Cisco UCS C-Series server is installed at a data center. The server should be managed by the Cisco UCS Manager by using a single cable for management and data traffic. Which configuration should be applied after the Physical connection is established?
UCS-A# scope server 1 UCS-A /server# scope cimc UCS-A /server/cimc # scope mgmt-conn sideband UCS-A /server/cimc # mgmt-conn-state enabled UCS-A /server/cimc/mgmt-conn* # commit-buffer
UCS-A# scope chassis 1 UCS-A /chassis# scope cimc UCS-A /chassis/cimc # scope mgmt-conn sideband UCS-A /chassis/cimc/mgmt-conn # mgmt-conn-state enabled UCS-A /chassis/cimc/mgmt-conn* # commit-buffer
UCS-A# scope chassis 1 UCS-A /chassis# scope cimc UCS-A /chassis /cimc # set mgmt-conn-state enabled UCS-A /chassis /cimc/mgmt-conn* # commit-buffer
UCS-A# scope server 1 UCS-A /server# scope cimc UCS-A /server/cimc # scope mgmt-conn sideband UCS-A /server/cimc/mgmt-conn #set mgmt-conn-state enabled UCS-A /server/cimc/mgmt-conn* # commit-buffer
Option D is the correct configuration to enable the Cisco UCS Manager to manage a Cisco UCS C-Series server by using a single cable for management and data traffic. The commands enter the server scope, then the cimc scope, then the mgmt-conn scope with the sideband option, which enables the management connection through the sideband interface. Then, the mgmt-conn-state is set to enabled and the changes are committed to the buffer.Reference:
Cisco UCS Manager CLI Configuration Guide, Release 4.0 - Configuring Cisco UCS C-Series Servers [Cisco UCS Manager], Configuring Cisco UCS C-Series Servers, Configuring the Management Connection
Cisco UCS Manager CLI Configuration Guide, Release 4.0 - Configuring Cisco UCS C-Series Servers [Cisco UCS Manager], Configuring Cisco UCS C-Series Servers, Enabling the Management Connection Through the Sideband Interface
Question 29
A network engineer needs to upgrade the EPLDs of the fabric modules for a Cisco MDS director-class switch. In which order are components reloaded during the process?
one fabric module at the time
all fabric modules followed by the entire switching platform
all fabric modules in parallel
one module and one supervisor at the time
Option A is the correct order of reloading components during the process of upgrading the EPLDs of the fabric modules for a Cisco MDS director-class switch. The EPLD upgrade is performed on one fabric module at a time, and the fabric module is reloaded after the upgrade. The other fabric modules and the switching platform are not reloaded during the process.Reference:
Cisco MDS 9000 Family NX-OS Upgrade and Downgrade Guide, Release 8.x - Upgrading the EPLDs [Cisco MDS 9000 NX-OS and SAN-OS Software], Upgrading the EPLDs, Upgrading the EPLDs on a Cisco MDS 9700 Series Switch
Cisco MDS 9000 Family NX-OS Upgrade and Downgrade Guide, Release 8.x - Upgrading the EPLDs [Cisco MDS 9000 NX-OS and SAN-OS Software], Upgrading the EPLDs, Guidelines and Limitations for Upgrading the EPLDs
Question 30
APIC EPG Resolution Immediacy is set to ''Immediate'' Which statement is true about the Deployment Immediacy for VMM domains associated to EPGs?
The ''Immediate'' and ''On demand'' options require a port group to be created on the VDS.
If ''On demand'' is selected, the policy is programmed in the hardware only when the APIC detects a VM created in the EPG.
If ''On demand'' is selected the policy is programmed in the hardware only when the first packet is received through the data path.
If ''immediate'' is selected the policy is programmed in the hardware as soon as the leaf is booted.
Option D is the correct statement about the Deployment Immediacy for VMM domains associated to EPGs when the APIC EPG Resolution Immediacy is set to ''Immediate''. This means that the policy is pushed to the hardware as soon as the leaf switch is booted, regardless of whether there are any VMs in the EPG or not. This ensures that the policy is ready to be enforced as soon as a VM is created or moved into the EPG.Reference:
Cisco APIC Basic Configuration Guide, Release 4.2(x) - Configuring VMM Domains [Cisco Application Policy Infrastructure Controller (APIC)], Configuring VMM Domains, Configuring the Deployment Immediacy for VMM Domains
Cisco APIC Basic Configuration Guide, Release 4.2(x) - Configuring VMM Domains [Cisco Application Policy Infrastructure Controller (APIC)], Configuring VMM Domains, Configuring the Resolution Immediacy for EPGs
