Refer to the exhibit.

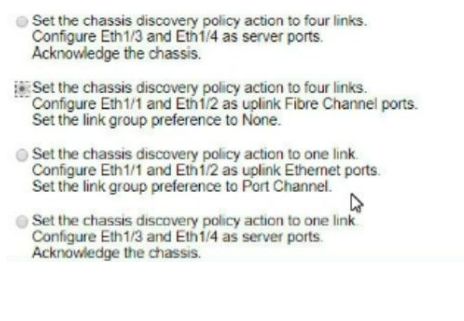

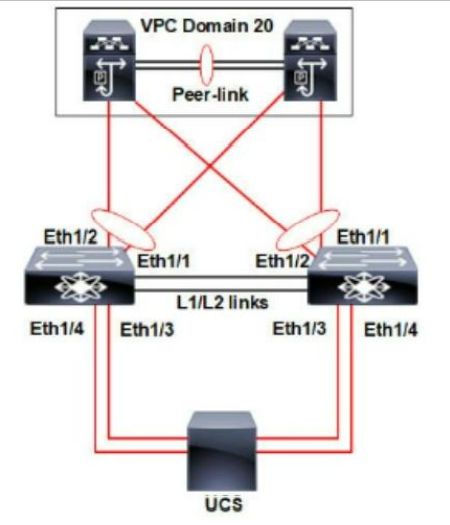

Refer to the exhibit. A pair of Cisco Nexus switches form a vPC. A new chassis s added to the pre-existing Cisco UCS domain. A new chassis must be discovered, and all links from the chassis to the LAN network must be established. Which set of actions accomplishes these requirements?
Option A
Option B
Option C
Option D
Refer to the exhibit. Server1 is connected to a Cisco Nexus 9000 Series Switch via a 1-Gb port channel. The storm control is applied to the Eth0 device with a zero percent value. What does the switch do to traffic that traverses the switch interfaces during the streaming window that exceeds the bandwidth of the interfaces?
forwards all traffic
forwards half of the traffic
suppresses all traffic
drops all of the excess traffic
Which component is excluded by default from the host firmware package?
network interface controller
board controller
storage controller
local disk
An engineer must configure SAN connectivity in Cisco UCS manager. The requirement is to specify the WWPN of the storage array and set the zoning type to single initiator multiple targets. The engineer must also configure interrupt handling and queues of the vHBA interface. Which two Cisco UCS policies should be used to configure the settings? (Choose two.)
storage connection policy
SAN connectivity policy
vHBA policy
Fibre Channel adaptor policy
boot policy

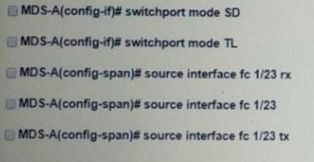

A network engineer must SPAN only the ingress traffic of a Cisco MDS 9000 series switch from interface fc 1/23 to interface fc 1/24. Which two configuration must be applied to complete this task? (Choose two)
Option A
Option B
Option C
Option D

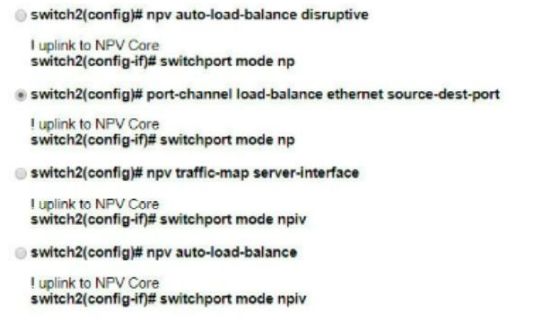

A customer data center experiences bandwidth contention that affects the servers connected to the NPV enabled switch The NPV switch is connected to the NPIV switch using two 10 Gb uplinks but the traffic originating front the connected hosts to the core switch exceeds the available bandwidth The engineers decided to add a third uplink to the NPV server to increase the available bandwidth Which set of commands must be used to provision the new uplink?
Option A
Option B
Option C
Option D
An engineer must generate a checkpoint of the running configuration on a Cisco Nexus Switch. The checkpoint file name must be called 'before_maintenance' and should be used for recovering the switch to its pre- maintenance state. The rollback of the checkpoint to running configuration should only occur if no errors occur. Which two configuration commands must be used to meet these requirements? (Choose two.)
rollback checkpoint rile before_maintenance stop-at-first-failure
rollback running-conflg checkpoint before.maintenance
checkpoint file before_maintenance
checkpoint before.maintenance
rollback running-conflg file before_maintenance atomic

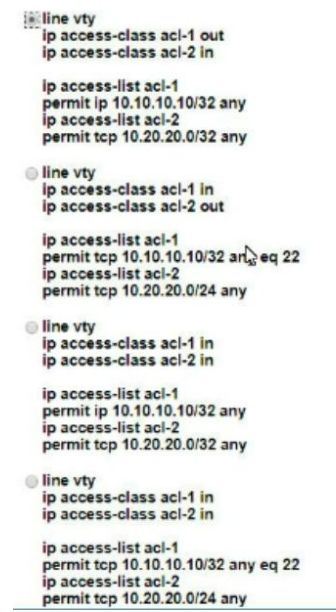

An engineer mus! configure the remote SSH management connectivity for Cisco Nexus 9000 Series Switches to meet these requirements
The connectivity must be permitted from a jump host with an IP address of 10 10.10 10/24
All switches must be permitted to connect via SSH to other devices from the subnet of 10 .20.20.0/24.
Which configuration set accomplishes these requirements?
Option A
Option B
Option C
Option D
Refer to the exhibit.

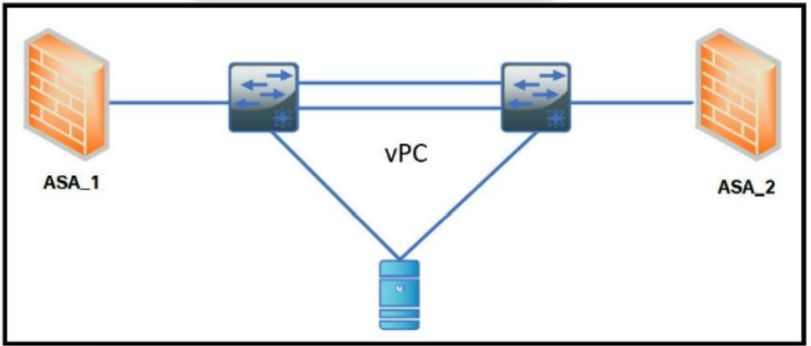

Refer to the exhibit The ASA 1 acts as a Layer 3 gateway for all servers. The servers lose the gateway connectivity when the vPC peer links go down and the vPC keepalive remains up. Which action improves the high availability in the network?
Create a static port channel with two links from each firewall to the switch
Activate the vPC orphan-port suspend feature on the switch ports connected to the firewall
Implement the IP reoVect feature on the vPC devices
Enable the vPC peer gateway feature on the vPC devices
A DevOps engineer must implement a bash script to query a REST API and return the available methods. Which code snippet completes the script?
DELETE
TRACE
POST
OPTIONS
