Cisco 350-601 Practice Test - Questions Answers, Page 35

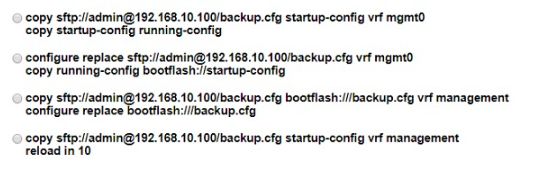

Option C is the correct choice. The commandscopy sftp://[email protected]/backup.cfg bootflash:///backup.cfg vrf managementfollowed byconfigure replace bootflash:///backup.cfgwill copy the backup configuration file from the SFTP server to the switch's bootflash and then replace the running configuration with the backup file without requiring a restart of the switch.This process is known as configuration replace and is a feature that allows for the replacement of the entire running configuration with a new one provided by the user1.

Configuring Link Group Preference to Port Channel allows the use of all four interfaces and provides link failure tolerance. This is because port channels can combine multiple physical links into a single logical link that provides high availability through redundancy.If one link in the port channel fails, traffic is automatically redistributed to the remaining links without any disruption to the network12.

The Cisco UCS Python SDK (D) is a set of Python libraries that provide a method for automating the configuration and management of Cisco Unified Computing System (UCS) hardware. It allows network administrators to write custom scripts or develop applications to manage UCS environments programmatically.In the context of creating a Django self-service portal for VLAN automation, the UCS Python SDK would be used to interact with the UCS Manager's API, enabling the automation of VLAN creation and other tasks1.

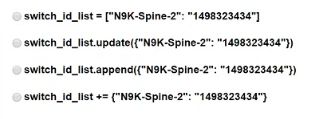

Theupdate()method in Python is used to add an element to a dictionary. It takes either another dictionary object or an iterable of key-value pairs and adds them to the dictionary. If the key is already present in the dictionary,update()will update the key with the new value. Option B correctly uses theupdate()method to add the new 'N9K-Spine-2': '1498323434' key-value pair to theswitch_id_listdictionary.

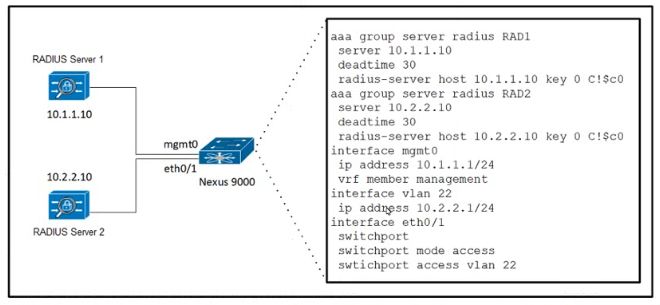

Setting the RADIUS source interface to bemgmt0for groupRAD1andVLAN 22for groupRAD2 ensures that login requests from the console and SSH are sourced from the correct interfaces and reach the appropriate RADIUS server.

Configuring the authentication login to use groupRAD1for console and groupRAD2for remote access (D) directs the switch to use the specified RADIUS server groups for the respective login methods, aligning with the user's requirements.

These configurations ensure that management access via console and SSH is authenticated through the designated RADIUS servers as intended. It's important to apply these settings correctly in the switch's configuration to achieve the desired access control.

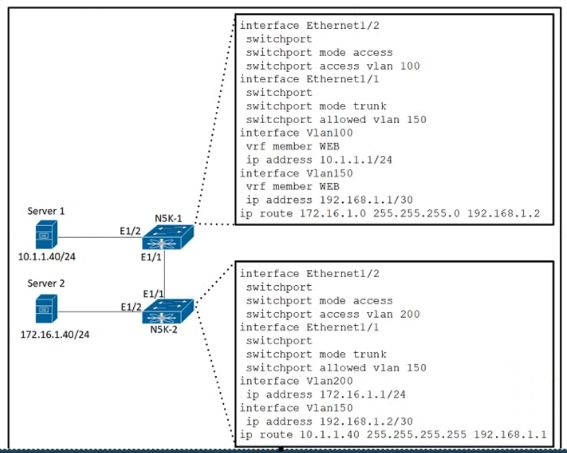

: Creating a static route in VRF WEB for the subnet of Server 2 on N5K-1 (D) will direct traffic from Server 1 to the specific subnet where Server 2 resides. This ensures that traffic can flow from Server 1 to Server 2, even if it is unidirectional. The static route provides a specified path for the traffic to follow, which is necessary when the traffic must be unidirectional and the gateways are on different VLANs.

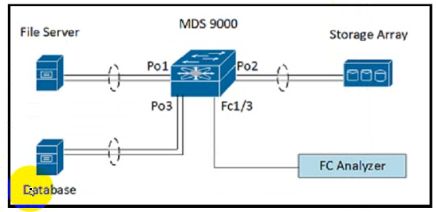

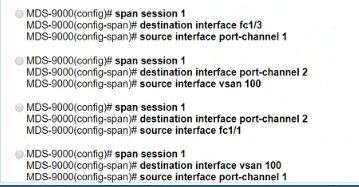

The configuration must ensure that the SPAN session captures traffic from the file server's VSAN to the destination interface connected to the FC analyzer. The commands provided in the exhibit show the setup of a SPAN session with the destination interface as port-channel 2 and the source interface as VSAN 100, which is likely the VSAN associated with the file server.

In a Cisco HyperFlex Edge deployment, the witness VM, known as the ''Invisible Cloud Witness,'' resides within Cisco Intersight.This cloud-based platform eliminates the need for a dedicated witness VM by providing a virtual witness as a service, which simplifies the deployment and ongoing operations of HyperFlex Edge clusters1234.

Cisco HyperFlex Edge Deployment Guide, Release 5.0(x)1.

Cisco HyperFlex Systems Installation Guide for VMware ESXi, Release 5.02.

Cisco Blogs on HyperFlex and Intersight3.

Cisco's official page on HyperFlex for Edge Environments
