CompTIA 220-1101 Practice Test - Questions Answers, Page 58

PCle (Peripheral Component Interconnect Express) is a type of expansion slot that connects network interface cards (NICs) and other devices to the motherboard. PCle slots have different sizes and speeds, such as x1, x4, x8, x16, and x32. PCle slots are faster and more versatile than older types of expansion slots, such as AGP (Accelerated Graphics Port) and IDE (Integrated Drive Electronics).

DisplayPort is a type of external monitor connection that provides the highest possible resolution for a PC. DisplayPort supports up to 8K resolution at 60 Hz, or 4K resolution at 120 Hz, with a maximum bandwidth of 32.4 Gbps. DisplayPort also supports audio, multiple monitors, and adaptive sync. DisplayPort is compatible with other types of connections, such as HDMI and DVI, with adapters.

The CMOS (complementary metal-oxide-semiconductor) is a small chip on the motherboard that stores the BIOS settings, including the date and time. The CMOS battery is a coin cell battery that provides power to the CMOS chip when the computer is turned off, so that the BIOS settings are not lost. If the CMOS battery is discharged, the CMOS chip will lose its data, and the date and time will be reset to the default values. This will cause a message to display indicating that the date and time are incorrect when the computer is turned on. The other computers on the network do not display this message because they have functional CMOS batteries. The most likely cause of this issue is the CMOS battery is discharged, and it needs to be replaced with a new one12.

One possible reason why a remote user is unable to access files at home but can open the files at the office is that the offline file settings are not configured properly. Offline files are a feature of Windows that allows users to access files and folders that are stored on a network drive even when they are not connected to the network. Offline files are cached copies of the network files that are stored on the local computer and synchronized with the network files when the connection is restored.

To use offline files, the user needs to enable the feature on their computer and on the network drive that contains the files they want to access. The user also needs to make sure that the files and folders they want to access are available offline, which means they are marked for offline synchronization. The user can check and change these settings by following these steps:

Open Control Panel and select Network and Internet > Sync Center > Manage offline files.

In the Offline Files window, click Enable offline files if the feature is disabled, and then click OK.

Restart the computer to apply the changes.

Open File Explorer and navigate to the network drive that contains the files and folders the user wants to access.

Right-click the files and folders and select Always available offline. A green sync icon will appear next to the items that are available offline.

To manually sync the offline files with the network files, open Sync Center and click Sync All.

By doing this, the user should be able to access the files and folders on the network drive even when they are at home or away from the office. However, the user should also be aware of some limitations and risks of using offline files, such as:

Offline files may not reflect the latest changes made by other users on the network, and may cause conflicts or errors when syncing.

Offline files may take up a lot of disk space on the local computer, and may affect the performance or stability of the system.

Offline files may be vulnerable to theft, loss, or damage if the local computer is not secured or backed up.

Therefore, the user should always backup their important files and folders, and use encryption or password protection to safeguard their offline files.

Make a network file or folder available offline - Windows Client1

How to use offline files in Windows 10 - The Windows Club2

Offline Files - Enable or Disable the Use Of - Windows 7 Help Forums3

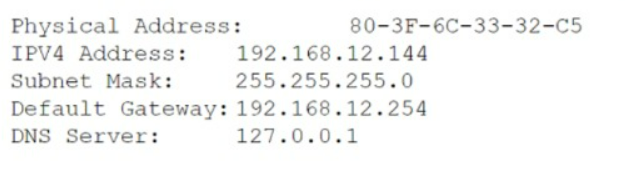

The most likely reason for the error is that the DNS server is not configured correctly. The technician should check the DNS server settings and make sure they are correct.

DNS, or Domain Name System, is a service that translates domain names, such as www.example.com, into IP addresses, such as 192.168.1.1, that computers use to communicate with each other. DNS is essential for joining a Windows client to a domain, which is a logical group of computers that share a common directory and security policy. A domain name, such as example.com, identifies the domain and its members on the network.

To join a Windows client to a domain, the client needs to resolve the hostname of the domain controller, which is the server that manages the domain and its resources. The client sends a DNS query to the DNS server, asking for the IP address of the domain controller. The DNS server responds with the IP address, and the client uses it to establish a connection with the domain controller and complete the domain join process.

However, if the DNS server is not configured correctly, the client may not be able to resolve the hostname of the domain controller, and receive the error: An attempt to resolve the hostname has failed. This can happen if the DNS server is not reachable, not authoritative, or not updated. For example, the DNS server may have an incorrect IP address, a wrong DNS suffix, a missing or outdated DNS record, or a firewall blocking the DNS traffic.

To fix the error, the technician should verify that the DNS server settings on the client and the domain controller are correct and consistent. The technician can use the ipconfig /all command to display the DNS server settings, such as the IPv4 address, the subnet mask, the default gateway, and the DNS suffix. The technician can also use the nslookup command to test the DNS resolution and the ping command to test the connectivity. The technician should make sure that the client and the domain controller are using the same DNS server, and that the DNS server can resolve the hostname of the domain controller.

How to Resolve the 'Temporary failure in name resolution' Error1

Strict hostname resolution configured but no hostname was set2

Error: Hostname Not Resolved to an IP Address - HostGator3

The Host Name Could Not be Resolved in DNS4

Troubleshoot DNS name resolution on the Internet - Windows Server5

A USB (universal serial bus) connection is the most suitable option for a headset that can be physically connected to a laptop for online conference calls. A USB connection is a digital interface that can transfer both power and data between devices using a standard cable. A USB headset can plug into any available USB port on the laptop and communicate with the audio and microphone drivers without requiring additional software or hardware. A USB headset can also offer enhanced features, such as inline controls, noise cancellation, surround sound, or LED lighting, depending on the model and manufacturer.

Other connections, such as Bluetooth, DVI, or Thunderbolt, are not appropriate for a headset that can be physically connected to a laptop. Bluetooth is a wireless technology that uses radio waves to pair devices over a short distance, and it requires a battery or a charger for the headset. DVI (digital visual interface) is a video interface that can transmit digital or analog signals between a display device and a video source, and it is not compatible with audio or microphone devices. Thunderbolt is a high-speed interface that can support multiple protocols, such as DisplayPort, USB, or PCI Express, and it requires a special cable and port that may not be available on all laptops.

How to set up and use a headset on Windows 10 | Windows Central1

How to Connect a Headset to a Computer2

USB - Wikipedia

S M.A.R.T. (Self-Monitoring, Analysis, and Reporting Technology) is a feature of hard drives that monitors various parameters, such as temperature, error rate, spin-up time, and seek time, to assess the health and performance of the drive. S.M.A.R.T. can also predict the likelihood of failure based on the historical trends of these parameters. A technician can check the S.M.A.R.T. information of a hard drive using various tools, such as the BIOS, the operating system, or third-party software. Checking the S.M.A.R.T. information can help the technician diagnose the cause and severity of the drive corruption and determine the best course of action. CHKDSK (Check Disk) is a command-line utility that scans the file system and the disk surface for errors and attempts to fix them. CHKDSK can also recover readable data from bad sectors and mark them as unusable. A technician can run CHKDSK on a corrupt drive using various options, such as /f (fix errors), /r (recover data), or /x (dismount the drive). Running CHKDSK can help the technician repair the drive corruption and retrieve the missing files.

How to Check Your Hard Drive's Health | PCMag1

How to Check a Disk from Windows - dummies2

How to Use CHKDSK in Windows 10 - Lifewire3

The administrator should use RAID 0 for a video-rendering workstation at minimal cost. RAID 0, also known as striping, is a RAID configuration that splits data evenly across two or more disks, without parity information, redundancy, or fault tolerance. RAID 0 has the following advantages and disadvantages:

High read/write performance: RAID 0 can increase the data transfer rate by using multiple disks in parallel. This can improve the speed and efficiency of video rendering, which involves processing large amounts of data. RAID 0 can also reduce the latency and seek time of the disks, as the data is distributed across multiple spindles.

Maximum drive storage utilization: RAID 0 can use the full capacity of the disks, without wasting any space for parity or mirroring. This can lower the cost and increase the storage space for the workstation. For example, if two 500 GB disks are used in RAID 0, the total capacity of the array will be 1000 GB.

No redundancy or fault tolerance: RAID 0 does not provide any protection against data loss or disk failure. If one disk fails, the entire array will fail and the data will be unrecoverable. Therefore, RAID 0 should only be used for non-critical data that is backed up elsewhere, or for temporary files that can be recreated.

Standard RAID levels - Wikipedia1

RAID Levels and Types Explained: Differences and Benefits of Each2

RAID Level Comparison Table | RAID Data Recovery Services3
