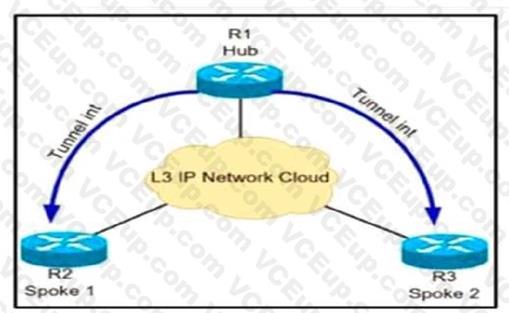

Refer to Exhibit.
A network administrator has successfully configured DMVPN topology between a hub and two spoke routers. Which two configuration commands should establish direct communications between spoke 1 and spoke 2 without going through the hub? (Choose two).
At the hub router, configure the ip nhrp shortcut command.
At the spoke routers, configure the ip nhrp spoke-tunnel command.
At the hub router, configure ip nhrp redirect the command
At the spoke routers, configure the ip nhrp shortcut command.
At the hub router, configure tne Ip nhrp spoke-tunnel command

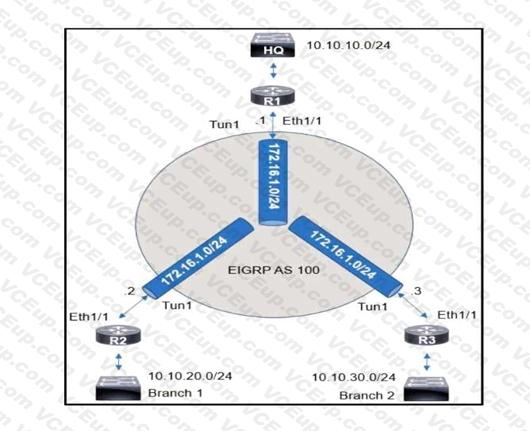

An engineer sets up a DMVPN connection to connect branch 1 and branch 2 to HQ branch 1 and branch 2 cannot communicate with each other. Which change must be made to resolve this issue?
Option A
Option B
Option C
Option D

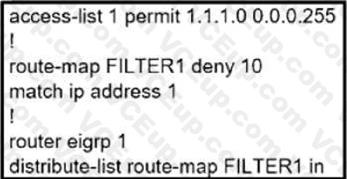

Refer to the exhibit. Which action restores the routes from neighbors while still filtering 1.1.1.0/24?
Add a second line in the access list to permit any.
Modify the route map to permit the access list instead of deny it
Modify the access list to deny instead of permit it.
Add a second sequence in the route map permit 20
Which two components are needed for a service provider to utilize the LVPN MPLS application?
(Choose two.)
The P routers must be configured for MP-iBGP toward the PE routers
The P routers must be configured with RSVP.
The PE routers must be configured for MP-iBGP with other PE routers
The PE routers must be configured for MP-eBGP to connect to CEs
The P and PE routers must be configured with LDP or RSVP
What are two characteristics of VRF instance? (Choose two.)
All VRFs share customers routing and CEF tables .
An interface must be associated to one VRF.
Each VRF has a different set of routing and CEF tables
It is defined by the VPN membership of a customer site attached to a P device.
A customer site can be associated to different VRFs

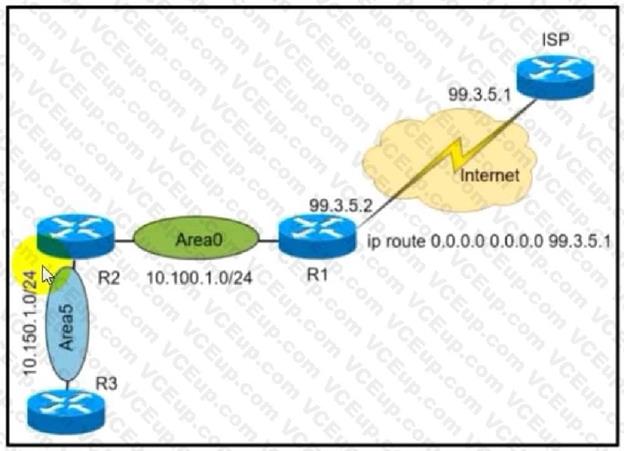

Refer to the exhibit. A network administrator redistributed the default static route into OSPF toward all internal routers to reach to Internet. Which set of commands restores reachability to the Internet by internal routers?
router ospf 1 default-information originate
router ospf 1 network 0.0.0.0 0.0.0.0 area 0
router ospf 1 redistribute connected 0.0.0.0
router ospf 1 redistribute static subnets

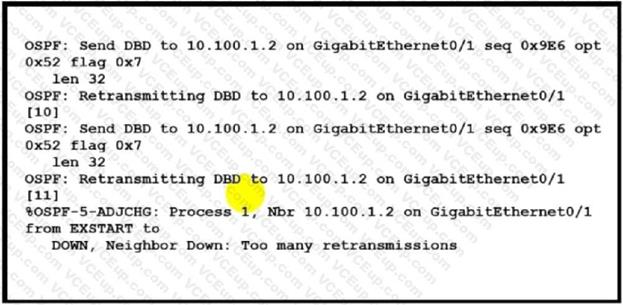

Refer to the exhibit. The OSPF neighbor relationship is not coming up What must be configured to restore OSPF neighbor adjacency?
OSPF on the remote router
matching hello timers
use router ID
matching MTU values
An engineer configured a DHCP server for Cisco IP phones to download its configuration from a TFTP server, but the IP phones failed to toad the configuration What must be configured to resolve the issue?
BOOTP port 67
DHCP option 66
BOOTP port 68
DHCP option 69

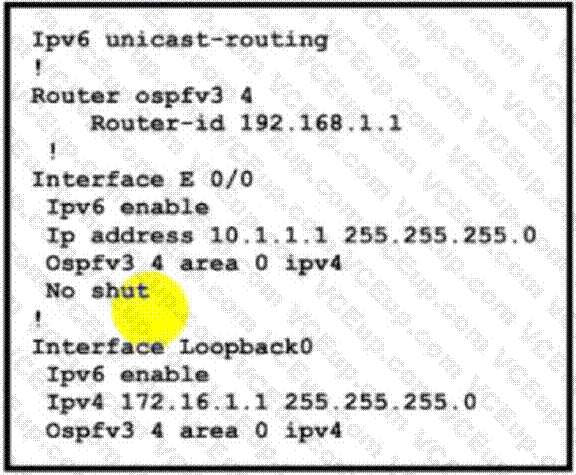

Refer to the exhibit. The network administrator configured the branch router for IPv6 on the E 0/0 interface The neighboring router is fully configured to meet requirements, but the neighbor relationship is not coming up. Which action fixes the problem on the branch router to bring the IPv6 neighbors up?
Enable the IPv4 address family under the E 0/0 interface by using the address-family Ipv4 unicast command
Disable IPv6 on the E 0/0 interface using the no ipv6 enable command
Enable the IPv4 address family under the router ospfv3 4 process by using the address-family ipv4 unicast command
Disable OSPF for IPv4 using the no ospfv3 4 area 0 ipv4 command under the E 0/0 interface.
An engineer configured two routers connected to two different service providers using BGP with default attributes. One of the links is presenting high delay, which causes slowness in the network.
Which BGP attribute must the engineer configure to avoid using the high-delay ISP link if the second ISP link is up?
LOCAL_PREF
MED
WEIGHT
AS-PATH
