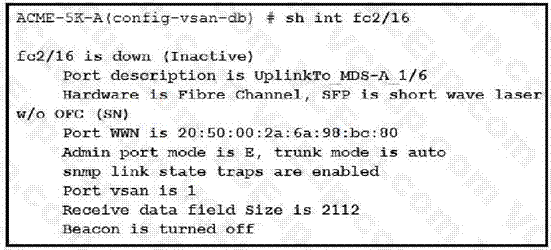

Refer to the exhibit.
The connection between a Cisco Nexus 5548UP switch and a Cisco MDS switch fails to initialize. What is the cause of the issue?
VSAN 1 is suspended.
The SFP is unsupported.
Trunk mode must be activated.
The interface is in an incorrect mode.
A server fails to boot from the operating system after a RAID1 cluster migration. The RAID remains in an inactive state during and after a service profile association. Which action resolves the issue?
Configure the SAN boot target in the service profile.
Configure the SAN boot target to any configuration mode.
Use a predefined local disk configuration policy.
Remove the local disk configuration policy.

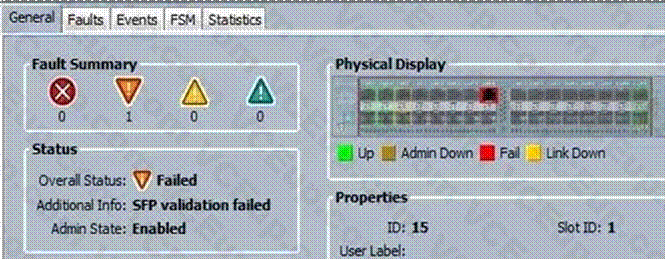

Refer to the exhibit.
When an engineer inserts 8-Gb FC SFP port 15 on a Cisco UCS Fabric Interconnect, the port fails.
What is a possible cause of the issue?
Port 15 is configured as an Ethernet port.
Port 15 is configured for 4-Gb FC.
Port 15 is missing a license.
The polarity of the fiber cable is reversed.
An engineer discovers that an NPV/NPIV uplink experiences a heavy load and plans to add more uplinks. Which statement about what occurs when the new uplinks are added is true?
Only new connections use the new uplinks automatically.
Paths must be defined before new connections can use the new uplinks.
All connections must be reset before the new uplinks can be used.
New and existing connections use the new uplinks automatically.
An engineer is troubleshooting a failed DCBX exchange between a server and a Cisco Nexus switch.
Which action allows DCBX to successfully negotiate?
Enable ETS
Enable PFC.
Enable Cisco Discovery Protocol.
Enable LLDP.

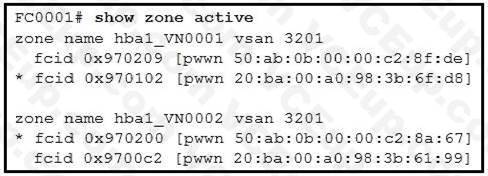

Refer to the exhibit.
The initiator that has FC ID 0x970102 fails to communicate with the target that has FC ID 0x970200.
What action resolves the issue?
Reconfigure the initiator and the target to be in the same zones.
Reactivate the zoneset.
Reset the port for FC ID 0x970102 and FC ID 0x970200 to log in to the fabric.
Reset the port for FC ID 0x970209 and FC ID 0x9700c2 to log in to the fabric.
One of Cisco Nexus Series interfaces has become errdisabled with the error message “DCX-No ACK in 100 PDUs”. What is the cause of this error?
The host has not responded to the Control Sub-TLV DCBX exchanges of the switch.
The acknowledgement number in the server response has not incremented for 100 exchanges.
Cisco Discovery Protocol is disabled on the switch.
LLDP is disabled on the switch.
A Fibre Channel interface on a Cisco Nexus 5000 Series Switch receives bit errors, and the switch disables the interface. A temporary workaround must be implemented before the root cause is identified. Which action does an engineer take to prevent this issue from reoccurring?
Verify that the SFPs are supported.
Change the SFP to operate at 4 Gbps instead of 2 Gbps.
Run the shutdown and then no shutdown command on the interface.
Run the switchport ignore bit-errors command on the interface.
A fabric interconnect fails to start and the console displays the loader prompt. Which two actions resolve the issue? (Choose two.)
Load an uncorrupt bootloader image.
Load an uncorrupt kickstart image.
Reconnect L1/L2 cables between the Fis.
Reformat the fabric interconnect.
Load the correct version of the boot image.
Refer to the exhibit.
The EEM script fails to send an SNMP trap when a user attempts to enter configuration mode. Which configuration is missing from the script?
event statement
event-default action statement
policy-default action statement
IP address of the SNMP server
