What Is a Type 2 hypervisor?
installed as an application on an already installed operating system
runs directly on a physical server and includes its own operating system
supports over-allocation of physical resources
also referred to as a "bare metal hypervisor" because it sits directly on the physical server
Refer to the exhibit.
An engineer reconfigures the pot-channel between SW1 and SW2 from an access port to a trunk and immediately notices this error in SW1's log.
Which command set resolves this error?

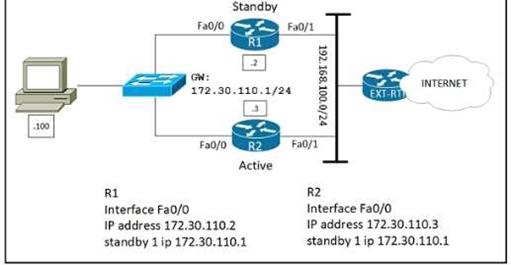

Refer to the exhibit.
Which configuration change ensures that R1 is the active gateway whenever it is in a functional state for the 172.30.110.0724 network?

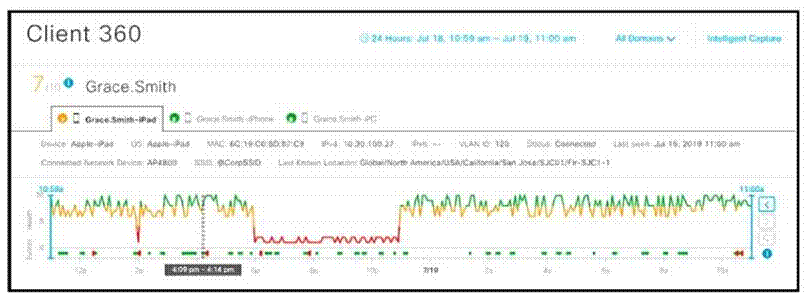

Refer to the exhibit.
Cisco DNA Center has obtained the username of the client and the multiple devices that the client is using on the network. How is Cisco DNA Center getting these context details?
The administrator had to assign the username to the IP address manually in the user database tool on Cisco DNA Center.
Those details are provided to Cisco DNA Center by the Identity Services Engine
Cisco DNA Center pulled those details directly from the edge node where the user connected.
User entered those details in the Assurance app available on iOS and Android devices

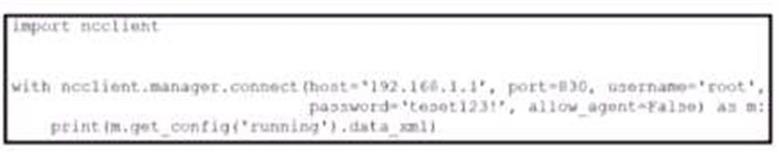

Refer to the exhibit.
After running the code in the exhibit. Which step reduces the amount of data that NETCONF server returns to the NETCONF client, to only the interface's configuration?
Create an XML filter as a string and pass it to get_config() method as an argument
Use the txml library to parse the data returned by the NETCONF server for the interface's configuration
Create a JSON filter as a string and pass it to the get_config() method as an argument
Use the JSON library to parse the data returned by the NETCONF server for the interface's configuration
What is the role of the RP in PIM sparse mode?
The RP responds to the PIM join messages with the source of requested multicast group
The RP maintains default aging timeouts for all multicast streams requested by the receivers.
The RP acts as a control-plane node and does not receive or forward multicast packets.
The RP is the multicast that is the root of the PIM-SM shared multicast distribution tree.
Which two actions, when applied in the LAN network segment, will facilitate Layer 3 CAPWAP discovery for lightweight AP? (Choose two.)
Utilize DHCP option 17.
Configure WLC IP address on LAN switch.
Utilize DHCP option 43.
Configure an ip helper-address on the router interface
Enable port security on the switch port

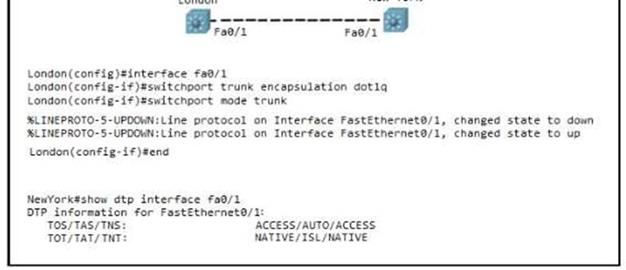

Refer to the exhibit
Communication between London and New York is down Which to resolve this issue?

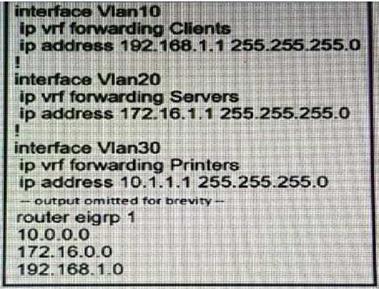

Refer to the exhibit. An engineer attempts to configure a router on a stick to route packets between Clients, Servers, and Printers; however, initial tests show that this configuration is not working.
Which command set resolves this issue?
Why is an AP joining a different WLC than the one specified through option 43?
The WLC is running a different software version.
The API is joining a primed WLC
The AP multicast traffic unable to reach the WLC through Layer 3.
The APs broadcast traffic is unable to reach the WLC through Layer 2.
