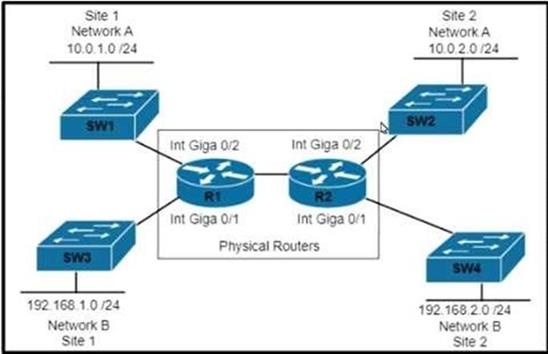

Refer to the exhibit.

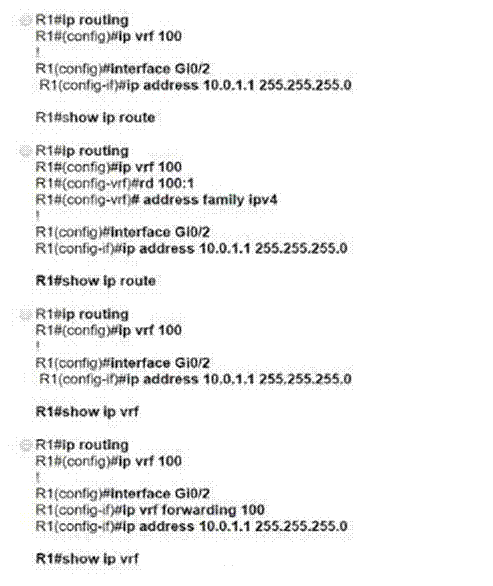

Refer to the exhibit. Which set of commands is required to configure and verify the VRF for Site 1 Network A on router R1?
Option A
Option B
Option C
Option D
By default, which virtual MAC address does HSRP group 22 use?
c0:42:01:67:05:16
c0:07:0c:ac:00:22
00:00:0c:07:ac:16
00:00:0c:07:ac:22

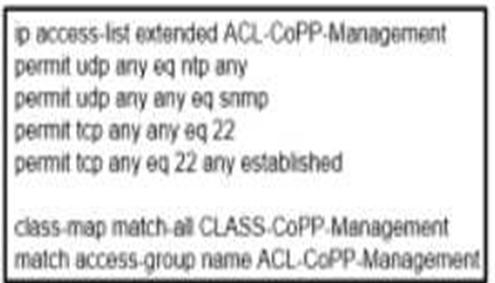

Refer to the exhibit.

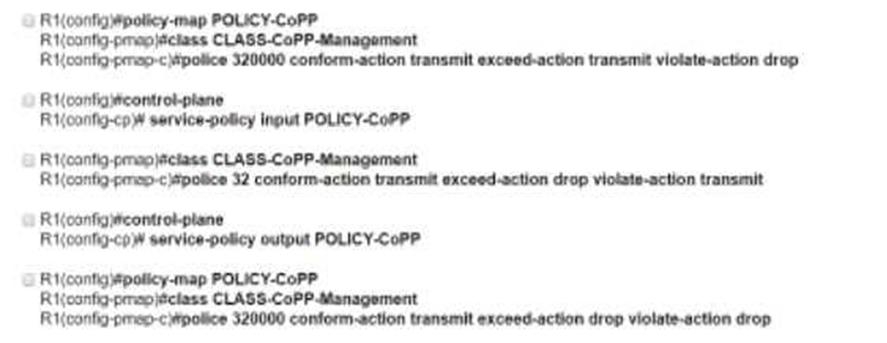

An engineer must protect the CPU of the router from high rates of NTP, SNMP, and SSH traffic. Which two configurations must be applied to drop these types of traffic when it continuously exceeds 320 kbps? (Choose two)
Option A
Option B
Option C
Option D
Option E

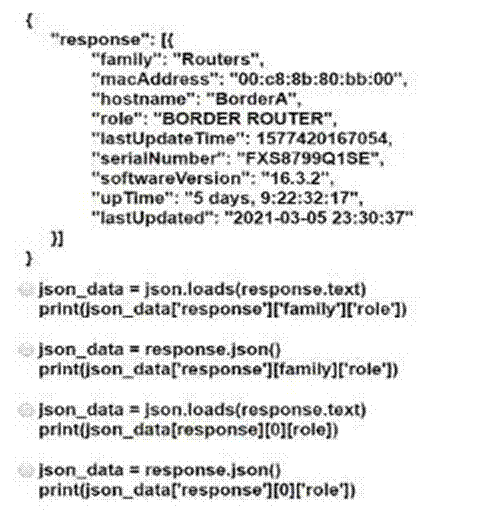

Based on the router's API output In JSON format below, which Python code will display the value of the 'role' key?
Option A
Option B
Option C
Option D
Refer to the exhibit.

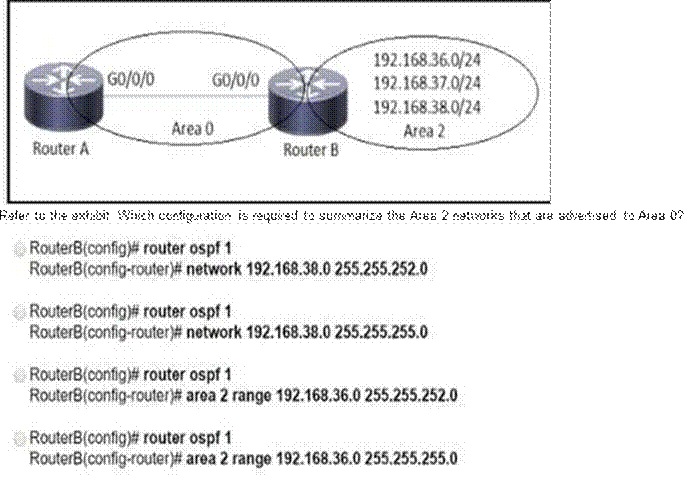

Refer to the exhibit. Which configuration is required to summarize the Area 2 networks that are advertised to Area 0?
Option A
Option B
Option C
Option D
A customer has a wireless network deployed within a multi-tenant building. The network provides client access, location-based services, and is monitored using Cisco DNA Center. The security department wants to locate and track malicious devices based on threat signatures. Which feature is required for this solution?
Cisco aWIPS policies on the WLC
Cisco aWIPS policies on Cisco DNA Center
malicious rogue rules on the WLC
malicious rogue rules on Cisco DNA Center

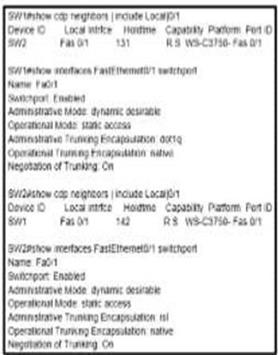

Refer to the exhibit.
An engineer configures a trunk between SW1 and SW2 but tagged packets are not passing. Which action fixes the issue?
Configure SW1 with dynamic auto mode on interface FastEthernet0/1.
Configure the native VLAN to be the same VLAN on both switches on interface FastEthernet0/1.
Configure SW2 with encapsulation dot1q on interface FastEthernet0/1.
Configure FastEthernet0/1 on both switches for static trunking.
In a Cisco SD-Access wireless environment, which device is responsible for hosting the anycast gateway?
fusion router
control plane node
fabric border node
fabric edge node
How does Protocol Independent Multicast function?
In sparse mode, it establishes neighbor adjacencies and sends hello messages at 5-second intervals.
It uses the multicast routing table to perform the multicast forwarding function.
It uses unicast routing information to perform the multicast forwarding function.
It uses broadcast routing information to perform the multicast forwarding function.
Where in Cisco DNA Center is documentation of each API call, organized by its functional area?
Developer Toolkit
platform management
platform bundles
Runtime Dashboard
