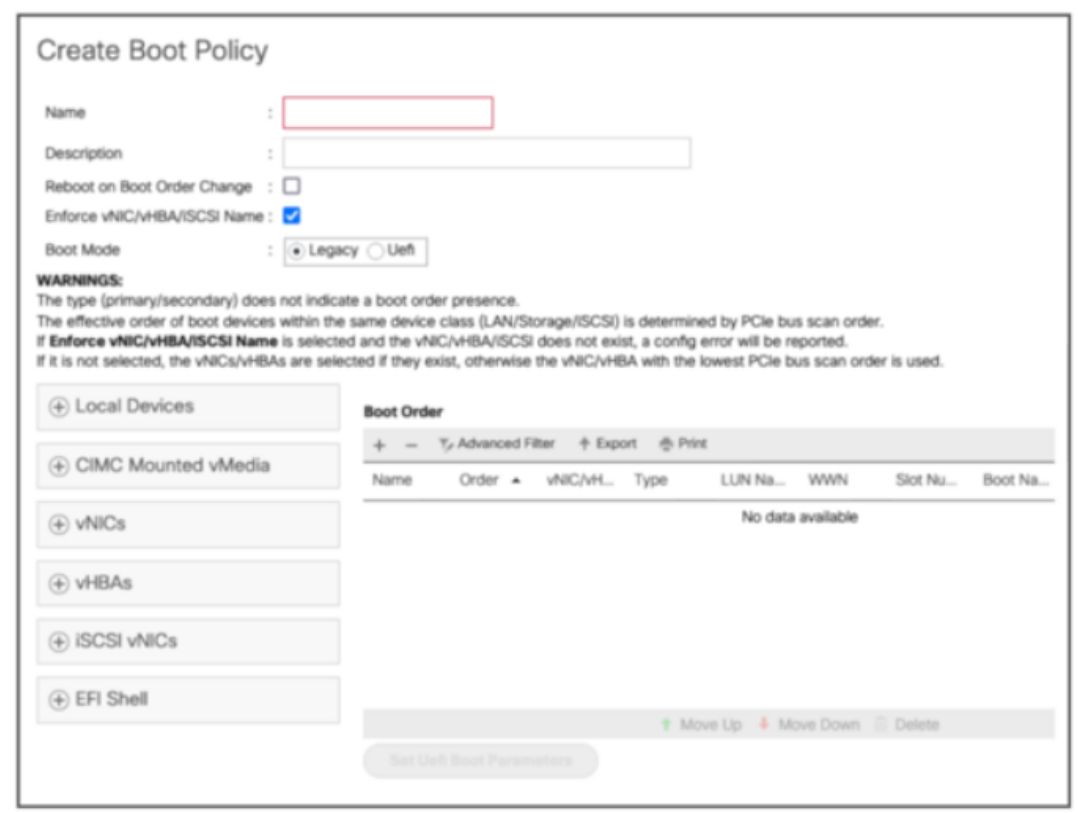

Refer to the exhibit.
An engineer installs a new Cisco UCS B-Series server. The requirement is to install an operating system on a LUN that is provided by the Fibre Channel storage array. Which two steps must be configured in the boot policy to accomplish this goal? (Choose two.)
Disable Enforce vNIC^HBA/ISCSI Name
Add Local CD/DVD and SAN Boot.
Configure a SAN Boot Target with a WWPN
Set Boot Order to External USB and LAN Boot
Create (SCSI VNlCs and add Local LUN
An engineer must perform a POAP deployment of a Cisco Nexus 9000 Series Switch The switch must automatically receive its software image and configuration file upon power-on. Also, only UDP is permitted between the Nexus 9000 switch and the server that hosts the Cisco NX-OS system images Which set of actions completes the configuration'
Enable option 67. Define TFTP transfer protocol
Enable option 43 Define HTTP transfer protocol.
Enable option 46. Define TFTP transfer protocol
Enable option 35. Define HTTP transfer protocol.
An engineer must integrate Cisco ACI with a VMware vSphere environment. The requirement is to use a VMware Distributed Virtual Switch and to assign the encapsulation VLAN of the EPG from the VLAN pool. Which configuration set accomplishes this goa?
Create a VMM domain association under the EPGs Create a VLAN pool with static alocated VLANs.
Create a physical domain association under the EPGs Create a VLAN pool with static alocated VLANs.
Create a physical domain association under the EPGs. Create a VLAN pool with oVnarmc alocated VLANs
Create a VMM domain association under the EPGs Create a VLAN pool with dynamic alocated VLANs.
An engineer must allow communication between the APIC controller and an OpenStack OpFlex agent. The agent is running on a compute node directly plugged to a Cisco ACI leaf switch. The engineer must enable and extend Infra VLAN on the port facing the compute and extend the Infra VLAN to the host. Which action must be taken to meet these requirements?
Enable the Infra VLAN on the Interface Profile policy
Enable the Infra VLAN on the Attachable Access Entity Profile.
Add the infra VLAN via the physical domain.
Add the infra VLAN via the VMM domain.

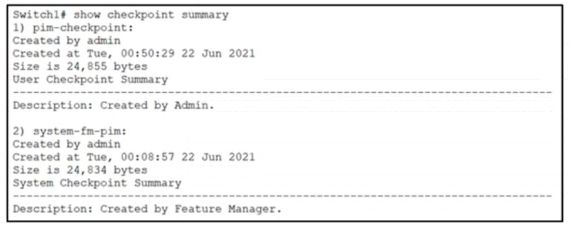

Refer to the exhibit.
Which command must be used to restore configuration changes made by disabling the PIM feature and skipping any errors?
Refer to the exhibit. Which command must be used to restore configuration changes made by disabling the PIM feature and skipping any errors?
rollback running-config checkpoint new-checkpoint stop-at-first-failure
rollback running-config checkpoint new-checkpoint verbose
rollback running-config checkpoint system-fm-pim-best-effort
rollback running-config checkpoint system-fm-pim atomic

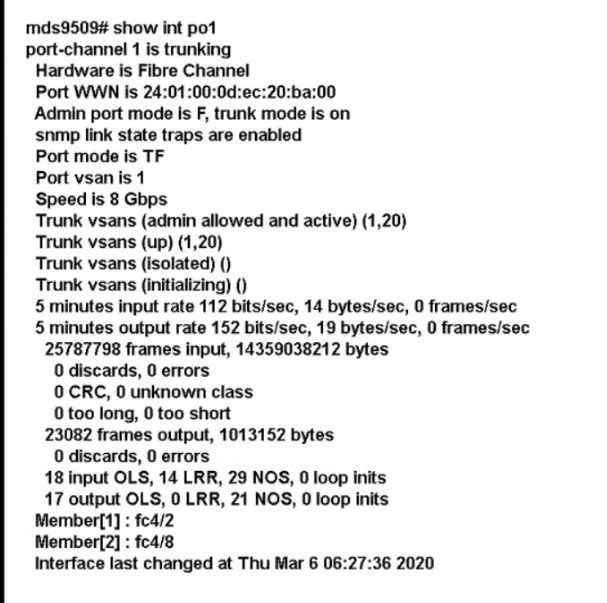

An engineer troubleshoots an Fibre Channel deployment on a Cisco MDS 9000 Series Switch. What does this output indicate about port channel 1?
Port channel 1 is configured to be an ISL.
Port channel 1 is configured to connect to a host bus adapter.
Port channel 1 is configured to connect to an NPIV switch.
Port channel 1 is configured to connect to an NPV switch.
Which component is upgraded by using an EPLD upgrade on a Cisco Nexus 9000 Series Switch?
dual-homed fabric extenders
BIOS
field-programmable gate arrays
ISSU of the NX-OS version
DRAG DROP
An engineer must configure Cisco UCS Manager to accept only HTTPS connections that use TLS 1 2The cipher security level must be high and the length of the keyring key value must be 2048 bits Drag and drop the code snippets from the right onto the blanks in the code on the left to accomplish these goals Not all commands are used
DRAG DROP

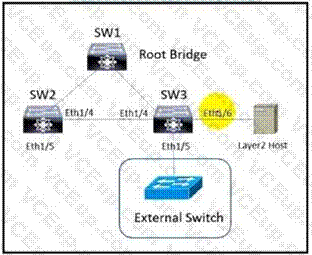

Refer to the exhibit. The Cisco Nexus Series Switches SW1, SW2, and SW3 are connected via Layer 2 copper interfaces. An engineer implements loop prevention standard IEEE 802.1w on each VLAN lo provide lasier recovery from network changes or failures. The Implementation has these requirements Interfaces that are connected to Layer 2 hosts must not receive STP BPDUs.
The implementation must detect unidirectional links due to one-way traffic twisted-pair links Bridge assurance must be enabled between SW2 and SW3 The Layer 2 domain must be protected from superior BPDUs that arrive from external switches.
Drag and drop the code snippets from the right onto the blanks in the code on the left to complete the configuration for SW3. Not all code snippets are used.
An engineer deploys a new Cisco Nexus 5000 Series Switch in an existing environment with strict security policies. The new device should meet these requirements:
Secure end-user ports with minimum configuration effort.
Log security breaches and require manual recovery.
Retain the switch configuration if the device restarts.
Which configuration must be used?
