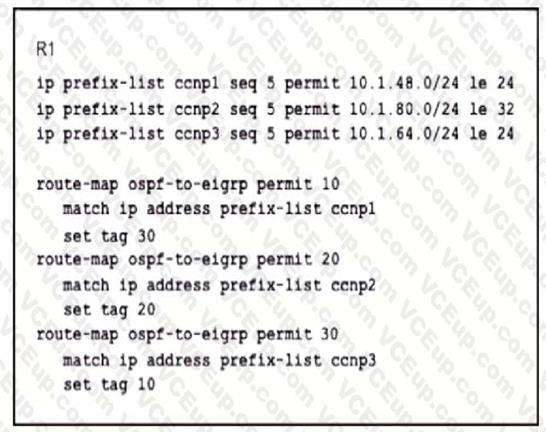

Refer to the exhibit.
An engineer wanted to set a tag of 30 to route 10 1.80.65/32 but it failed How is the issue fixed?
Modify route-map ospf-to-eigrp permit 30 and match prefix-list ccnp2.
Modify route-map ospf-to-eigrp permit 10 and match prefix-list ccnp2.
Modify prefix-list ccnp3 to add 10.1.64.0/20 le 24
Modify prefix-list ccnp3 to add 10.1.64.0/20 ge 32

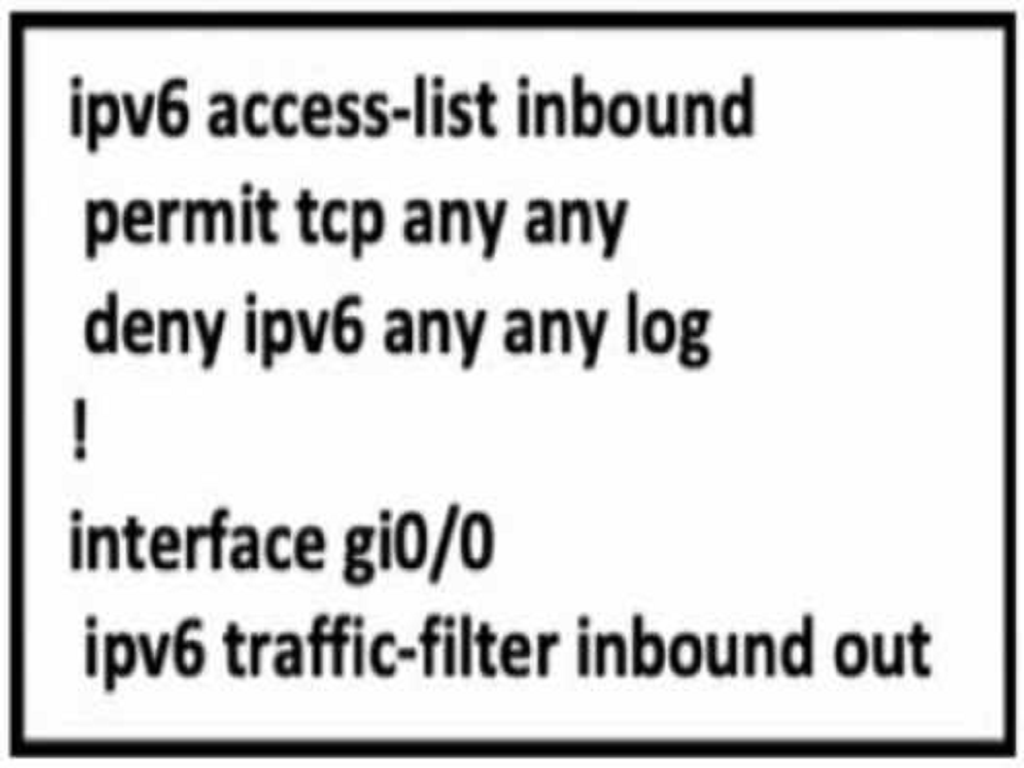

Refer to the exhibit.
A network administrator configured an IPv6 access list to allow TCP return frame only, but it is not working as expected. Which changes resolve this issue?

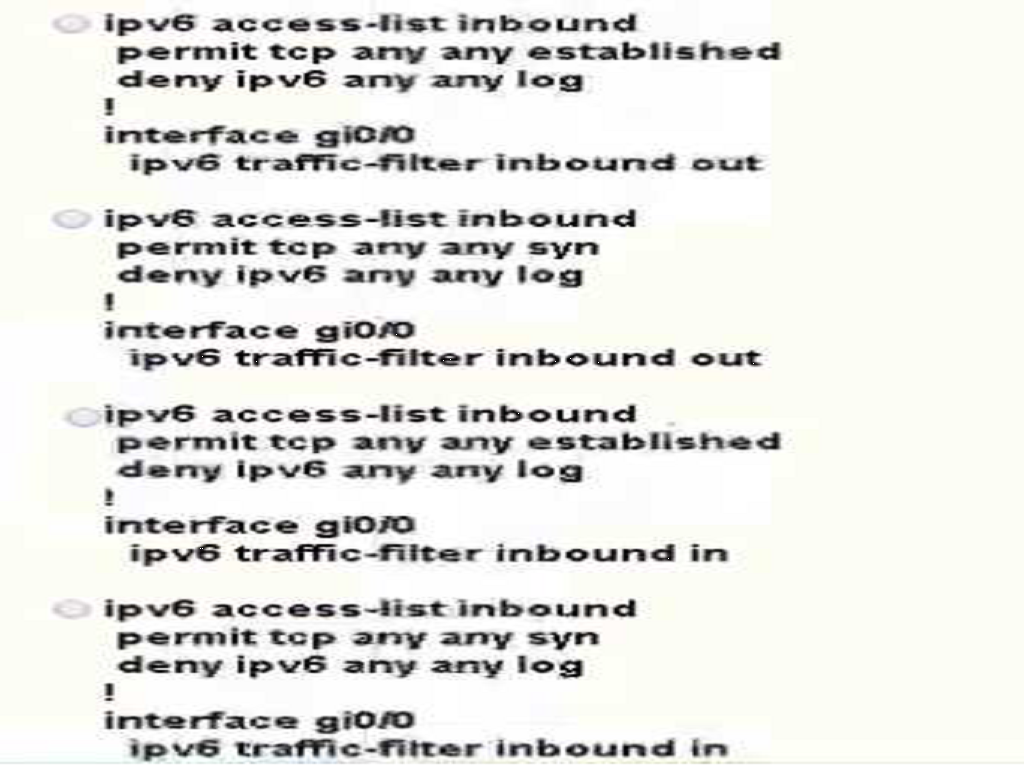

Option A
Option B
Option C
Option D
What does the PE router convert the Ipv4 prefix to within an MPLS VPN?
VPN-IPv4 prefix combined with the 64-bit route distinguisher
48-bit route combining the IP and PE router-id
prefix that combines the ASN, PE router-id, and IP prefix
eBGP path association between the PE and CE sessions
How are MPLS Layer 3 VPN services deployed?
The RD and RT values must match under the VRR
The RD and RT values under a VRF must match on the remote PE router
The import and export RT values under a VRF must always be the same.
The label switch path must be available between the local and remote PE routers.

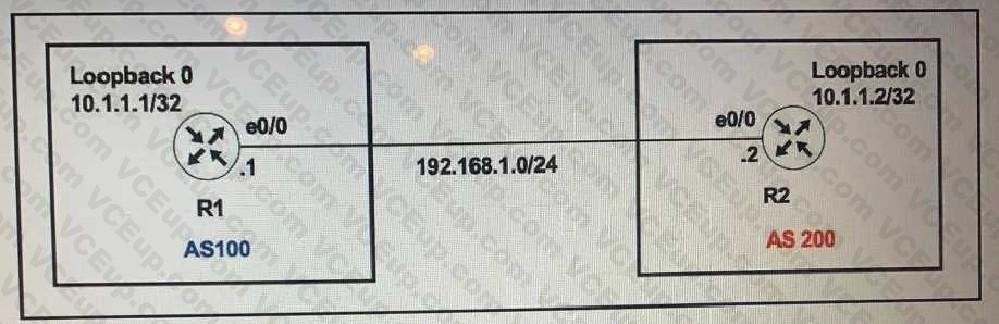

Refer to the exhibit.

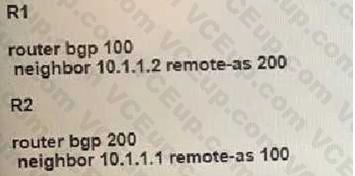

The R1 and R2 configurations are:
The neighbor is not coming up. Which two sets of configurations bring the neighbors up? (Choose two.)
R2 ip route 10.1.1.1 255.255.255.255 192.168.1.1 ! router bgp 200 neighbor 10.1.1.1 tti-security hops 1 neighbor 10.1.1.1 update-source loopback 0
R2 ip route 10.1.1.1 255.255.255.255 192.168.1.1 ! router bgp 200 neighbor 10.1.1.1 disable-connected-check neighbor 10.1.1.1 update-source loopback 0
R2 ip route 10.1.1.2 255.255.255.255 192.168.1.2 ! router bgp 100neighbor 10.1.1.2 ttl-security hops 1 neighbor 10.1.1.2 update-source loopback 0
R1 ip route 10.1.1.2 255.255.255.255 192.168.1.2 ! router bgp 100 neighbor 10.1.1.1 ttl-security hops 1 neighbor 10.1.1.2 update-source loopback 0
R1 ip route 10.1.1.2 255.255.255.255 192.168.1.2 ! router bgp 100 neighbor 10.1.1.2 disable-connected-check neighbor 10.1.1.2 update-source Loopback0

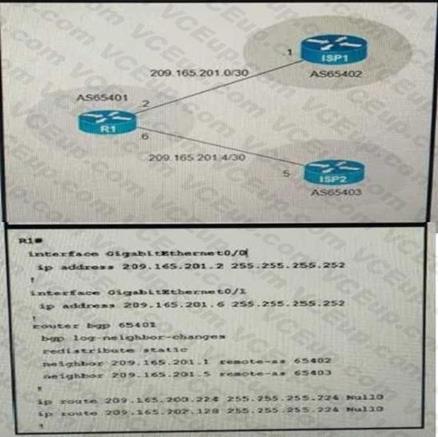

Refer to the exhibit.

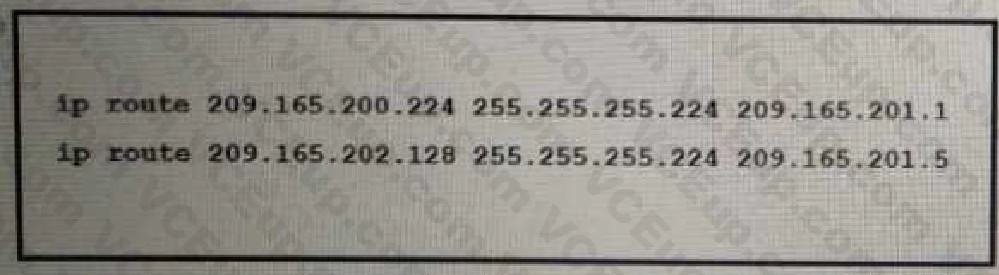

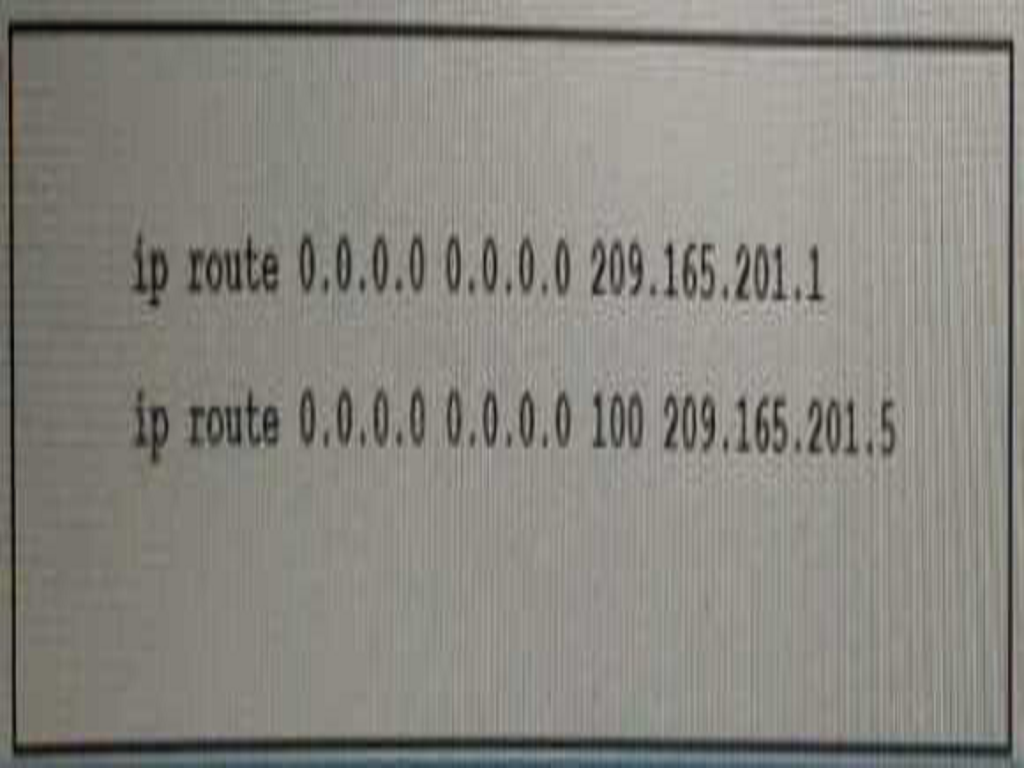

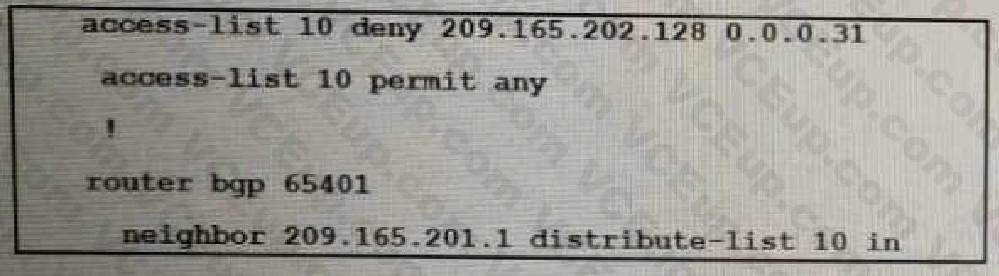

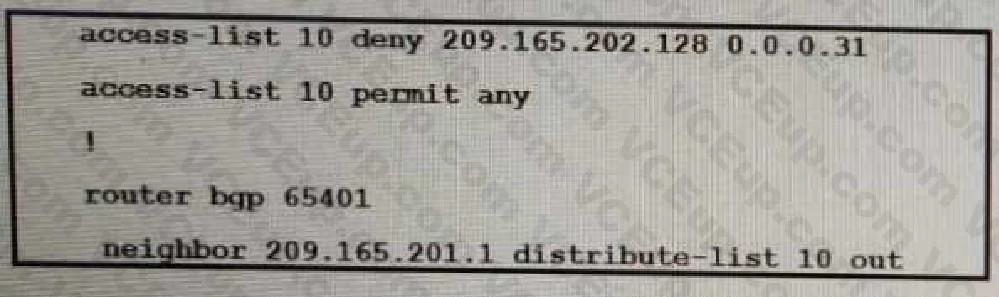

A company with autonomous system number AS65401 has obtained IP address block 209.165.200.224/27 fro, ARIN. The company needed more IP addresses and was assigned block 209.165.202.128/27 from ISP2. An engineer is ISP1 reports they are receiving ISP2 routes from AS65401. Which configuration onR1 resolves the issue?
Refer to the exhibit.
An engineer identifier a Layer 2 loop using DNAC. Which command fixes the problem in the SFD9300- 1 switch?
no spanning-tree uplinkfast
spanning-tree loopguard default
spanning-tree backbonesfast
spanning-tree portfast bpduguard
What are two functions of LDP? (Choose two.)
It is defined in RFC 3038 and 3039.
It requires MPLS Traffic Engineering.
It advertises labels per Forwarding Equivalence Class.
It must use Resource Reservation Protocol.
It uses Forwarding Equivalence Class

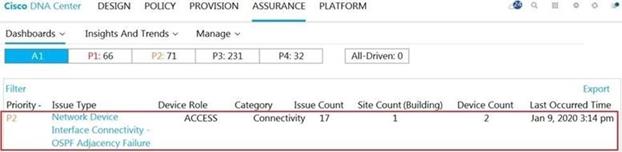

Refer to the exhibit.
A network administrator is using the DNA Assurance Dashboard panel to troubleshoot an OSPF adjacency that failed between Edge_NYC interface GigabitEthernet1/3 with Neighbor Edge_SNJ. The administrator observes that the neighborship is stuck in exstart state. How does the administrator fix this issue?
Configure to match the OSPF interface speed and duplex settings on both routers.
Configure to match the OSPF interface MTU settings on both routers.
Configure to match the OSPF interface unique IP address and subnet mask on both routers.
Configure to match the OSPF interface network types on both routers.

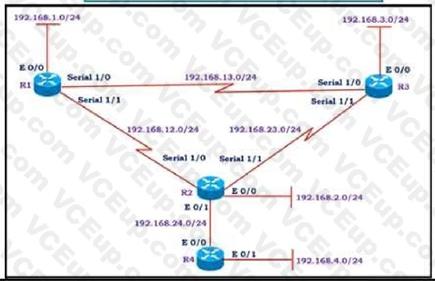

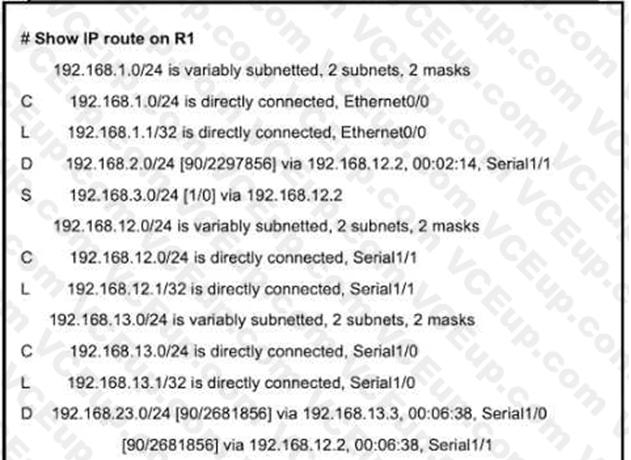

Refer to the exhibit.
All the serial between R1, R2, and R3 have the Same bandwidth. User on the 192.168.1.0/24 network report slow response times while they access resource on network 192.168.3.0/24. When a traceroute is run on the path. It shows that the packet is getting forwarded via R2 to R3 although the link between R1 and R3 is still up. What must the network administrator to fix the slowness?
Change the Administrative Distance of EIGRP to 5.
Add a static route on R1 using the next hop of R3.
Remove the static route on R1.
Redistribute theR1 route to EIGRP
