Cisco 300-410 Practice Test - Questions Answers, Page 10

Add to Whishlist

List of questions

Question 91

Report Export Collapse

Which SNMP verification command shows the encryption and authentication protocols that are used in SNMPV3?

show snmp group

show snmp group

show snmp user

show snmp user

show snmp

show snmp

show snmp view

show snmp view

Suggested answer: B
asked 07/10/2024
Sebastian Gryza
47 questions

Question 92

Report Export Collapse

Which is statement about IPv6 inspection is true?

It teams and secures bindings for stateless autoconfiguration addresses in Layer 3 neighbor tables

It teams and secures bindings for stateless autoconfiguration addresses in Layer 3 neighbor tables

It learns and secures bindings for stateful autoconfiguration addresses in Layer 3 neighbor tables

It learns and secures bindings for stateful autoconfiguration addresses in Layer 3 neighbor tables

It teams and secures bindings for stateful autoconfiguration addresses in Layer 2 neighbor tables

It teams and secures bindings for stateful autoconfiguration addresses in Layer 2 neighbor tables

It team and secures binding for stateless autoconfiguration addresses in Layer 2 neighbor tables.

It team and secures binding for stateless autoconfiguration addresses in Layer 2 neighbor tables.

Suggested answer: D
asked 07/10/2024
saharat pinsaran
49 questions

Question 93

Report Export Collapse

What is the output of the following command: show ip vrf ?

Show's default RD values

Show's default RD values

Displays IP routing table information associated with a VRF

Displays IP routing table information associated with a VRF

Show's routing protocol information associated with a VRF.

Show's routing protocol information associated with a VRF.

Displays the ARP table (static and dynamic entries) in the specified VRF

Displays the ARP table (static and dynamic entries) in the specified VRF

Suggested answer: A
asked 07/10/2024
Patrick Herrington
45 questions

Question 94

Report Export Collapse

Refer to the exhibit.

Cisco 300-410 image Question 94 111040 10072024005413000000

The server for the finance department is not reachable consistently on the 200.30.40.0/24 network and after every second month it gets a new IP address. Which two actions must be taken to resolve this Issue? (Choose two.)

Configure the server to use DHCP on the network with default gateway 200 30.40.100.

Configure the server to use DHCP on the network with default gateway 200 30.40.100.

Configure the server with a static IP address and default gateway.

Configure the server with a static IP address and default gateway.

Configure the router to exclude a server IP address.

Configure the router to exclude a server IP address.

Configure the server to use DHCP on the network with default gateway 200 30.30.100.

Configure the server to use DHCP on the network with default gateway 200 30.30.100.

Configure the router to exclude a server IP address and default gateway.

Configure the router to exclude a server IP address and default gateway.

Suggested answer: B, C
asked 07/10/2024
Maria Gervasi
41 questions

Question 95

Report Export Collapse

Refer to the exhibit.

Cisco 300-410 image Question 95 111041 10072024005413000000

An engineer has configured DMVPN on a spoke router. What is the WAN IP address of another spoke router within the DMVPN network?

172.18.46.2

172.18.46.2

192.168.1.4

192.168.1.4

172.18.16.2

172.18.16.2

192.168.1.1

192.168.1.1

Suggested answer: A
Explanation:

From the output we can see there are 2 NHRP Peers. The first one with the NBMA Address of 172.18.16.2 and the "Attribute" (Attrb) of Static (S) so we can deduce it is the Hub device.

Therefore the second one must be the remaining Spoke device with the attribute of Dynamic (D).

Cisco 300-410 image Question 95 explanation 111041 10072024005413000000

--> S - Static, D - Dynamic, I - Incomplete

N - NATed, L - Local, X - No Socket

# Ent --> Number of NHRP entries with same NBMA peer

NHS Status: E --> Expecting Replies, R --> Responding, W --> Waiting

UpDn Time --> Up or Down Time for a Tunnel

======================================================================== == Interface: Tunnel1, IPv4 NHRP Details Type:Spoke, NHRP Peers:2, # Ent Peer NBMA Addr Peer Tunnel Add State UpDn Tm Attrb -----

--------------- --------------- ----- -------- ----- 1 44.44.44.4 192.168.100.254 UP 00:03:40 S 1 12.12.12.2 192.168.100.2 UP 00:03:20 D

asked 07/10/2024
Sweet Don
42 questions

Question 96

Report Export Collapse

An engineer is configuring a network and needs packets to be forwarded to an interface for any destination address that is not in the routing table. What should be configured to accomplish this task?

set ip next-hop

set ip next-hop

set ip default next-hop

set ip default next-hop

set ip next-hop recursive

set ip next-hop recursive

set ip next-hop verify-availability

set ip next-hop verify-availability

Suggested answer: B
Explanation:

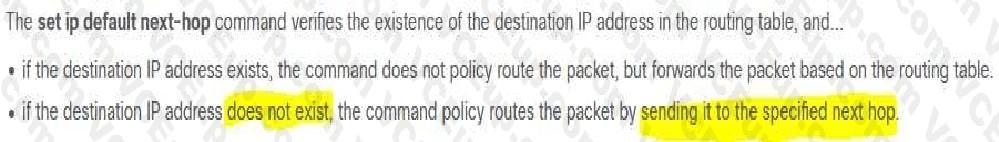

Cisco 300-410 image Question 96 explanation 111042 10072024005413000000

asked 07/10/2024
Muhammad Atif Tasneem
39 questions

Question 97

Report Export Collapse

Which protocol does MPLS use to support traffic engineering?

Tag Distribution Protocol (TDP)

Tag Distribution Protocol (TDP)

Resource Reservation Protocol (RSVP)

Resource Reservation Protocol (RSVP)

Border Gateway Protocol (BGP)

Border Gateway Protocol (BGP)

Label Distribution Protocol (LDP)

Label Distribution Protocol (LDP)

Suggested answer: B
Explanation:

Cisco 300-410 image Question 97 explanation 111043 10072024005413000000

asked 07/10/2024
Norman Camacho
53 questions

Question 98

Report Export Collapse

Refer to the exhibit.

Cisco 300-410 image Question 98 111044 10072024005413000000

A network engineer for AS64512 must remove the inbound and outbound traffic from link A during maintenance without closing the BGP session so that there ............ a backup link over link A toward the ASN. Which BGP configuration on

R1 accomplishes this goal?

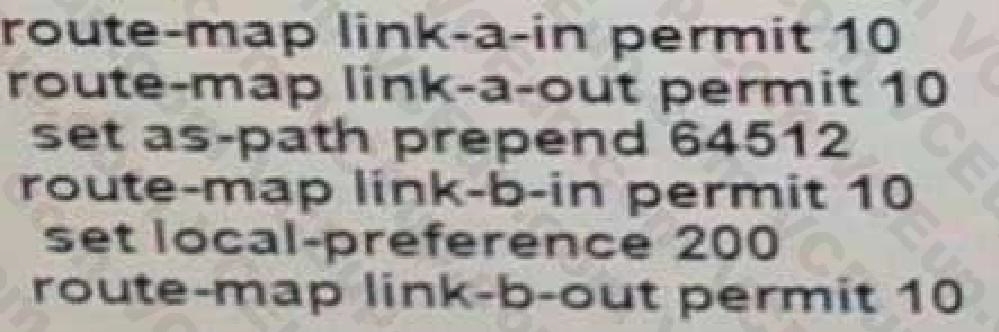

Cisco 300-410 image Question 98 Answer 1 111044 10072024005413000000


Cisco 300-410 image Question 98 Answer 1 111044 10072024005413000000

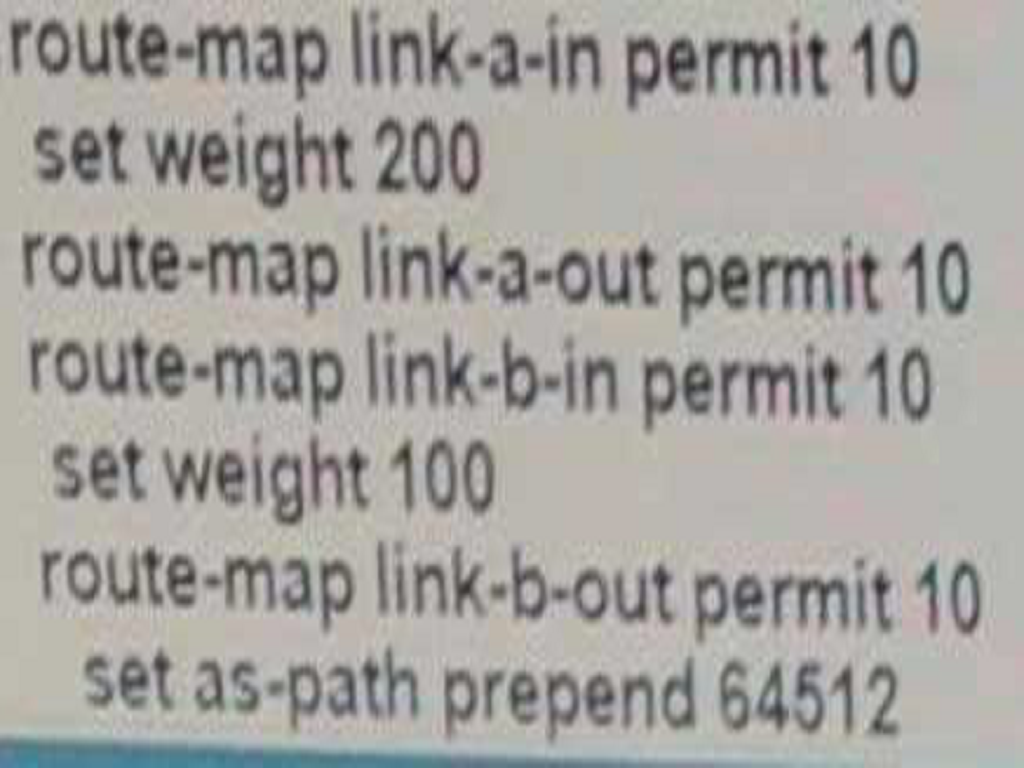

Cisco 300-410 image Question 98 Answer 2 111044 10072024005413000000


Cisco 300-410 image Question 98 Answer 2 111044 10072024005413000000

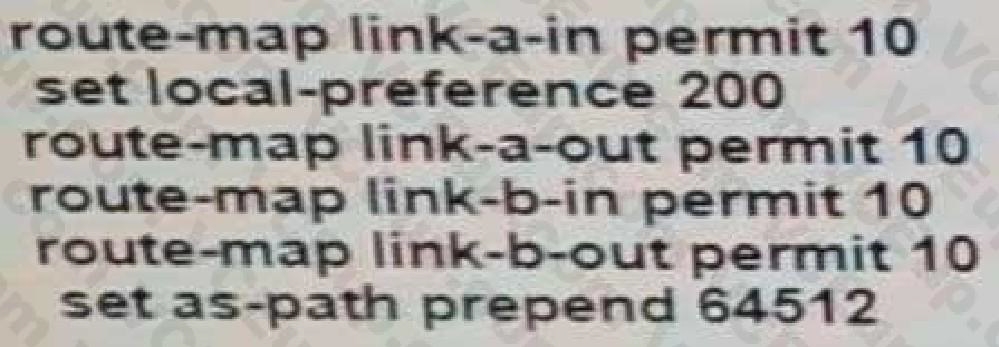

Cisco 300-410 image Question 98 Answer 3 111044 10072024005413000000


Cisco 300-410 image Question 98 Answer 3 111044 10072024005413000000

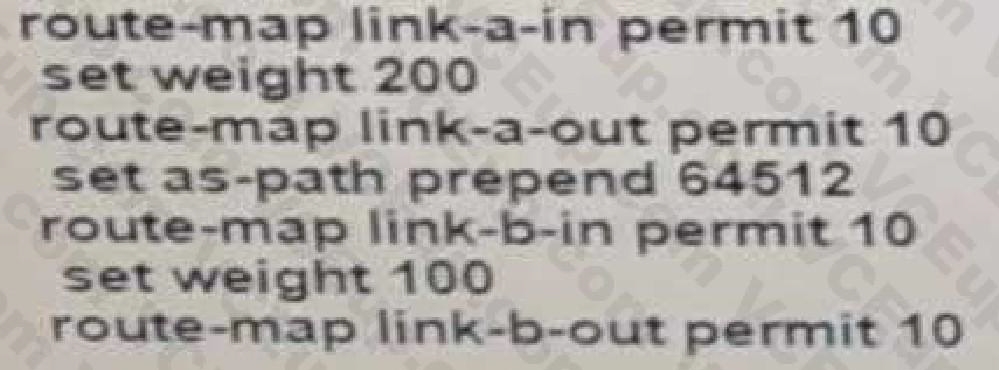

Cisco 300-410 image Question 98 Answer 4 111044 10072024005413000000

Cisco 300-410 image Question 98 Answer 4 111044 10072024005413000000

Suggested answer: C
asked 07/10/2024
EMELINE LE QUENTREC
31 questions

Question 99

Report Export Collapse

Refer to the exhibit.

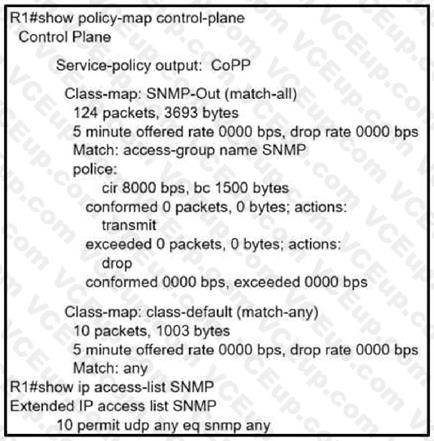

Cisco 300-410 image Question 99 111045 10072024005413000000

R1 is being monitored using SNMP and monitoring devices are getting only partial information. What action should be taken to resolve this issue?

Modify the CoPP policy to increase the configured exceeded limit for SNMP.

Modify the CoPP policy to increase the configured exceeded limit for SNMP.

Modify the access list to include snmptrap.

Modify the access list to include snmptrap.

Modify the CoPP policy to increase the configured CIR limit for SNMP.

Modify the CoPP policy to increase the configured CIR limit for SNMP.

Modify the access list to add a second line to allow udp any any eq snmp

Modify the access list to add a second line to allow udp any any eq snmp

Suggested answer: D
asked 07/10/2024
Vipul Ishan
45 questions

Question 100

Report Export Collapse

Refer to the exhibit.

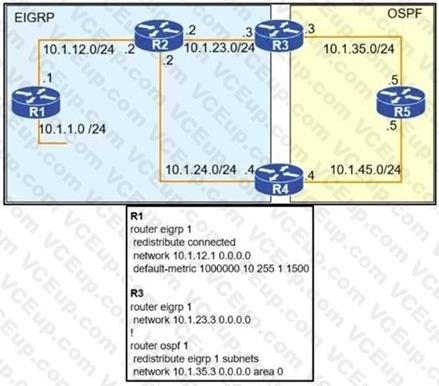

Cisco 300-410 image Question 100 111046 10072024005413000000

To provide reachability to network 10.1.1.0 /24 from R5, the network administrator redistributes EIGRP into OSPF on R3 but notices that R4 is now taking a ........... path through R5 to reach 10.1.1.0/24 network. Which action fixes the issue while keeping the reachability from R5 to 10.1.1.0/24 network?

Change the administrative distance of the external EIGRP to 90.

Change the administrative distance of the external EIGRP to 90.

Apply the outbound distribution list on R5 toward R4 in OSPF.

Apply the outbound distribution list on R5 toward R4 in OSPF.

Change the administrative distance of OSPF to 200 on R5.

Change the administrative distance of OSPF to 200 on R5.

Redistribute OSPF into EIGRP on R4

Redistribute OSPF into EIGRP on R4

Suggested answer: A
asked 07/10/2024
ALLIE SEBRONE MUHAMUBI
45 questions
Total 592 questions
Go to page: of 60
