Refer to the following output:
Router#show ip nhrp detail
10.1.1.2/8 via 10.2.1.2, Tunnel1 created 00:00:12, expire 01:59:47
TypE. dynamic, Flags: authoritative unique nat registered used
NBMA address: 10.12.1.2
What does the authoritative flag mean in regards to the NHRP information?
It was obtained directly from the next-hop server.
Data packets are process switches for this mapping entry.
NHRP mapping is for networks that are local to this router.
The mapping entry was created in response to an NHRP registration request.
The NHRP mapping entry cannot be overwritten.
Which two protocols can cause TCP starvation? (Choose two)
TFTP
SNMP
SMTP
HTTPS
FTP
Which two statements about VRF-Lite configurations are true? (Choose two.)
They support the exchange of MPLS labels
Different customers can have overlapping IP addresses on different VPNs
They support a maximum of 512.000 routes
Each customer has its own dedicated TCAM resources
Each customer has its own private routing table.
They support IS-IS
A network engineer needs to verify IP SLA operations on an interface that shows on indication of excessive traffic.
Which command should the engineer use to complete this action?
show frequency
show track
show reachability
show threshold

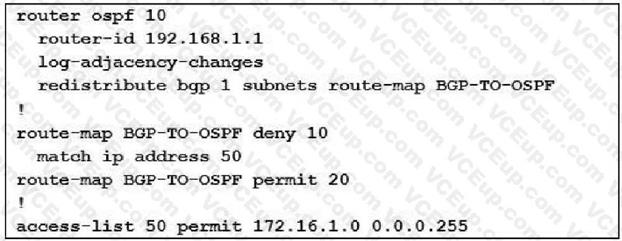

Refer to Exhibit.
Which statement about redistribution from BGP into OSPF process 10 is true?
Network 172.16.1.0/24 is not redistributed into OSPF.
Network 10.10 10.0/24 is not redistributed into OSPF
Network 172.16.1.0/24 is redistributed with administrative distance of 1.
Network 10.10.10.0/24 is redistributed with administrative distance of 20.
Which two statements about redistributing EIGRP into OSPF are true? (Choose two)
The redistributed EIGRP routes appear as type 3 LSAs in the OSPF database
The redistributed EIGRP routes appear as type 5 LSAs in the OSPF database
The administrative distance of the redistributed routes is 170
The redistributed EIGRP routes appear as OSPF external type 1
The redistributed EIGRP routes as placed into an OSPF area whose area ID matches the EIGRP autonomous system number
The redistributed EIGRP routes appear as OSPF external type 2 routes in the routing table

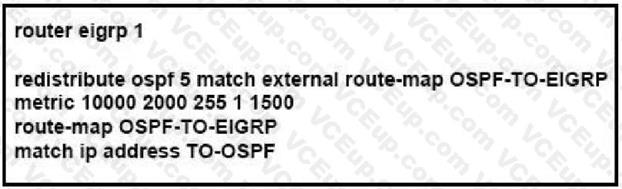

Refer to the exhibit.
Which routes from OSPF process 5 are redistributed into EIGRP?
E1 and E2 subnets matching access list TO-OSPF
E1 and E2 subnets matching prefix list TO-OSPF
only E2 subnets matching access list TO-OSPF
only E1 subnets matching prefix listTO-OS1
Users were moved from the local DHCP server to the remote corporate DHCP server. After the move, none of the users were able to use the network.
Which two issues will prevent this setup from working properly? (Choose two)
Auto-QoS is blocking DHCP traffic.
The DHCP server IP address configuration is missing locally
802.1X is blocking DHCP traffic
The broadcast domain is too large for proper DHCP propagation
The route to the new DHCP server is missing
Which command is used to check IP SLA when an interface is suspected to receive lots of traffic with options?
show track
show threshold
show timer
show delay
