What are two characteristics of IPv6 Source Guard? (Choose two.)
requires IPv6 snooping on Layer 2 access or trunk ports
used in service provider deployments to protect DDoS attacks
requires the user to configure a static binding
requires that validate prefix be enabled
recovers missing binding table entries
How does an MPLS Layer 3 VPN differentiate the IP address space used between each VPN?
by RD
by address family
by MP-BGP
byRT

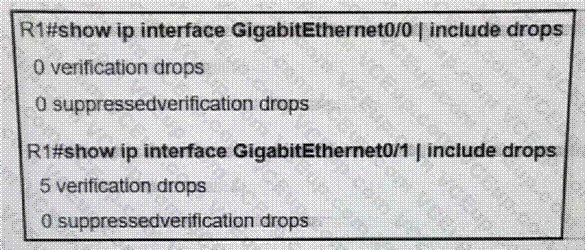

Refer to the exhibit.
R1 is configured with uRPF, and ping to R1 is failing from a source present in the R1 routing table via the GigatxtEthernet 0/0 interface. Which action resolves the issue?
Remove the access list from the interface GigabrtEthernet 0/0
Modify the uRPF mode from strict to loose
Enable Cisco Express Forwarding to ensure that uRPF is functioning correctly
Add a floating static route to the source on R1 to the GigabitEthernet 0/1 interface
Which 0S1 model is used to insert an MPLS label?
between Layer 5 and Layer 6
between Layer 1 and Layer 2
between Layer 3 and Layer 4
between Layer 2 and Layer 3
Which function does LDP provide in an MPLS topology?
It enables a MPLS topology to connect multiple VPNs to P routers.
It provides hop-by-hop forwarding in an MPLS topology for LSRs.
It exchanges routes for MPLS VPNs across different VRFs.
It provides a means for LSRs to exchange IP routes.

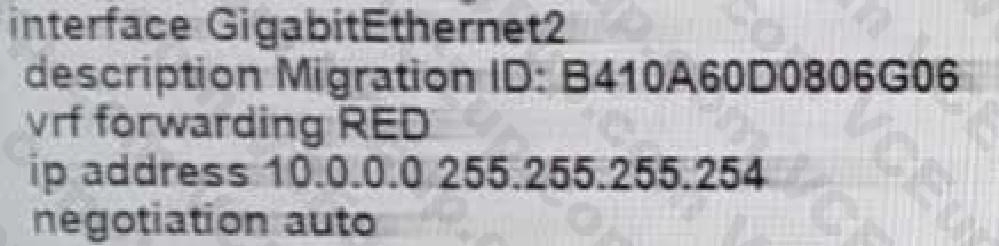

An engineer is implementing a coordinated change with a server team As part of the change, the engineer must configure interlace GigabitEthernet2 in an existing VRF "RED" then move the interface to an existing VRF "BLUE" when the server team is ready. The engineer configured interface GigabitEthemet2 in VRF "RED"
Which configuration completes the change?
interface GigabitEthernet2 no ip address vrf forwarding BLUE
interface GigabitEthernet2 no vrf forwarding RED vrf forwarding BLUE ip address 10.0.0.0 255.255.255.254
interface GigabitEthernet2 no vrf forwarding RED vrf forwarding BLUE
interface GigabitEthernet2 no ip address ip address 10.0.0.0 255.255.255.254 vrf forwarding BLUE

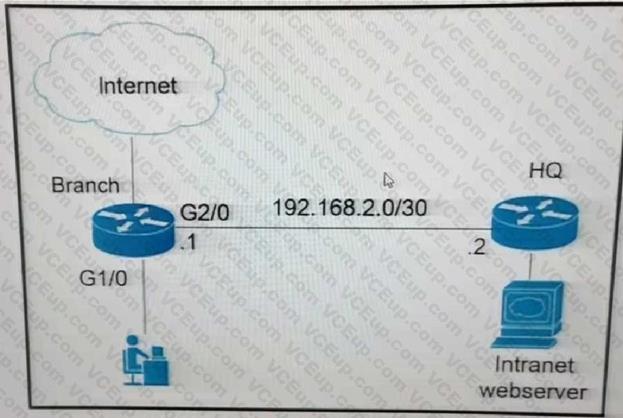

Refer to the exhibit.
The branch router is configured with a default route toward the internet and has no routes configured for the HQ site that is connected through interface G2/0. The HQ router is fully configured and does not require changes. Which configuration on the branch router makes the intranet website (TCP port 80) available to the branch office users?

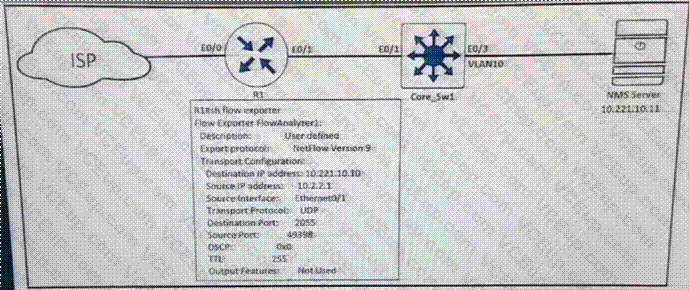

Refer to the exhibit.
An engineer configured NetFlow on R1, but the NMS server cannot see the flow from R1. Which configuration resolves the issue?
flow monitor Flowmonitor1 destination 10.221.10.11
flow exporter FlowAnalyzer1 destination 10.221.10.11
interface Ethernet0/1 flow-destination 10.221.10.11
interface Ethernet0/0 flow-destination 10.221.10.11

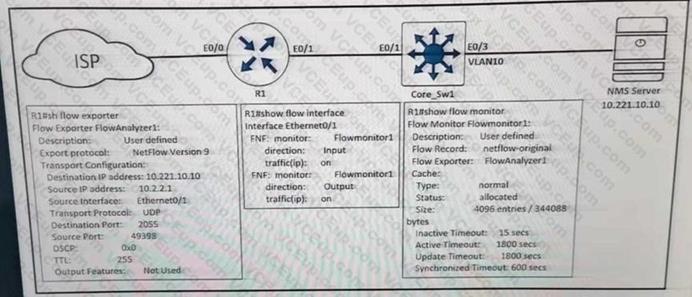

Refer to the exhibit.
An engineer configured NetFlow on R1, but the NMS server cannot see the flow from ethernet 0/0 of R1. Which configuration resolves the issue?
flow monitor Flowmonitor1 source Ethernet0/0
interface Ethernet0/1 ip flow monitor Flowmonitor1 input ip flow monitor Flowmonitor1 output
interface Ethernet0/0 ip flow monitor Flowmonitor1 input ip flow monitor Flowmonitor1 output
flow exporter FlowAnalyzer1 source Ethernet0/0

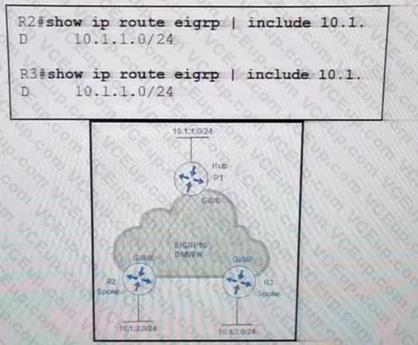

Refer to the exhibit.
An engineer configures DMVPN and receives the hub location prefix of 10.1.1.0724 on R2 and R3 The R3 prefix of 10 1.3.0/24 is not received on R2. and the R2 prefix 10.1,2.0/24 is not received on R3.
Which action reserves the issue?
Split horizon prevents the routes from being advertised between spoke routers it should be disabled with the command no ip split-horizon eigrp 10 on the tunnel interface of R1
There is no spoke-to-spoke connection DMVPN configuration should be modified to enable a tunnel connection between R2 and R3 and neighbor relationship confirmed by use of the show ip eigrp neighbor command
Split horizon prevents the routes from being advertised between spoke routers it should be disabled with the no ip split-horizon eigrp 10 command on the Gi0/0 interface of R1.
There is no spoke-to-spoke connection DMVPN configuration should be modified with a manual neighbor relationship configured between R2 and R3 and confirmed bb use of the show ip eigrp neighbor command.
