Which two Cisco SD-WAN components exchange OMP information?
vAnaiytlcs
vSmart
WAN Edge
vBond
vManage
Refer to the exhibit.

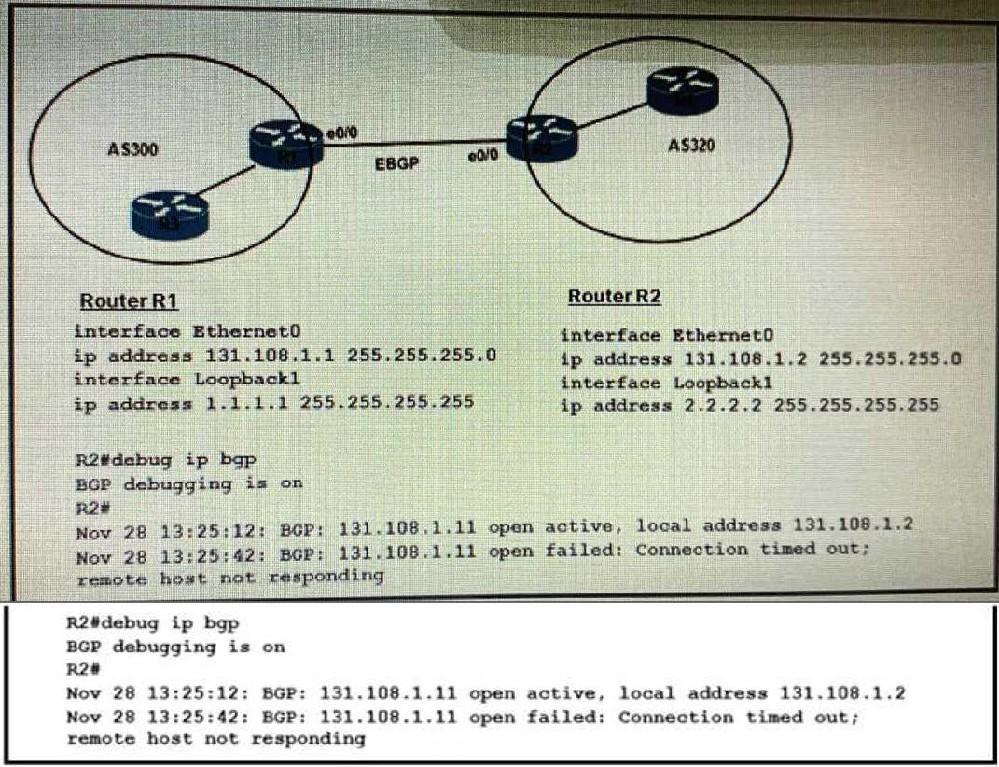

Refer to the exhibit. Which configuration must be implemented to establish EBGP peering between R1 and R2?
Option A
Option B
Option C
Option D

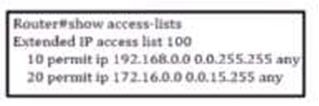

Refer to the exhibit.

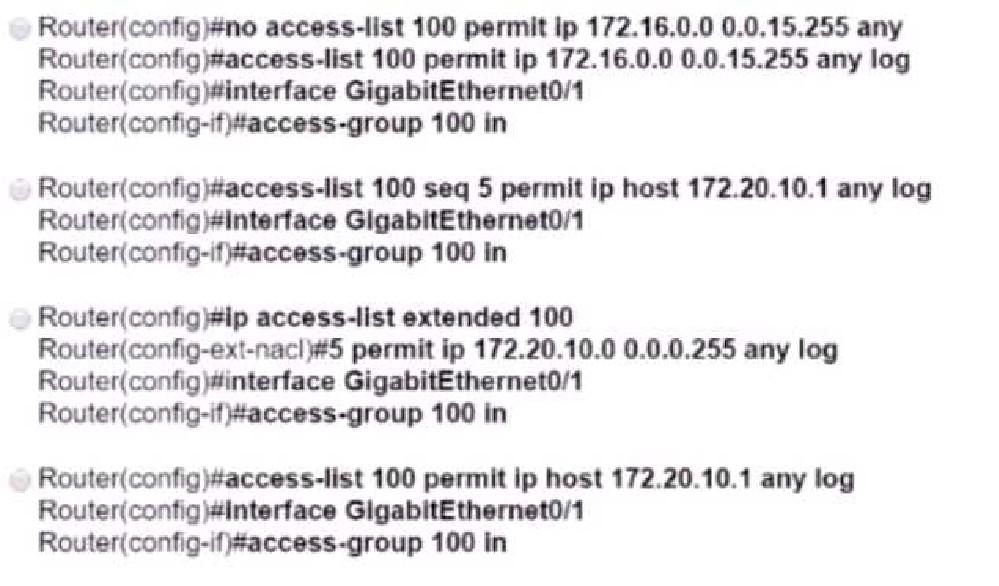

Which command set must be added to permit and log all traffic that comes from 172.20.10.1 in interface GigabitEthernet0/1 without impacting the functionality of the access list?
Option A
Option B
Option C
Option D
Which option must be used to support a WLC with an IPv6 management address and 100 Cisco Aironet 2800 Series access points that will use DHCP to register?
43
52
60
82
An engineer is configuring Local WebAuth on a Cisco Wireless LAN Controller. According to RFC 5737, WHICH VIRTUAL IP address must be used in this configuration?
192.0.2.1
172.20.10.1
1.1.1.1
192.168.0.1
By default, which virtual MAC address does HSRP group 32 use?
00:5e:0c:07:ac:20
04:18:20:83:2e:32
05:5e:5c:ac:0c:32
00:00:0c:07:ac:20
What does the number in an NTP stratum level represent?
The number of hops it takes to reach the master time server.
The number of hops it takes to reach the authoritative time source.
The amount of offset between the device clock and true time.
The amount of drift between the device clock and true time.

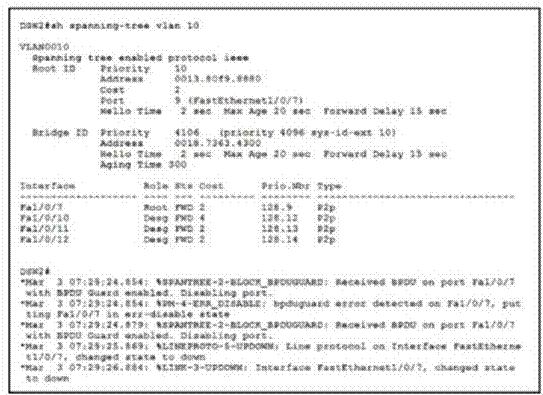

Refer to the exhibit.
An engineer entered the command no spanning-tree bpduguard enable on interface Fa 1/0/7. What is the effect of this command on Fa 1/0/7?
It remains in err-disabled state until the shutdown/no shutdown command is entered in the interface configuration mode.
It remains in err-disabled state until the errdisable recovery cause failed-port-state command is entered in the global configuration mode.
It remains in err-disabled state until the no shutdown command is entered in the interface configuration mode.
It remains in err-disabled state until the spanning-tree portfast bpduguard disable command is entered in the interface configuration mode.
Refer to the exhibit.

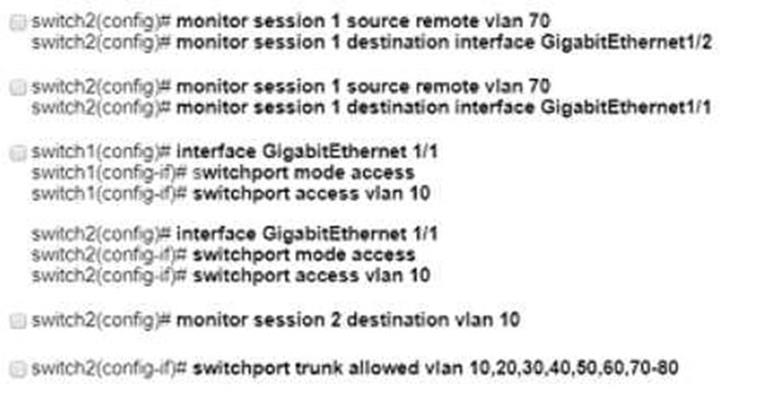

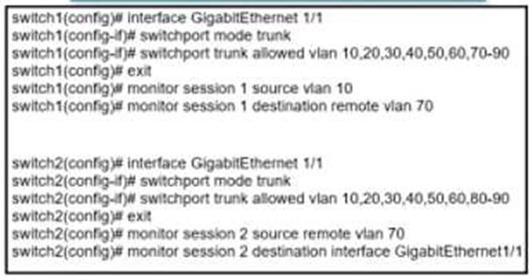

Refer to the exhibit. A network administrator configured RSPAN to troubleshoot an issue between switch1 and switch2. The switches are connected using interface GigabitEthernet 1/1. An external packet capture device is connected is switch2 interface GigabitEthernet 1/2. Which two commands must be added to complete this configuration? (Choose two)
Option A
Option B
Option C
Option D
Option E
How does SSO work with HSRP to minimize network disruptions?
It enables HSRP to elect another switch in the group as the active HSRP switch.
It ensures fast failover in the case of link failure.
It enables data forwarding along known routes following a switchover, white the routing protocol reconverges.
It enables HSRP to failover to the standby RP on the same device.
