Refer to the exhibit.

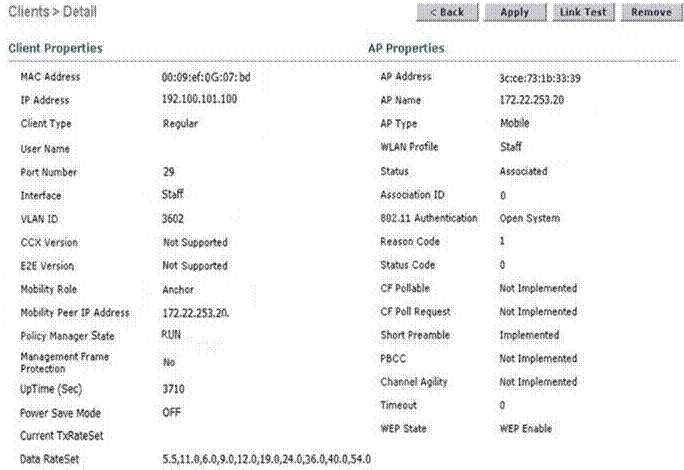

The WLC administrator sees that the controller to which a roaming client associates has Mobility Role Anchor configured under Clients > Detail. Which type of roaming is supported?
Indirect
Layer 3 intercontroller
Layer 2 intercontroller
Intracontroller
What is one characteristic of VXLAN?
It supports a maximum of 4096 VLANs.
It supports multitenant segments.
It uses STP to prevent loops in the underlay network.
It uses the Layer 2 header to transfer packets through the network underlay.
In which two ways does the routing protocol OSPF differ from EIGRP? (Choose two.)
OSPF supports an unlimited number of hops. EIGRP supports a maximum of 255 hops.
OSPF provides shorter convergence time than EIGRP.
OSPF is distance vector protocol. EIGRP is a link-state protocol.
OSPF supports only equal-cost load balancing. EIGRP supports unequal-cost load balancing.
OSPF supports unequal-cost load balancing. EIGRP supports only equal-cost load balancing.
Refer to the exhibit.

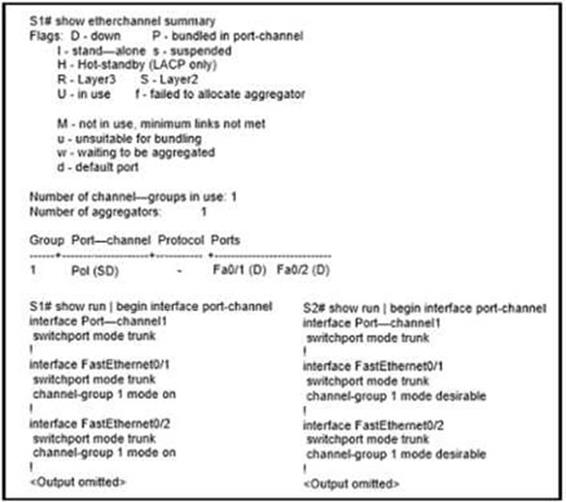

Refer to the exhibit. Traffic is not passing between SW1 and SW2. Which action fixes the issue?
Configure LACP mode on S1 to passive.
Configure switch port mode to ISL on S2.
Configure PAgP mode on S1 to desirable.
Configure LACP mode on S1 to active.
Which tool is used in Cisco DNA Center to build generic configurations that are able to be applied on device with similar network settings?
Command Runner
Template Editor
Application Policies
Authentication Template
Which router is elected the IGMP Querier when more than one router is in the same LAN segment?
The router with the shortest uptime
The router with the lowest IP address
The router with the highest IP address
The router with the longest uptime
An engineer must configure a new WLAN that allows a user to enter a passphrase and provides forward secrecy as a security measure. Which Layer 2 WLAN configuration is required on the Cisco WLC?
WPA2 Personal
WPA3 Enterprise
WPA3 Personal
WPA2 Enterprise
In Cisco DNA Center, what is the integration API?
southbound consumer-facing RESTful API. which enables network discovery and configuration management
westbound interface, which allows the exchange of data to be used by ITSM. IPAM and reporting
an interface between the controller and the network devices, which enables network discovery and configuration management
northbound consumer-facing RESTful API, which enables network discovery and configuration management
A customer wants to connect a device to an autonomous Cisco AP configured as a WGB. The WGB is configured properly: however, it fails to associate to a CAPWAP- enabled AP. Which change must be applied in the advanced WLAN settings to resolve this issue?
Enable Aironet IE.
Enable passive client.
Disable AAA override.
Disable FlexConnect local switching.
Refer to the exhibit.

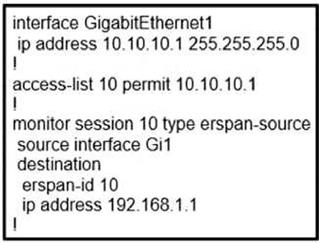

Refer to the exhibit. Which command filters the ERSPAN session packets only to interface GigabitEthernet1?
source ip 10.10.10.1
source interface gigabitethernet1 ip 10.10.10.1
filter access-group 10
destination ip 10.10.10.1
